5362256 Fuel Transfer Pump ISX Original Cummins QSX QSZ13

5362256 4935095 Fuel Transfer Pump ISX Original Cummins QSX QSZ13

Name: 5362256 4935095 Fuel Transfer Pump ISX Original Cummins QSX QSZ13
Brand: Cummins
Rating: 5.0 (77 reviews)

Cummins ISX QSX QSZ13 Fuel Transfer Pump 5362256 4935095

Model:
ISX QSX QSZ13
Brand:
Cummins
Code:
5362256 4935095
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins ISX QSX QSZ13 Fuel Transfer Pump 5362256 4935095 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, QTR TR101, R2.8 CM2220 R101B, X11 CM2670 X126B, X12 CM2350 X119B, X12 CM2670 X121B, X12 CM2670 X136B, X13 CM2670 X122B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X130C, X15 CM2450 X124B, Z14 CM2670 Z103B

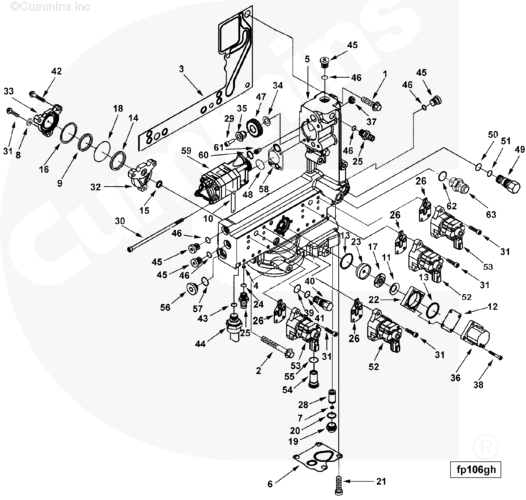

4935095

Ref No	Part Number	Part Description	Required	Remarks
	FP10229-01	Fuel Pump
1	3896408	Hexagon Flange Head Cap Screw	2	M10 x 1.50 x 80
2	3903464	Hexagon Flange Head Cap Screw	3	M10 X 1.50 X 40.
3	4076587	Fuel Control Housing Gasket	1
4	4076599	Orifice Plug	1
5	4954472	Support Gasket	1
6	4954473	Fuel Pump Gasket	1
	4935095	Fuel Transfer Pump	1
	4077087	Fuel Control Module	1
7	70700	Compression Spring	1
8	70704	Plain Washer	2	1/4 in.
9	100099	Rectangular Ring Seal	2
10	4088064	Identification Tag	1
11	129768	Valve Spring	1
12	129839	Shut-Off Valve Shield	1
13	129888	Rectangular Ring Seal	2
14	139988	Rectangular Ring Seal	2
15	151900	Rectangular Ring Seal	2
16	160514	Plain Washer	2	1 11/16 in.
17	196057	Valve Disc	1
18	202897	Fuel Pump Damper Diaphragm	2
19	3014575	Fuel Pump Filter Cap	1
20	3021123	O-Ring Seal	1
21	3025806	Socket Head Cap Screw	3	M8 X 1.25 X 30.
22	4088863	Actuator Housing	1
23	4088274	Actuator Disc	1
	3042619	Coupling Nipple	2
24	3037537	O-Ring Seal	1
25	3042620	Coupling Nipple	1
26	4902789	Actuator Gasket	4
27				Item not in this version.
28	3090769	Filter Screen	1
29	3330019	Socket Head Cap Screw	1	M8 X 1.25 X 25
30	3330022	Socket Head Cap Screw	4	M6 X 1.00 X 140
31	4076472	Socket Head Cap Screw	14
32	3330651	Fuel Pump Damper Cover	2
33	3330652	Fuel Pump Damper Body	2
34	3330719	Thrust Bearing Plate	1
35	3330720	Idler Shaft	1
36	3098354	Solenoid	1	Reference 4061693 FSOV Kit
37	3331275	Shaft Retainer	1
38	4076471	Socket Head Cap Screw	4	M5 X 0.80 X 30
	3348322	Pressure Regulator Valve	1
39	3867640	O-Ring Seal	1
40	3348323	Pressure Regulator Valve	1
41	3348703	O-Ring Seal	1
42	4088450	Hexagon Flange Head Cap Screw	4
	3408377	Pressure Sensor	1	Fuel.
43	3330202	O-Ring Seal	1
44	3408378	Pressure Sensor	1
	4088806	Threaded Plug	6
45	4088802	Threaded Plug	1
46	3678912	O-Ring Seal	1	M14
47	3867093	Idler Gear	1
	3330639	Bushing	1
	3867094	Idler Gear	1
48	3867481	O-Ring Seal	1
	4001926	Pressure Regulator Valve	1
49	4001925	Pressure Regulator Valve	1
50	3330478	O-Ring Seal	1
51	3867641	O-Ring Seal	1
52	4902905	Timing Actuator	2	Serviced As 4089981.
53	4902904	Metering Actuator	2	Serviced As 4089980.
	4010077	Check Valve	2
54	4010078	Check Valve	1
55	3089240	O-Ring Seal	1	M22
	4088807	Threaded Plug	3
56	4088803	Threaded Plug	1
57	3678786	O-Ring Seal	1	M18
58	4088848	Gear Fuel Pump	1	Serviced As 4089431.
	4076593	Check Valve	1
59	3678925	O-Ring Seal	1	M10.
60	4076594	Check Valve	1
61	4076572	Fuel Control Housing	1
	4076590	Male Union	1
62	3678846	O-Ring Seal	1
63	4076659	Male Union	1
	4025255	Kit , Ifsm Service / Repair
	S 2286	Drive Screw	2	3/16 in.
	105375	Nameplate	1
	3042543	O-Ring Seal	1
	3044297	O-Ring Seal	13
	3045986	O-Ring Seal	4
	3084539	O-Ring Seal	1
	3089392	O-Ring Seal	1
	3347832	Grommet Seal	4
	3679139	O-Ring Seal	1
	3918190	Sealing Washer	2	10mm.
	3922794	O-Ring Seal	2
	4062005	Support Gasket	1
	4076585	Cover Plate	1
	4076586	Fuel Pump Gasket	1
	4076597	Fuel Control Housing	1
	4089980	Actuator Kit		Recon Equivalent 4089980 NX
	4089981	Actuator Kit		Recon equivalent 4089981 NX
	4954670	Pan Head Cap Screw	3	M6 X 1.00

SHIPMENT CHARACTERISTICS
Length * Width * Height	19cm15cm14cm
Weight	1.22KG
