5321617 5357028 4955916 4049890 4049891 5357022 5357029 QSK60-G Heat Exchanger HE851 Holset Turbocharger Original Cummins

  • 5321617 5357028 4955916 4049890 4049891 5357022 5357029

  • Cummins

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Supersession Part Number:
5321617
5357028
4955916
4049890
4049891
5357022
5357029
weight(kg):
122.75
size(cm):
16cm*15.625cm*15.75cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

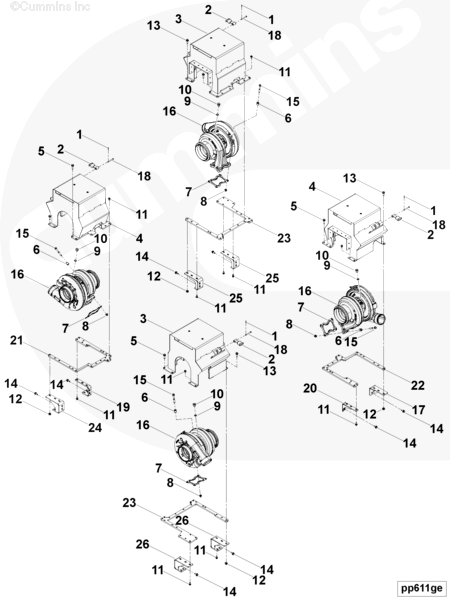

Cummins Electronic Parts Catalog - Option Detail
Engines Cummins Engine Parts QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

5321617

Cart Part Number Part Description Required
Remarks

PP6903-02 Turbocharger

Turbocharger
1 S 505 Cotter Pin 4

2 2870720 Cover Latch 4

3 2880865 Heat Shield 2

4 2880873 Heat Shield 2

5 3089016 Hexagon Flange Head Cap Screw 18 M10 X 1.50 X 35.
6 3089321 Mounting Spacer 16

7 3331924 Turbocharger Gasket 4

8 3636059 Lock Nut 16


3678873 Threaded Plug 8 M18 X 1.5 X 19.5
9 3678786 O-Ring Seal 1 M18
10 3678791 Threaded Plug 1
M18 X 1.5 X 19.5
11 3900629 Hexagon Flange Head Cap Screw 34 M8 X 1.25 X 16
12 3902662 Hexagon Flange Nut 8 M10 x 1.50
13 3903112 Hexagon Flange Head Cap Screw 8 M10 X 1.50 X 30.
14 3903990 Hexagon Flange Head Cap Screw 16 M10 X 1.50 X 20.
15 4000837 Hexagon Flange Head Cap Screw 16


4049891 Turbocharger 2

16 4049890 Turbocharger 1


4049892 Turbocharger 2

16 4049890 Turbocharger 1

17 4970830 Heat Shield Bracket 1

18 4916138 Clevis Pin 4

19 4967221 Heat Shield Bracket 1

20 4967224 Heat Shield Bracket 1

21 4967294 Heat Shield Bracket 1

22 4967295 Heat Shield Bracket 1

23 4970818 Heat Shield Bracket 2

24 4970821 Heat Shield Bracket 1

25 4970824 Heat Shield Bracket 2

26 4970827 Heat Shield Bracket 2


5321617 Turbocharger Kit A/R


4033041 Aftermarket Turbocharger 1


   4049890 Turbocharger 1


4032530 Turbocharger Gasket Kit 1


   3081824 Turbocharger Gasket 1


   3089955 Connection Gasket 1


   3627695 O-Ring Seal 2


   3678786 O-Ring Seal 4


   3679139 O-Ring Seal 1

Additional Parts are also available. Check with Qingbang Online Service.
