ISB QSB
Cummins
5284996
1-7 days
Genuine Original package or Ne
6 Months
| Availability: | |
|---|---|
| Quantity: | |
| PDF Export | |
| Electronic Parts Catalog - Option Detail | ||||
| Cummins Engines | Cummins Engine Parts 4B3.9, 6A3.4, 6B5.9, B GAS INTERNATIONAL CM556, B4.5, B4.5 CM2350 B129B, B4.5 CM2350 B146C, B4.5 CM2350 B147B, B4.5 RGT, B4.5S, B5.9 G, B5.9 GAS PLUS CM556, B5.9 LPG, B5.9 LPG PLUS CM556, B6.7 CM2350 B121B, B6.7 CM2350 B135B, B6.7 CM2350 B136C, B6.7 CM2350 B148B, B6.7 G CMOH6.0 B125, B6.7N CM2380 B150B, B6.7S, F3.8 CM2350 F120B, F3.8 CM2350 F128C, F3.8 CM2350 F132B, F3.8 F102, G3.9, G5.9, G5.9 CM558, ISB (CHRYSLER), ISB CM2150, ISB CM2150 E, ISB CM550, ISB CM850, ISB/ISD4.5 CM2150 B119, ISB/ISD4.5 CM2150 SN, ISB/ISD6.7 CM2150 B120, ISB/ISD6.7 CM2150 SN, ISB/ISD6.7 CM2880 B126, ISB3.9 CM2220 B107, ISB4.5 CM2150, ISB5.9G CM2180, ISB6.7 2010 DCX PICKUP, ISB6.7 2013 DCX CHASSIS CAB, ISB6.7 CM2150 SQ, ISB6.7 CM2250, ISB6.7 CM2350 B101, ISB6.7 CM2350 B103, ISB6.7 CM2350 B142, ISB6.7 CM2670 B153B, ISB6.7 G CM2180 B118, ISBE CM2150, ISBE CM800, ISBE2/ISBE3 CM850, ISBE4 CM850, ISD4.5 CM2150, ISD6.7 CM2880 D101, ISF2.8 CM2220, ISF2.8 CM2220 AN, ISF2.8 CM2220 EC, ISF2.8 CM2220 ECF2, ISF2.8 CM2220 F101, ISF2.8 CM2220 F117, ISF2.8 CM2220 F122, ISF2.8 CM2220 F126, ISF2.8 CM2220 F129, ISF2.8 CM2220 IAN, ISF3.8 CM2220, ISF3.8 CM2220 AN, ISF3.8 CM2220 F103, ISF3.8 CM2220 F110, ISF3.8 CM2220 F116, ISF3.8 CM2220 F134B, ISF3.8 CM2220 IAN, ISF3.8 CM2350 F109, ISF4.5 CM2220 F123, ISG11 CM2880 G106, ISG11 CM2880 G108, ISG12 CM2880 G107, ISG12 CM2880 G109, ISG12 G CMOH6.0 G111, QSB3.9 30 CM550, QSB3.9 CM2880 B138, QSB4.5 30 CM550, QSB4.5 CM2150 B108, QSB4.5 CM2250 B131, QSB4.5 CM2250 EC, QSB4.5 CM2350 B106, QSB4.5 CM2350 B122 | |||
CC9658 Compressor Coolant Plumbing
compressor type: Knorr bremse 2 w630 ress
Engine Cylinders: 6 tubing
material: Nylon/steel
Compressor water inlet port location
Centerline of engine (mm): 300.1
Centerline of crank (mm): 266.0
front face of block (mm): 526.4
Compressor water outlet port location
Centerline of engine (mm): 325.8
Centerline of crank (mm): 367.7
front face of block (mm): 724.4
Water supply (block) port location
Centerline of engine (mm):109.5
Centerline of crank (mm): 240
front face of block (mm): 376.5
Unique Characteristics: No
auxillary coolant return port based on cc 9560.
| Cart | Ref No | Part Number | Part Description | Required | Remarks |
| CC9658 | Compressor Coolant Plumbing | CPR Coolant Plumbing...(More) | |||
| 1 | 3008469 | Pipe Plug | 1 | 3/4 NPT | |
| 5303470 | Quick Disconnect Connector | 1 | |||
| 2 | 5297858 | Quick Disconnect Connector | 1 | ||
| 3 | 3679139 | O-Ring Seal | 1 | ||
| 3287274 | Quick Disconnect Connector | 2 | |||
| 4 | 3287270 | Quick Disconnect Connector | 1 | ||
| 5 | 3678786 | O-Ring Seal | 1 | M18 | |
| 6 | 3906216 | Hexagon Flange Nut | 1 | M6 X 1.00. | |
| 7 | 4930304 | Hose Clamp | 2 | 23 mm Clamp. | |

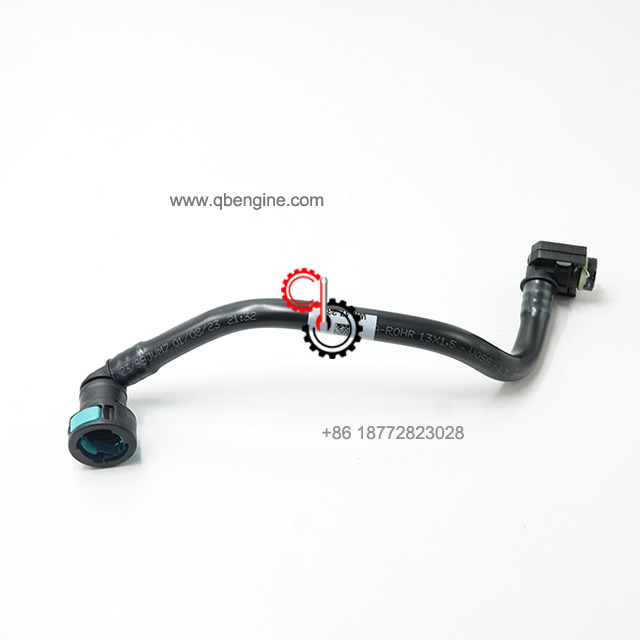

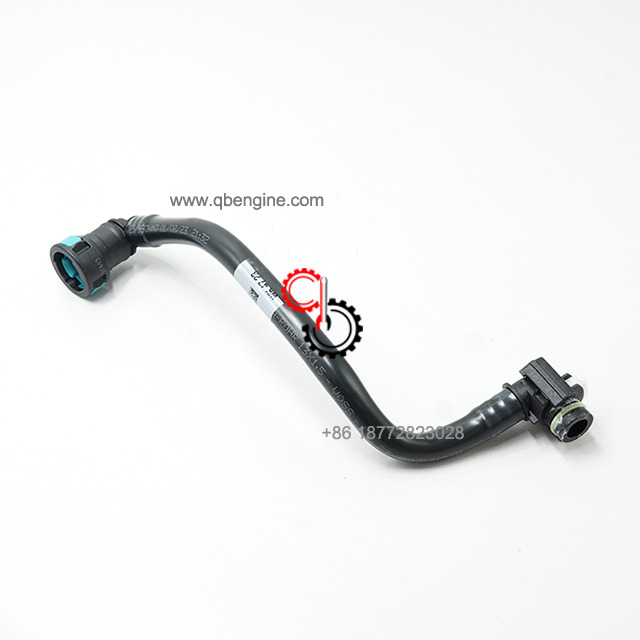

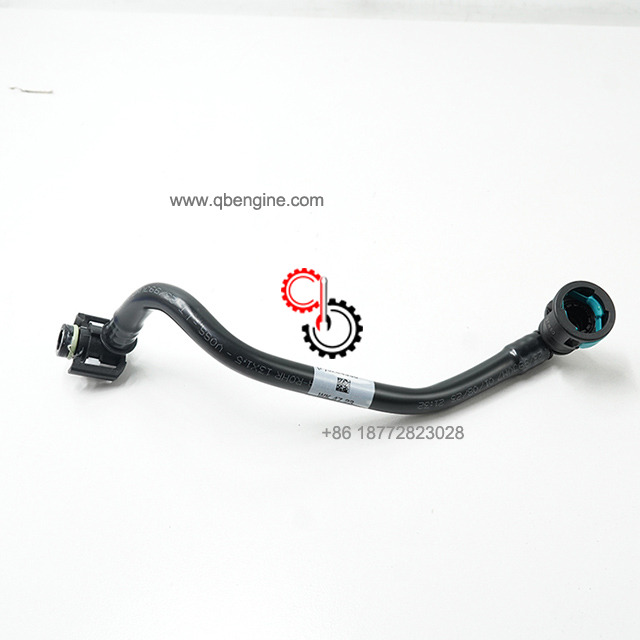

| 8 | 5284996 | Compressor Water Inlet Tube | 1 | ||
| 9 | 5285013 | Plain Hose | 1 | ||
| 10 | 5317805 | Compressor Water Outlet Tube | 1 | ||
| 11 | 5294136 | Compressor Water Outlet Tube | 1 |
SHIPMENT CHARACTERISTICS | |
| Length * Width * Height | 12cm*7cm*28cm |
| Weight | 0.04kg |
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
