Cummins / Cummins Parts / Cylinder Head, Engine Block, Camshaft, Crankshaft / 5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block

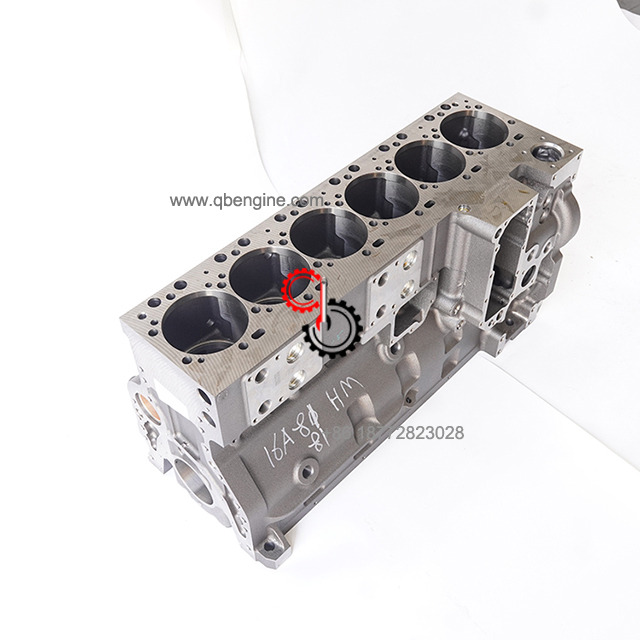

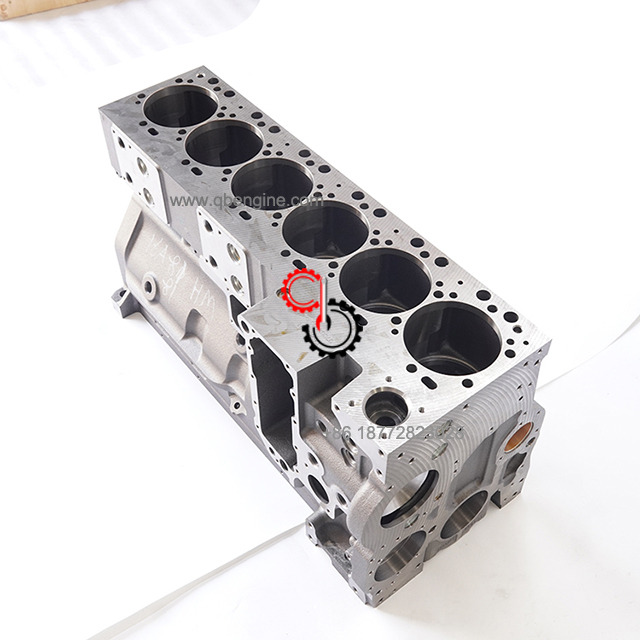

5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block
5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block 5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block
5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block 5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block
5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block 5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block

loading

5267491 5586879 Genuine Cummins Cast Iron ISL9.5 Engine Cylinder Block

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins ISL9.5 Cylinder Block 5267491 5586879

  • ISL9.5

  • cummins

  • 5267491 5586879

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISL9.5 Cylinder Block 5267491 5586879 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

5267491

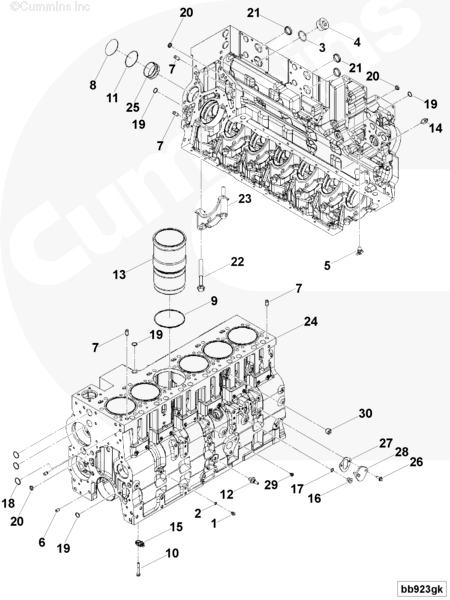

Ref No Part Number Part Description Required Remarks

BB9626-01 Cylinder Block
Cylinder Block

3678923 Threaded Plug 4 M10 X 1.00 X 13.5.
1 3678924 Threaded Plug 1 M10 X 1.00 X 13.5.
2 3678925 O-Ring Seal 1 M10.

3089023 Threaded Plug 1 M42 X 2.00 X 19.5.
3 3089019 O-Ring Seal 1 M42.
4 3089021 Threaded Plug 1 M42 X 2.00 X 19.5.
5 S 923 E Draincock 1
6 3900257 Pin Dowel 2
7 3901846 Pin Dowel 4
8 3901969 Expansion Plug 1
9 5267506 Rectangular Ring Seal 6
10 3909025 Hexagon Flange Head Cap Screw 6 M8 X 1.25 X 55.
11 3926048 O-Ring Seal 1
12 3936352 Studded Flange Cap Screw 1
13 5318477 Cylinder Liner 6
14 3966286 Studded Hexagon Cap Screw 1
15 4987915 Piston Cooling Nozzle 6

3678921 Threaded Plug 1 M14 X 1.5 X 16.
16 3678922 Threaded Plug 1 M14 X 1.5 X 16.
17 3678912 O-Ring Seal 1 M14.

5267490 Cylinder Block 1

5267491 Cylinder Block 1
18 143066 Expansion Plug 3
19 3004258 Expansion Plug 4
20 3900956 Expansion Plug 3 17.73 mm.
21 3905401 Expansion Plug 3
22 3970810 Hexagon Flange Head Cap Screw 14 M14 X 2.00 X 135.
23 5309323 Main Bearing Cap 7
24 5267492 Cylinder Block 1
25 5283368 Bushing 7
26 3900630 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 20.
27 3939258 Cover Plate Gasket 1
28 3948083 Cover Plate 1
29 4944725 Tappet Guide 12
30 3008468 Pipe Plug 1 1/2 NPT.

4376406 Liner Kit A/R

SHIPMENT CHARACTERISTICS
Length * Width * Height 95cm*45.5cm*57cm
Weight 220KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
