Fuel Inlet Fitting Thread Size: Elbow with male 1 1/16-12 37 degree flare
Fuel Inlet Fitting Location:
From engine centerline (mm): 567.55 (22.34in)
from crankc/l (mm): -57.93 (-2.28in.)
from front face of block (mm): -279.06 (-11.0in.).
Cart
Ref No
Part Number
Part Description
Required
Remarks
FP6894
Fuel Pump
Fuel pump...(More)
1
108330
Plain Washer
2
3/8 in.
2
3093936
Hexagon Flange Head Cap Screw
2
M10 X 1.50 X 90
3
3171713
Hexagon Flange Head Cap Screw
8
M12 X 1.75 X 50.
3171722
Male Union
1
4
3085709
O-Ring Seal
1
5
3171723
Male Union
1
6
3678606
O-Ring Seal
1
M27 X 2.00
3331818
Male Union Elbow
1
7
3331819
Male Union Elbow
1
3678611
Threaded Plug
1
8
3678605
Threaded Plug
1
3678921
Threaded Plug
1
M14 X 1.5 X 16
9
3678912
O-Ring Seal
1
M14
10
3678922
Threaded Plug
1
M14 X 1.5 X 16
11
3820513
Hexagon Flange Head Cap Screw
1
M14 x 1.50 x 100.
12
3903464
Hexagon Flange Head Cap Screw
2
M10 X 1.50 X 40.
13
3937692
Hexagon Flange Head Cap Screw
6
M12 x 1.75 x 60
14
4916449
O-Ring Seal
1
15
4916450
O-Ring Seal
1
4924683
Male Union Tee
1
3085709
O-Ring Seal
2
16
4924682
Male Union Tee
1
17
4924760
Fuel Pump Brace
1
18
4924761
Fuel Pump Brace
1
4927539
Male Union Elbow
1
19
4927538
Male Union Elbow
1
20
4935491
Protective Cover
4
21
4951883
Fuel Pump Brace
1
22
4964144
Fuel Manifold
1
23
4964216
Fuel Injection Pump
1
24
4970261
Flexible Hose
1
25
4970297
Flexible Hose
1
SHIPMENT CHARACTERISTICS
Length * Width * Height
34cm*4cm*4cm
Weight
0.642KG
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

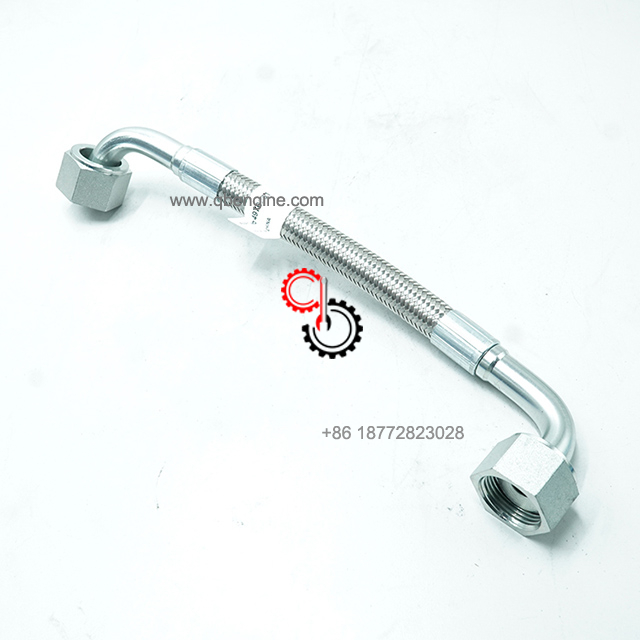

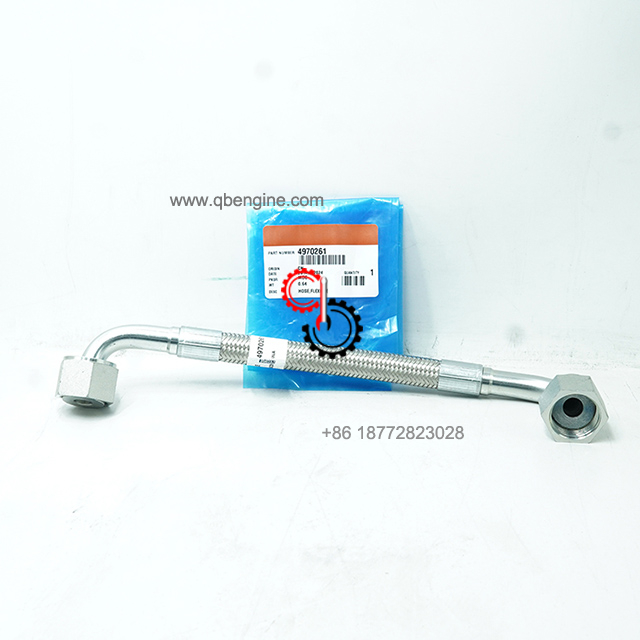

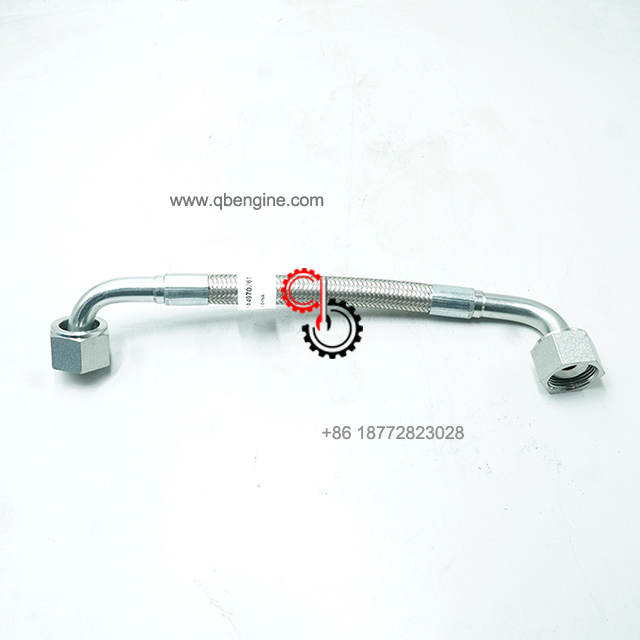

Supersessions Part Number 4970261 4964155 Cummins Flexible Hose details
Fuel Inlet Fitting Thread Size: Elbow with male 1 1/16-12 37 degree flare
Fuel Inlet Fitting Location:
From engine centerline (mm): 567.55 (22.34in)
from crankc/l (mm): -57.93 (-2.28in.)
from front face of block (mm): -279.06 (-11.0in.).
