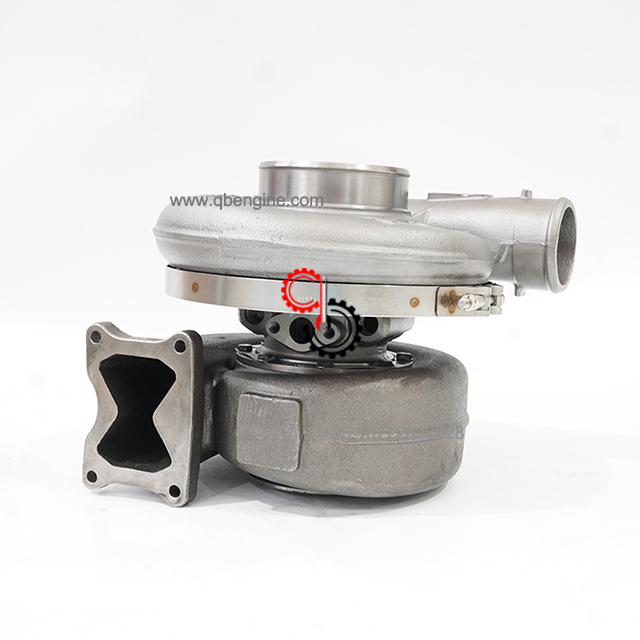

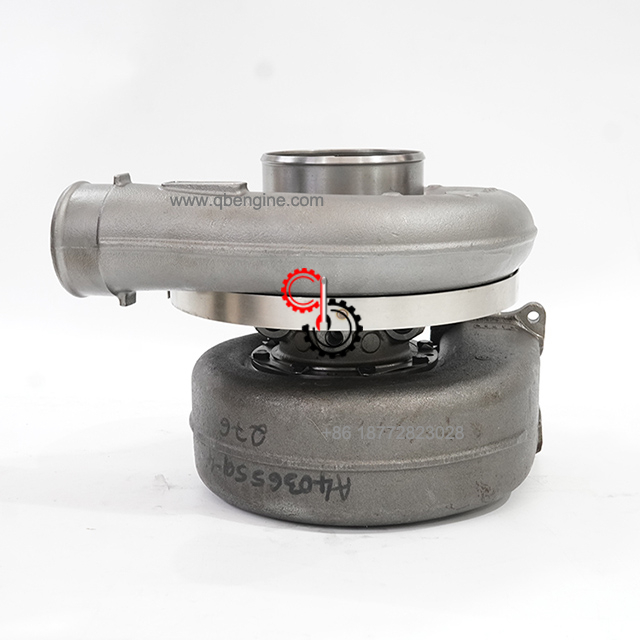

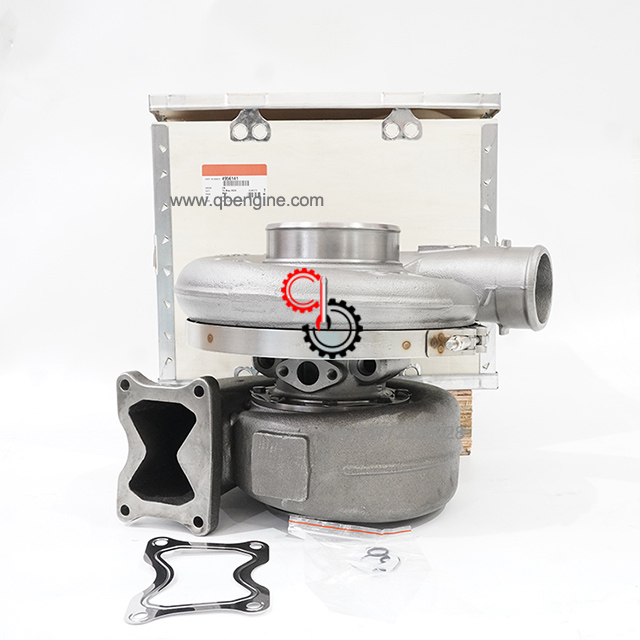

4956141 2837524 4042789 2834218 4044771 4033008 Original Cummins QSK50 Holset HX83 Turbocharger Kit Engines Parts

Supersessions Part Number 4956141 2837524 4042789 2834218 4044771 4033008 Cummins Holset HX83 Turbocharger Kit details

PP6836 Turbocharger

Engine Family: D28

Aspiration: 2 stage low temp aftercooled

CPL: 2760, 3379

Turbocharger Qty: 4

High press: HX83-a151 n66 ybl/c125 l89 yas57 p

low press: HT100-8970 C/A94 r1

Water Cooled Bearing Housing: Yes

Low pressure turbocharger attitudes compressor angle (deg): 150

turbine angle (deg): 60

High pressure turbocharger attitudes compressor angle (deg): 20

turbine angle (deg): 360

Exhaust Outlet Orientation: Side Out

Exhaust Outlet Flange Type: Half Marmon

Turbocharger exhaust outlet outer diameter (mm): 203.0 (8.0in)

Turbocharger mounting flange type: Monarch 4 bolt

intake air connection flange type: Hose bead

intake air connection outside diameter (mm): 203 (8.0in)

high press turbocharger impeller material: Titanium

Additional Information: Compressor angle does not support air shutdown device installation.
