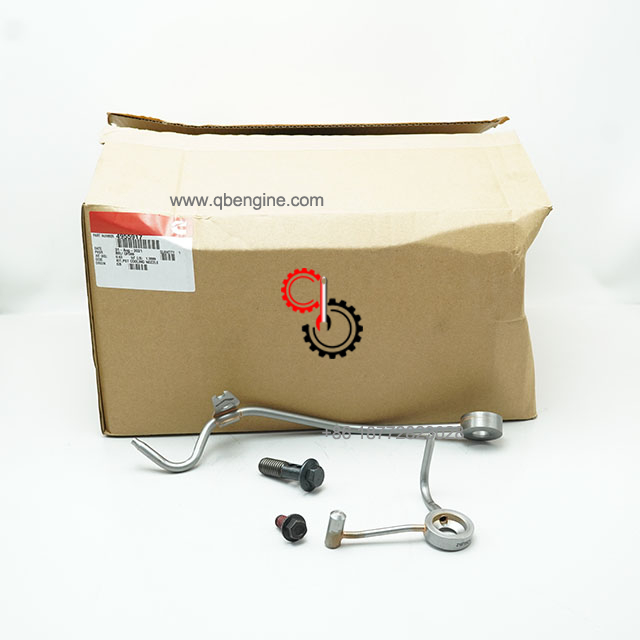

Cummins / Cummins Parts / Piston, Cylinder Liner, Connecting Rod, Bearing, Bushing / 4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK60 QSK45
4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK
4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK 4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK
4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK 4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK
4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK 4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK

loading

4955917 3651209 3640540 3640536 Genuine Cummins Piston Cooling Nozzle Kit for Sale QSK60 QSK45

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK60 QSK45 Piston Cooling Nozzle 4955917 3651209 3640540 3640536

  • QSK60 QSK45

  • Cummins

  • 4955917 3651209 3640540 3640536

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export
Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

4955917

Cart Ref No Part Number Part Description Required Remarks


BB67007 Cylinder Block
Cylinder Block

4373034 Cylinder Block 1

1 69519 Pin Dowel 2

2 3089192 Hexagon Flange Head Cap Screw 18

3 3089201 Ring Dowel 8

4 3332234 Fracture Resistant Screw 18

5 3640776 Tamper Proof Seal 24

6 3642401 Bushing 16

7 3642431 Main Bearing Cap 8

8 4016701 Diamond Dowel 2

9 3642910 Cylinder Block 1

10 3646640 Bushing 2

11 4373046 Main Bearing Cap 1

12 3629168 Expansion Plug 8


3638767 Coupling Nipple 2

13 3638768 Coupling Nipple 1

14 3678912 O-Ring Seal 1 M14.
15 3641125 Hexagon Flange Head Cap Screw 16 M10 X 1.50 X 20.

3678873 Threaded Plug 6 M18 X 1.5 X 19.5.
16 3678786 O-Ring Seal 1 M18.
17 3678791 Threaded Plug 1 M18 X 1.5 X 19.5.

3678921 Threaded Plug 1 M14 X 1.5 X 16.
14 3678912 O-Ring Seal 1 M14.
18 3678922 Threaded Plug 1 M14 X 1.5 X 16.
19 4001096 Pin Dowel 16

20 4016364 Pin Dowel 32

21 4017240 Expansion Plug 17

22 4017621 Expansion Plug 12

23 4017622 Expansion Plug 4

24 3638583 Draincock 5


3631471 O-Ring Adapter 1

25 3631472 Seal Retainer 1

26 3631473 Cover Plate 1

27 195952 O-Ring Seal 6


4080519 O-Ring Adapter 5

26 3631473 Cover Plate 1

28 4080520 Seal Retainer 1

29 3902460 Hexagon Flange Head Cap Screw 12 M10 X 1.50 X 25.
30 3644545 Cylinder Liner 16

31 4017292 D-Ring Seal 16

32 3014668 D-Ring Seal 16

33 3081489 Oil Seal 16

34 3088386 Liner Seal Ring 16

35 3651209 Piston Cooling Nozzle 16

36 3640543 Hexagon Flange Head Cap Screw 16

37 3640536 Piston Cooling Nozzle 16


4376313 Liner Kit A/R


4955917 Piston Cooling Nozzle Kit A/R


4376413 Cylinder Block Kit A/R


4376412 Cylinder Block Hardware Kit 1


3082438 Ring Dowel 32 Item Not Shown In Art.

3089378 Pin Dowel 1 Item Not Shown In Art.

3089379 Diamond Dowel 1 Item Not Shown In Art.

4955917 Piston Cooling Nozzle Kit 16


SHIPMENT CHARACTERISTICS
Length * Width * Height 34cm*12cm*12cm
Weight 0.369KG


Previous:
Next:
4955917 3651209 3640540 3640536 piston cooling nozzle kit piston cooling nozzle kit for sale piston cooling nozzle kit part number Cummins Piston Cooling Nozzle Kit engine 4955917 QSK Piston Cooling Nozzle Kit
