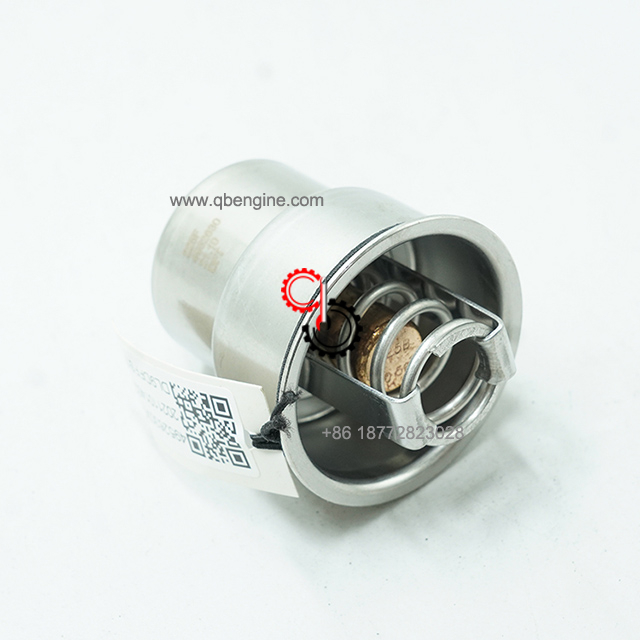

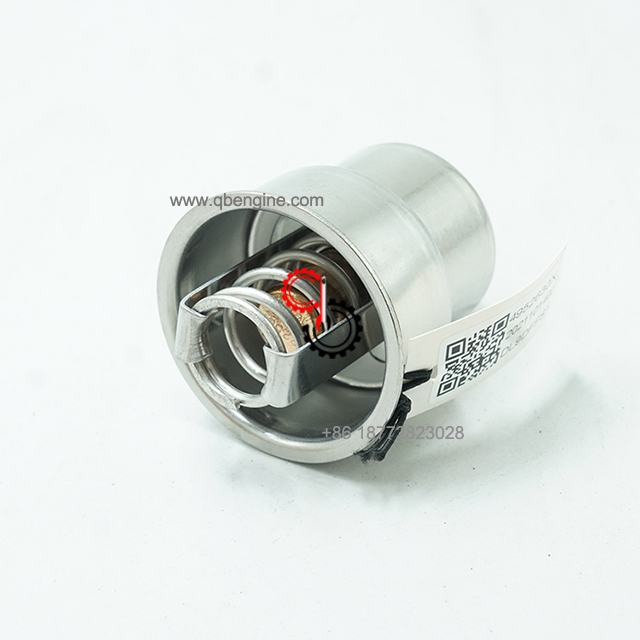

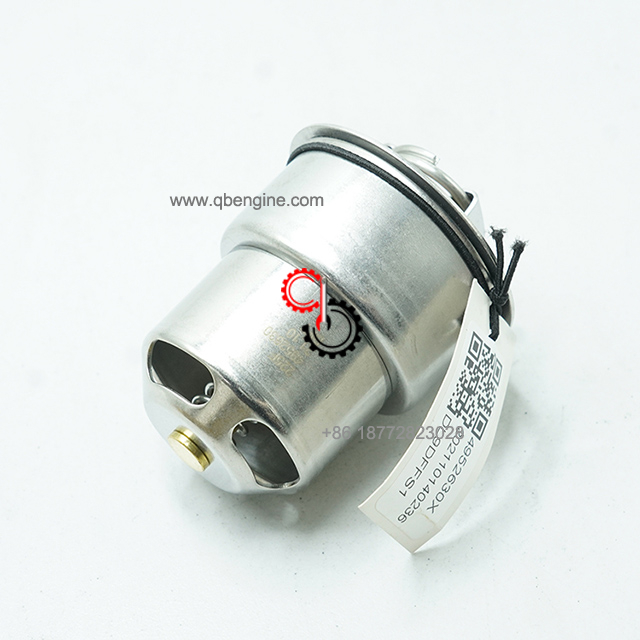

Original Cummins 4952630X M11 QSM11 Thermostat

  • M11 QSM11

  • Cummins

  • 4952630X

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins 4952630X M11 QSM11 Thermostat

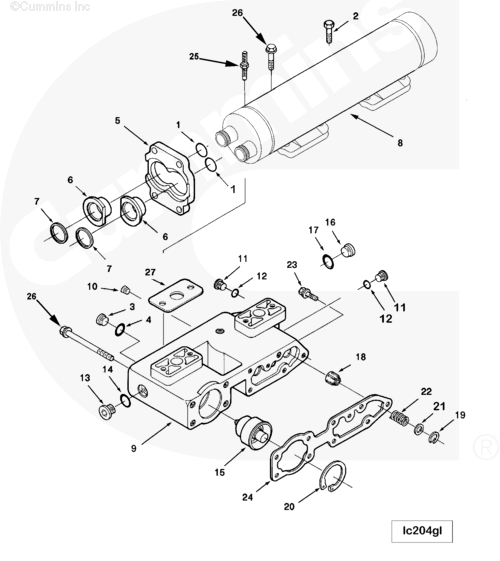

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4952630X

Cart Ref No Part Number Part Description Required Remarks


LC2774 Oil Filter Cooler Head
Oil Filter Head Cooler...(More)
1 109080 O-Ring Seal 2

2 3034836 Hexagon Head Cap Screw 4 M10 x 1.50 x 30

3046202 Threaded Plug 1 3/4 - 16 UNF.
3 3040810 Threaded Plug 1

4 3046201 O-Ring Seal 1

5 3102571 Connection Retainer 1

6 3080401 O-Ring Adapter 2

7 3080769 Rectangular Ring Seal 2

8 4975879 Oil Cooler 1


4914502 Lubricating Oil Filter Head 1

9 3899699 Lubricating Oil Filter Head 1

10 3008466 Pipe Plug 1 1/4 NPT.

3037536 Threaded Plug 2 9/16 - 18 UNF
11 3037537 O-Ring Seal 1

12 3040813 Threaded Plug 1 9/16 - 18 UNF
13 3040819 Threaded Plug 1

14 3035228 O-Ring Seal 1

15 4952630 Thermostat 1


3202101 Threaded Plug 1 1 1/16 - 12 UNF
16 3050897 Threaded Plug 1

17 3046943 O-Ring Seal 1

18 3820320 Bypass Valve Plunger 1

19 3820631 Retaining Ring 1

20 3820782 Retaining Ring 1

21 3882585 Expansion Plug 1

22 3882586 Compression Spring 1

23 3896724 Hexagon Flange Head Cap Screw 3 M10 x 1.50 x 30
24 3820629 Filter Head Gasket 1

25 3883394 Studded Hexagon Cap Screw 2 M8x1.25x20 - M10x1.50x70
26 3406888 Hexagon Flange Head Cap Screw 6 M10 x 1.50 x 170
27 3892625 Oil Cooler Support Gasket 2


3036460 Spring Washer 4 Item not shown on art.


SHIPMENT CHARACTERISTICS
Length * Width * Height 12.4cm*5.7cm*5.7cm
Weight 0.194kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
