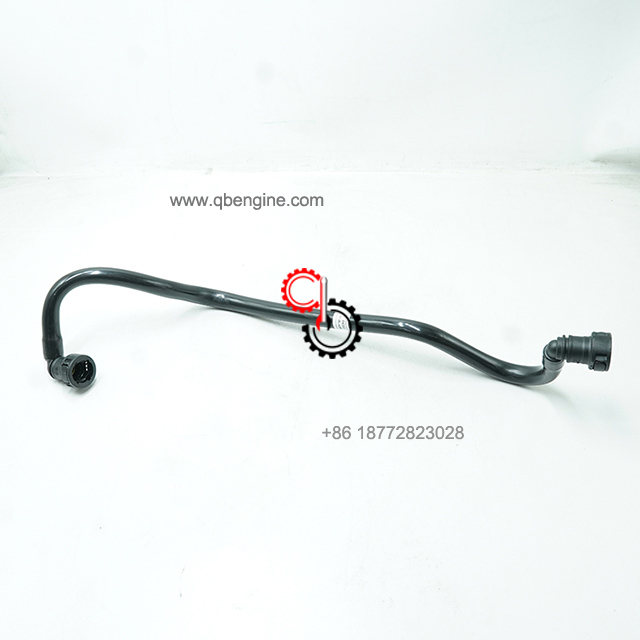

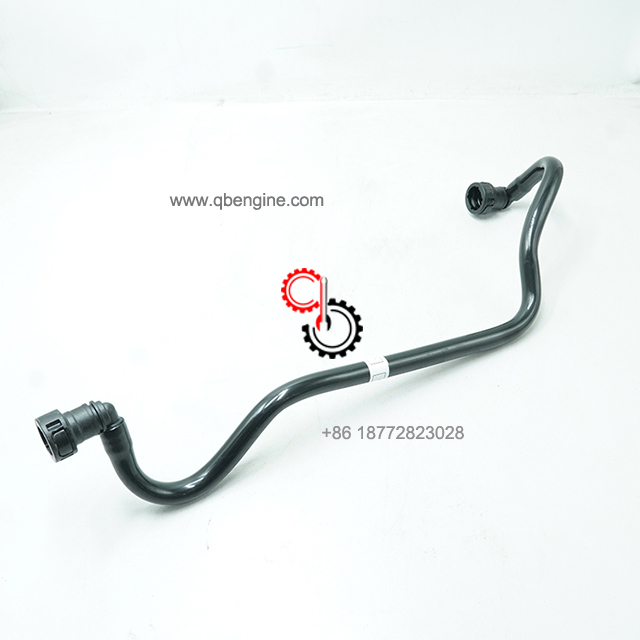

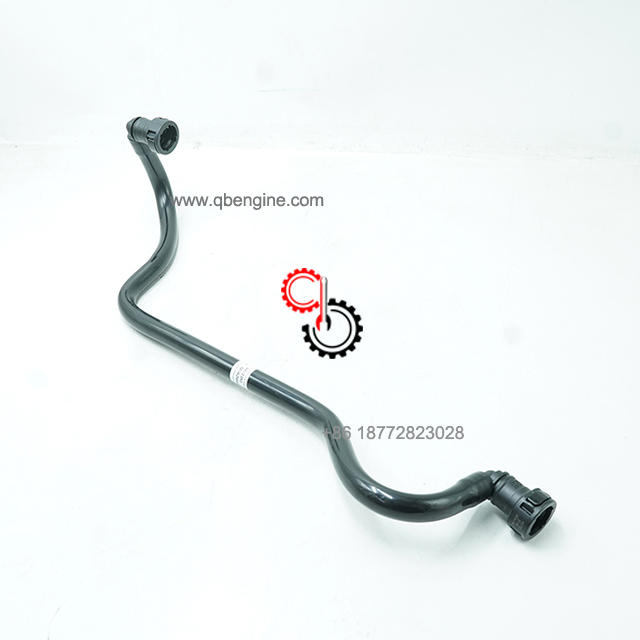

Original Cummins 4932393 4988666 ISL QSL Fuel Supply Tube

  • ISL QSL

  • Cummins

  • 4932393 4988666

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 4932393 4988666 Cummins Fuel Supply Tube details

Electronic Parts Catalogue - Option Detail
Cummins EnginesCummins Engine Parts 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

PH9235 Engine Control Module Plumbing

Fuel Inlet to ECM: From Fuel Manifold

(FT option)ers: 6

Crank Centerline to Inlet Centerline (mm): 319

Engine Centerline to Inlet (mm): 185.27

Front Face of Block to Inlet Centerline (mm): -804.5

Fuel Outlet from ECM: To Gear Pump on Fuel Pump

Crank Centerline to Inlet Centerline (mm): 367.6

Engine Centerline to Inlet Centerline (mm): 270.5

Front Face of Block to Inlet Centerline (mm): 141.9

Engine Mounted Lift Pump: Yes

CartRef NoPart NumberPart DescriptionRequiredRemarks


PH9235Engine Control Module Plumbing
MR - PLUMBING, ENG CNT MODULE...(More)
13963990Sealing Washer1M12.
23966128Fuel Supply Tube1

33969822Quick Disconnect Connector1


4932393Fuel Supply Tube1

43966123Tube Connector2

54932394Fuel Supply Tube1


SHIPMENT CHARACTERISTICS

Length * Width * Height49cm*14cm*2cm
Weight0.1089kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
