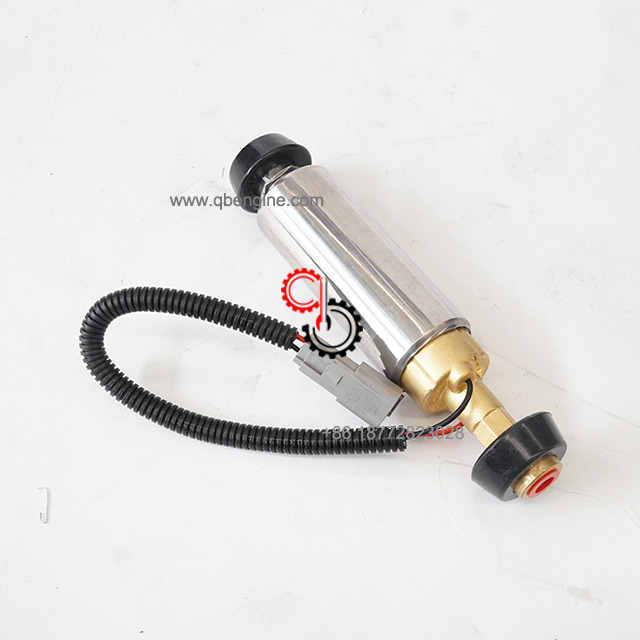

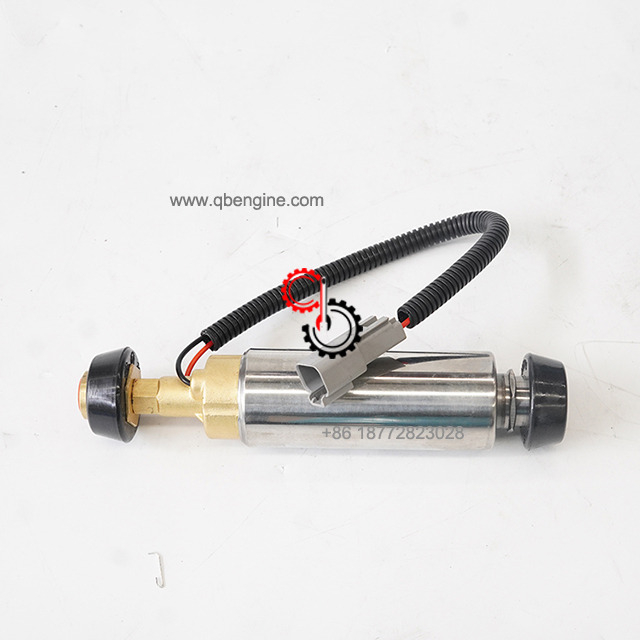

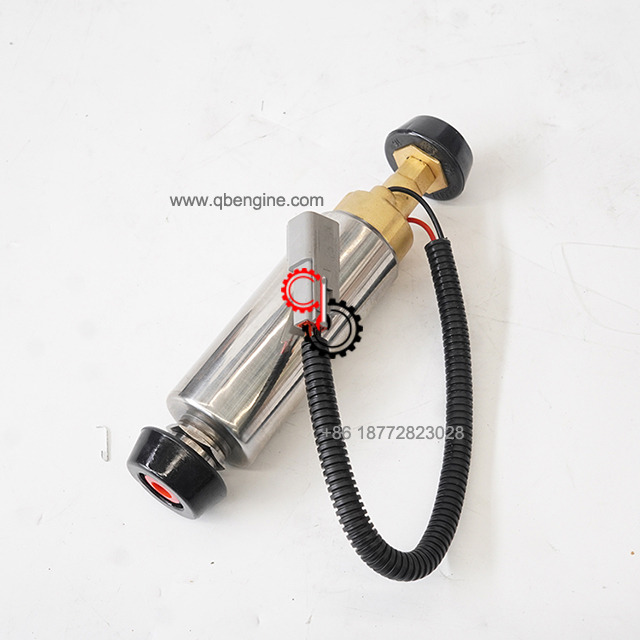

Cummins QSK Fuel Transfer Pump 4924192

  • QSK

  • Cummins

  • 4924192

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK Fuel Transfer Pump 4924192 In Stock

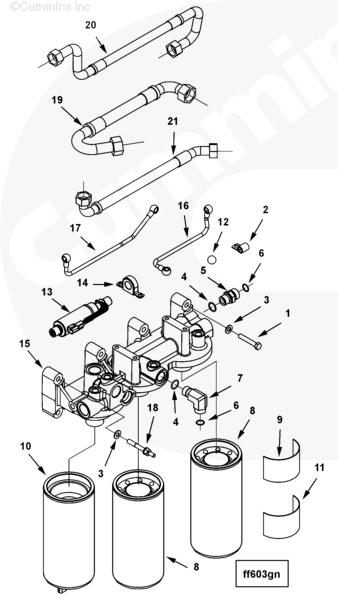

Electronic  Parts Catalog - Option Detail
Cummins Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

4924192

Ref No Part Number Part Description Required Remarks

FF6097-01 Fuel Filter

1 S 104 Hexagon Head Cap Screw 5 3/8 - 16 X 2 1/4 in.
2 68152 Clip 1 #4
3 3042329 Plain Washer 6 3/8 in.

3171818 Male Union 1
4 3089240 O-Ring Seal 1 M22
5 3171819 Male Union 1
6 3630740 O-Ring Seal 1

3171883 Male Union Elbow 1
7 3171973 Male Union Elbow 1
8 4924300 Fuel Filter 2
9 4924301 Decal 2
10 4924640 Fuel Water Separator 1 Buy from Cummins Filtration
11 4924641 Decal 1

4924700 Fuel Filter Head 1
12 4917446 Check Ball 1
13 4924192 Fuel Transfer Pump 1
14 4924297 Vibration Isolator 1
15 4924701 Fuel Filter Head 1
16 4924702 Fuel Transfer Tube 1
17 4924703 Fuel Transfer Tube 1
18 4924787 Studded Flange Cap Screw 1
19 4928092 Flexible Hose 1
20 4928093 Flexible Hose 2
21 4928094 Flexible Hose 1


SHIPMENT CHARACTERISTICS


Length * Width * Height 6cm*6cm*19cm
Weight 0.726KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
