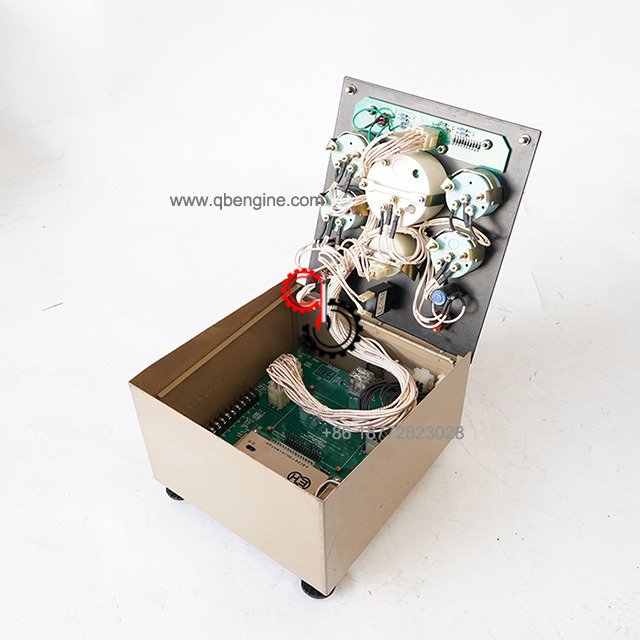

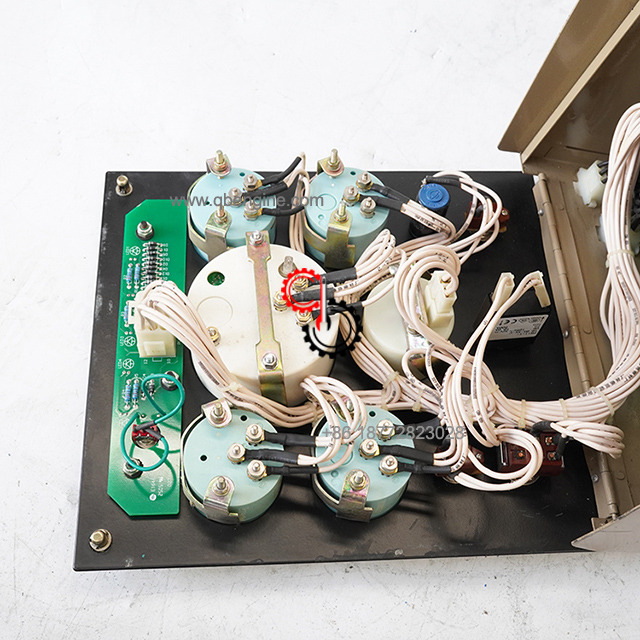

Genuine Cummins NT855 K19 K38 Instrument Panel 4913984 4913742

  • NT855 K19 K38

  • Cummins

  • 4913984 4913742

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export


Genuine Cummins NT855 K19 K38 Instrument Panel 4913984 4913742 In Stock


Electronic Parts Catalog - Option Detail
Cummins   Engines Cummins   Engine Parts ISM CM570, ISM CM570/870, ISM CM875, ISM   CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11   CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11   CM570, QSM11 CM876

4913742

Cart Ref No Part Number Part  Description Required Remarks


EG2097 Engine  Instrument Panel






Engine  Instrument Panel
1 S  955 Reducing Pipe  Bushing 1

2 68425 Clip 5

3 3015237 Transducer 1

4 3015238 Transducer 2

5 3018920 Wire Tie Clamp 2

6 3033800 Plain Washer 8 3/8 in.
7 3035083 Vibration  Isolator 8

8 3035084 Vibration  Isolator 8

9 3046751 Instrument  Panel Bracket 1

10 3053012 Instrument  Panel Bracket 1

11 3063683 Wiring Harness 1

12 3161093 Captive Washer  Cap Screw 2

13 3175239 Lock Nut 8

14 3328382 Instrument  Panel Bracket 1

15 4061152 Wiring Harness 1


4913742 Instrument  Panel 1

16 70262 Lock Washer 8 #6
17 70310 Pan Head Cap  Screw 8 #6 - 32 X 3/8  Inch.
18 70646 Lock Nut 8 #8 - 32 UNC
19 104215 Toggle Switch 1

20 128006 Plain Washer 8

21 3015105 Potentiometer 1

22 3015232 Pressure Gauge 1

23 3015233 Temperature  Gauge 1 Oil
24 3015234 Temperature  Gauge 1 Water
25 3015235 Voltmeter 1

26 3031734 Tachometer 1

27 3034953 Circuit Breaker 1

28 3035132 Wiring Harness 1

29 3035766 Hourmeter 1

30 3036453 Overspeed  Switch 1

31 3044195 Governor  Control 1

32 3053010 Instrument  Cabinet 1

33 3053044 Wiring Harness 1

34 3053060 Circuit Board 1

35 3053065 Circuit Board 1

36 3053077 Instrument  Panel 1

37 3056060 Rivet 3


SHIPMENT CHARACTERISTICS
Length * Width * Height 54cm*28cm*23cm
Weight 5kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
