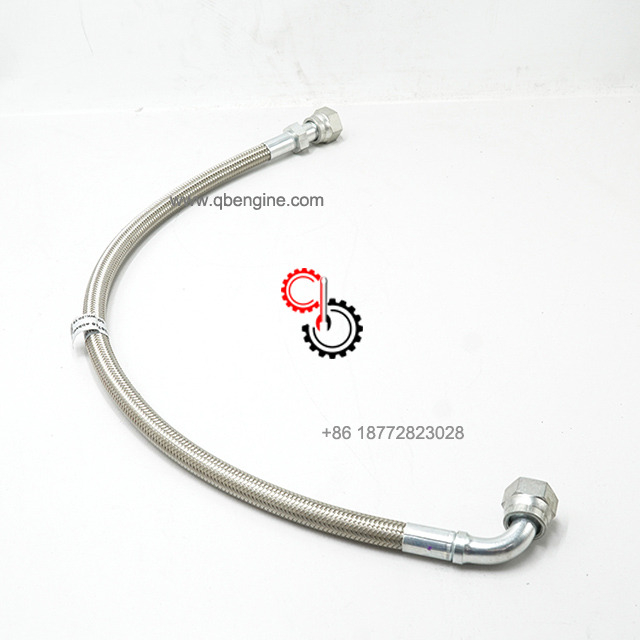

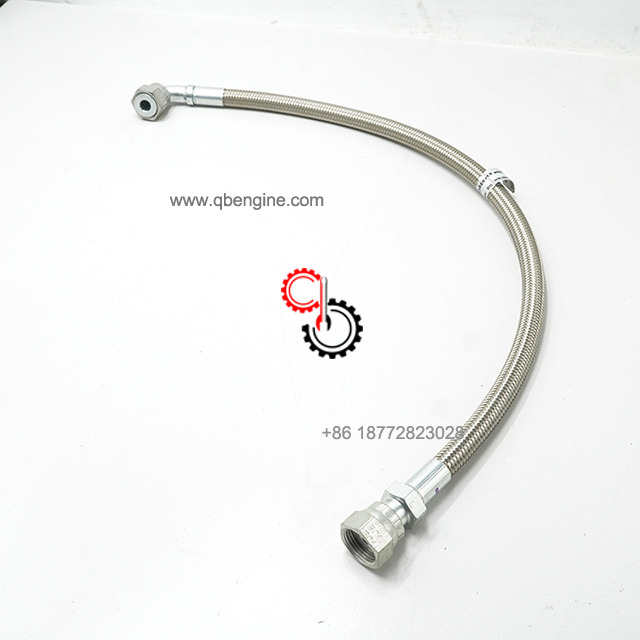

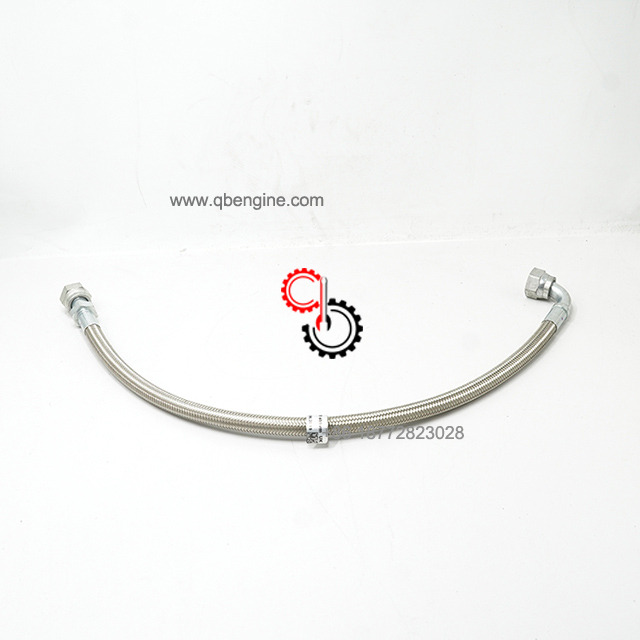

Cummins Flexible Hose QSK60 4380774 3644488 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | Cummins Engine Parts QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110 |

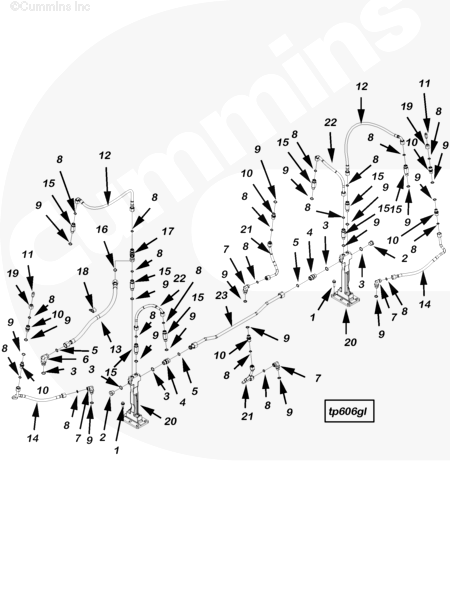

TP6830 Turbocharger Coolant Plumbing
Engine Family: QSK60
Aspiration: Single Stage Low Temperature Aftercooled
Turbo Quantity: 4
Turbo Model / Single Stage Industrial: HE851-C151J62YBL / A129T74YBH26BB; HE851-C151J62YBL / A129T74YAS25BB
Exhaust Outlet Orientation: Top Out
Turbo Coolant Routing
Provision: Clearance for Heat Shield
Additional Information: Option Provides Clearance for Heat Shield for LTA Tubes
| Cart | Ref No | Part Number | Part Description | Required | Remarks |
|
| TP6830 | Turbocharger Coolant Plumbing |
| MR - PLUMBING, TUR COOLANT...(More) |
| 1 | 3089016 | Hexagon Flange Head Cap Screw | 12 | M10 X 1.50 X 35. |
|
| 3089238 | Threaded Plug | 2 | M22 x 1.50 x 20.1 |
|
| 2 | 3089239 | Threaded Plug | 1 | M22 x 1.50 x 20.1 |
|
| 3 | 3089240 | O-Ring Seal | 1 | M22 |
|
| 3171818 | Male Union | 2 |
|
|
| 4 | 3171819 | Male Union | 1 |
|
|
| 5 | 3630740 | O-Ring Seal | 1 |
|
|
| 3171883 | Male Union Elbow | 1 |
|
|
| 3 | 3089240 | O-Ring Seal | 1 | M22 |
|
| 3171973 | Male Union Elbow | 1 |
|
|
| 5 | 3630740 | O-Ring Seal | 1 |
|
|
| 3331872 | Male Union Elbow | 4 |
|
|
| 7 | 3331837 | Male Union Elbow | 1 |
|
|
| 8 | 3627695 | O-Ring Seal | 1 |
|
|
| 9 | 3678786 | O-Ring Seal | 1 | M18 |
|
| 3331873 | Male Union | 6 |
|
|
| 10 | 3331838 | Male Union | 1 |
|
|
| 11 | 3638582 | Draincock | 2 |
|
|
| 12 | 3644488 | Flexible Hose | 2 |
|
|
| 13 | 3644489 | Flexible Hose | 1 |
|
|
| 14 | 3644490 | Flexible Hose | 2 |
|
|
| 3644493 | Male Union | 8 |
|
|
| 15 | 3644494 | Male Union | 1 |
|
|
| 3644495 | Male Union Tee | 1 |
|
|
| 16 | 3076102 | O-Ring Seal | 1 |
|
|
| 17 | 3644496 | Male Union Tee | 1 |
|
|
| 18 | 3657725 | Clip | 1 |
|
|
| 19 | 4016444 | Reducing Adapter | 2 |
|
|
| 20 | 4927645 | Water Transfer Connection | 2 |
|
|
| 21 | 4927650 | Flexible Hose | 2 |
|
|
| 22 | 4927652 | Flexible Hose | 2 |
|
|
| 23 | 4927951 | Water Transfer Tube | 1 |
|
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 11.25cm*1cm*1cm |
| Weight | 0.6kg |
