WR6970-01 Electronic Control Module Wiring Harness
Application: Industrial
Fuel Control System: Cummins MCRS
ECM Version: CM2350A
Fuel Filter Location:
Stage One Filtration: Off Engine
Stage Two Filtration: Left Bank Oil Pan Adapter
Oil Pressure Sensor (Pre/Post) Location: Lube Filter Head Located Over Cylinder Numbers #6-#8
Fuel Supply Temperature Sensor Location: Fuel Filter Head
Fuel Supply Pressure Sensor Location: Fuel Filter Head
Exhaust Gas Temperature Sensor Type: Thermistor
CAM Sensor Location: Front Gear Cover Left Bank
Fuel Filter Stage One Harness Length (cm): 304.8 (10 ft)
Additional Information: For Tier 4, Item Notes And Structure Will Be Updated At Later Stage.
For A Single Stage Engine With After Treatment To Meet US EPA Tier 4 Emissions.
Cart
Ref No
Part Number
Part Description
Required
Remarks
WR6970-01
Electronic Control Module Wiring Harness
ETR CNT MDL WRG Harness...(More)
S 221
Heavy Hexagon Nut
4
5/16 - 18 UNC.
S 604
Lock Washer
8
3/8 in.
69621
Hexagon Head Cap Screw
8
3/8 - 16 X 5 1/2 in.
103023
Hexagon Head Cap Screw
2
7/16 - 14 X 1 in.
108330
Plain Washer
8
3/8 in.
3000082
Plain Washer
3
15/32 in.
3015283
Captive Washer Cap Screw
33
5/16 - 18 X 3/4 in.
3040837
Captive Washer Cap Screw
1
3/8 - 16 X 2 1/4 in.
3040838
Captive Washer Cap Screw
2
3/8 - 16 X 1 1/4 in.
3042328
Plain Washer
4
1/4 in.
3064321
Captive Washer Cap Screw
3
3/8 - 16 X 7/8 in.
3628554
Tube Brace
1
3643020
Hexagon Flange Nut
2
3647638
Electronic Control Module Wiring Harness
1
3649942
Electronic Control Module Wiring Harness
1
3651847
Electronic Control Module Wiring Harness
1
4373056
Wiring Retainer Bracket
4
4380702
Electronic Control Module Wiring Harness
1
5286859
Retaining Wire
16
5371717
Protective Cover
4
3651848
Electronic Control Module Wiring Harness
1
3651850
Electronic Control Module Wiring Harness
1
3651851
Electronic Control Module Wiring Harness
1
3651927
Wiring Retainer Bracket
16
3688983
Electrical Connector Boot
8
4310447
Electronic Control Module Wiring Harness
1
4372984
Electronic Control Module Wiring Harness
1
4373021
Wiring Retainer Bracket
4
4918064
Electronic Control Module Wiring Harness
1
5286859
Retaining Wire
17
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

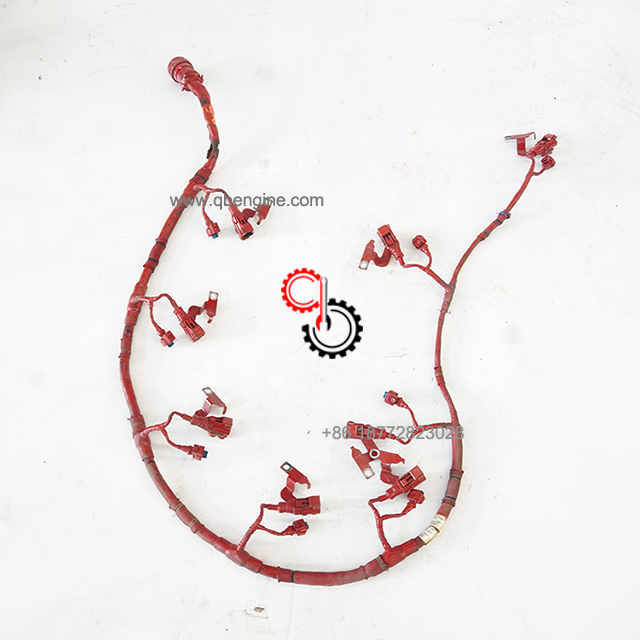

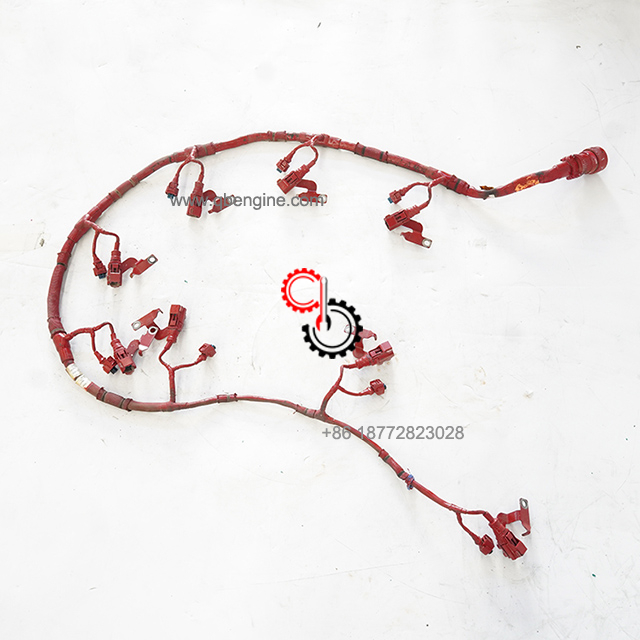

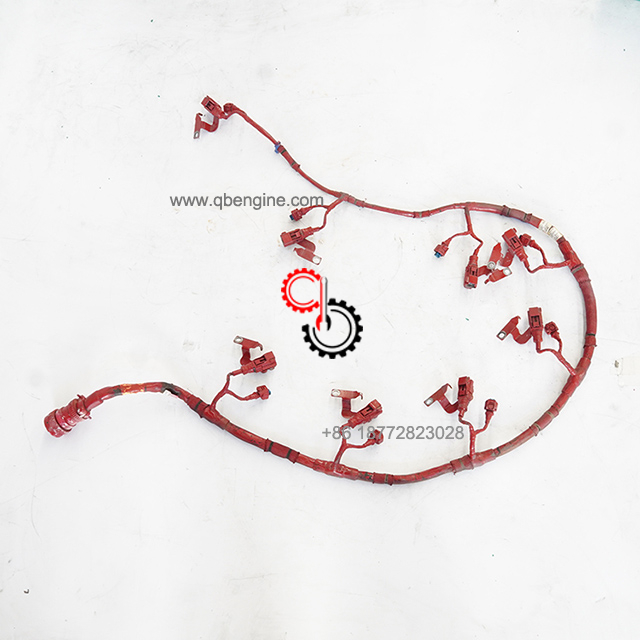

Supersessions Part Number 4380702 4380703 4380700 Cummins Electronic Control Module Wiring Harness details
