Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / 4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts
4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts
4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts 4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts
4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts 4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts
4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts 4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts

loading

4376080F 3651956F Water Pump Cummins QSK60 Brand New Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

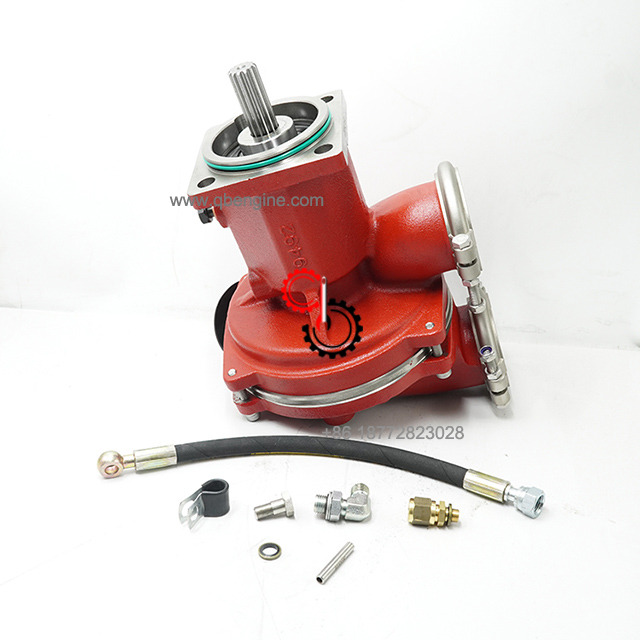

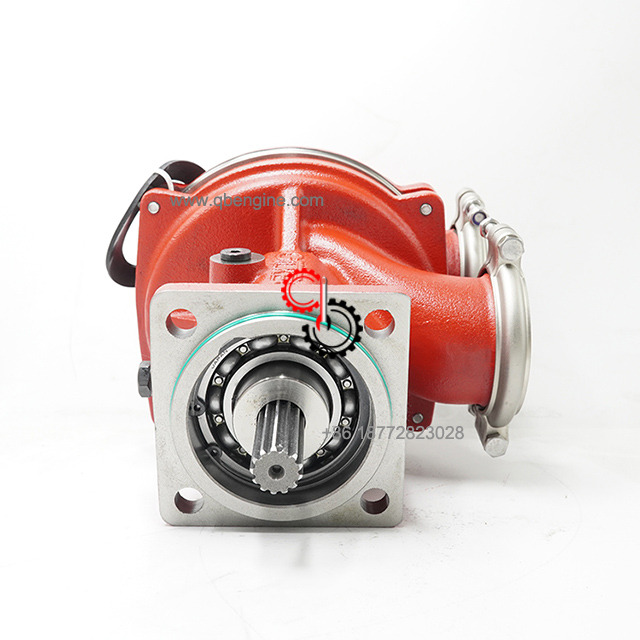

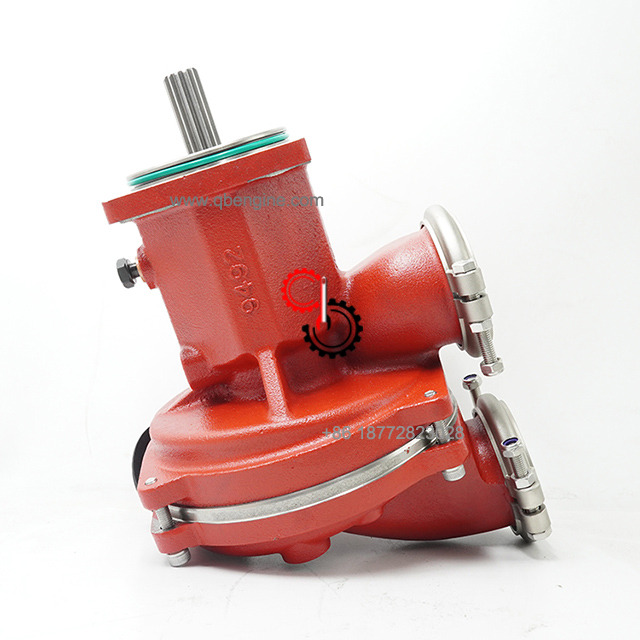

Brand New Water Pump Cummins QSK60 4376080F 3651956F

  • QSK60

  • Cummins

  • 4376080F 3651956F

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Brand New Water Pump Cummins QSK60 4376080F 3651956F In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60   CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60   CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3651956

Cart Ref No Part Number Part Description Required Remarks


TB6767-09 Auxiliary Cooling System
Auxiliary cooling system...(More)
1 3645973 Hose Clamp 4

2 68152  B Clip 1


3089023 Threaded Plug 1 M42 X 2.00 X 19.5.
3 3089019 O-Ring Seal 1 M42.
4 3089021 Threaded Plug 1 M42 X 2.00 X 19.5.
5 3089247 Connection Gasket 1

6 3332143 Connection Gasket 1

7 3647133 Water Inlet Connection 1

8 3332164 V Band Clamp 1

9 3332391 Water Pump Gasket 1

10 3651956 Water Pump 1

11 3638094 Banjo Connector Screw 1

12 3642576 Flexible Hose 1

13 3638583 Draincock 1


3682701 Male Union Elbow 1

14 3089392 O-Ring Seal 1

15 3678912 O-Ring Seal 1 M14
16 3682727 Male Union Elbow 1

17 3902460 Hexagon Flange Head Cap Screw 5 M10 X 1.50 X 25.
18 3910495 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 30.
19 3963982 Sealing Washer 2

20 4000866 Water Bypass Tube 1

21 4000872 Water Inlet Tube 1

22 4001432 Water Inlet Tube 1

23 4016407 Water Bypass Tube 1

24 4080544 Plain Hose 2

25 4100829 Water Transfer Connection 1

26 3903112 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 30.
27 3252438 Tube Connector 1


3650016 Water Drain Tube 1

28 3650017 Water Drain Tube 1

29 3651195 Debris Shield 1


4376080 Water Pump Kit A/R


68152 B Clip 1


3252438 Tube Connector 1


3642576 Flexible Hose 1


3650016 Water Drain Tube 1


3651956 Water Pump 1


3682701 Male Union Elbow 1


3963982 Sealing Washer 2


4372963 Banjo Connector Screw 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 40cm*28cm*30cm
Weight 20.1kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
