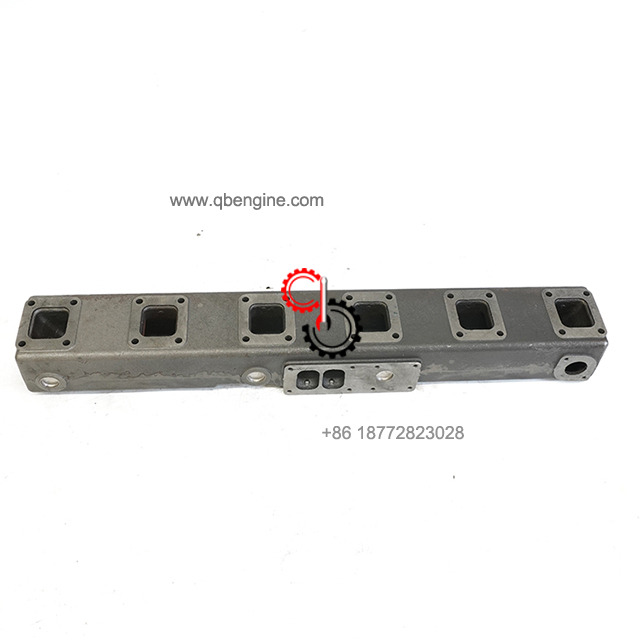

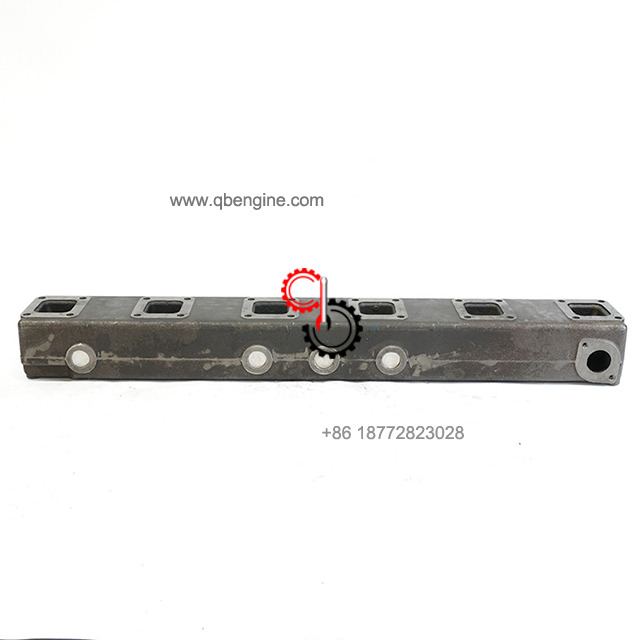

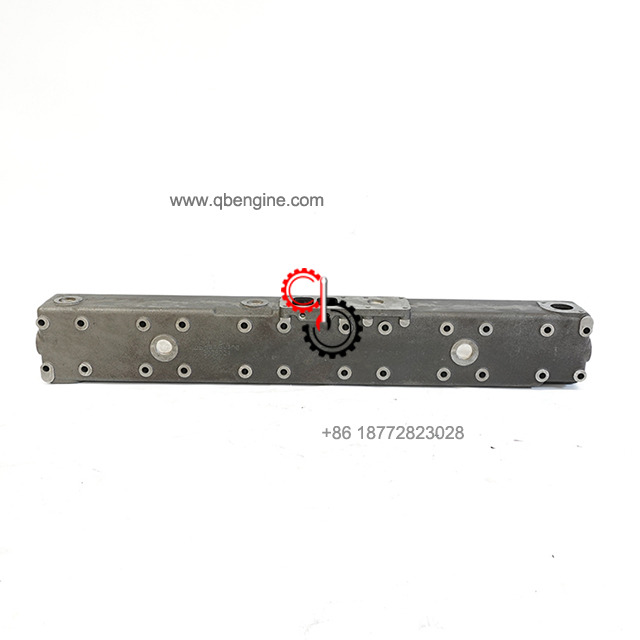

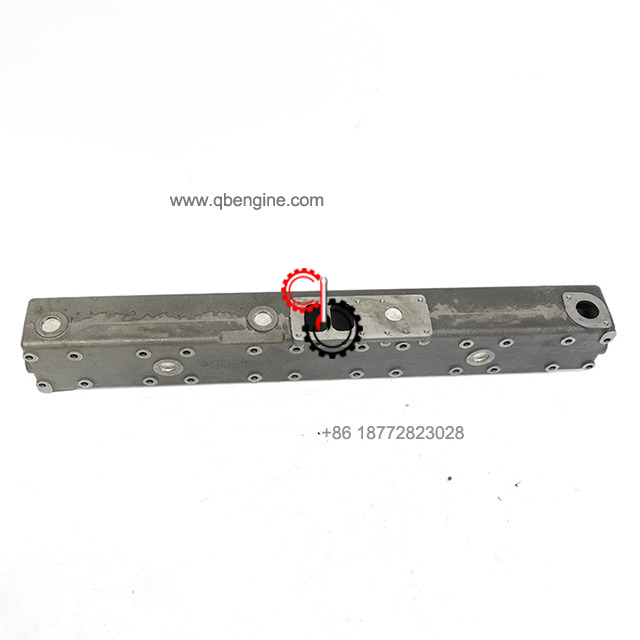

Cummins KTA19-M Exhaust Manifold 4371852 4371861 4371942

  • KTA19-M

  • Cummins

  • 4371852 4371861 4371942

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins KTA19-M Exhaust Manifold 4371852 4371861 4371942 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19  CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850  MCRS, QSK19G

4371861

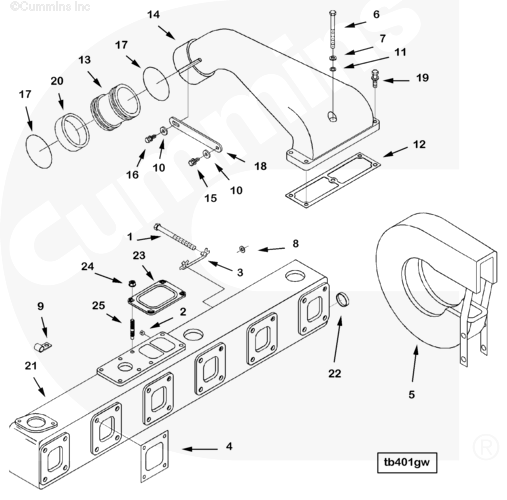

Cart Ref No Part Number Part Description Required Remarks


TB4020-02

Turbocharger Arrangement


MP45146 Exhaust Mounting Manifold 1
1 S 164 B Hexagon Head Cap Screw 24 7/16 - 14 X 5 1/4 in.
2 S 910 B Pipe Plug 2 1/4 NPT.
3 3001405 Lock Plate 12

4 3043097 Exhaust Manifold Gasket 6

5 4967565 Turbocharger Heat Blanket 1


3004601 Air Mounting Crossover 1

6 S 149 A Hexagon Head Cap Screw 1 3/8 - 16 X 5 in.
7 S 604 Lock Washer 1 3/8 in.
8 S 626 Plain Washer 1 5/16 in.
9 108722 Clip 1

10 109557 Plain Washer 4 1/4 in.
11 127362 Plain Washer 1 3/8 in.
12 206279 Connection Gasket 1

13 207214 Air Inlet Pipe 1

14 3003647 Air Crossover Connection 1

15 3021470 Captive Washer Cap Screw 3 5/16 - 18 X 3/4 in.
16 3022590 Captive Washer Cap Screw 1 5/16 - 18 X 1 in
17 3023066 O-Ring Seal 2

18 3060940 Retaining Brace 2

19 3065723 Captive Washer Cap Screw 4 3/8 - 16 X 1 3/4 in.
20 3088371 Dust Seal 1


4371942 Exhaust Manifold 1

21 4371861 Exhaust Manifold 1

22 S 910 B Pipe Plug 2


4997940 Turbocharger Mounting 1

23 206576 Turbocharger Gasket 1

24 3016182 Lock Nut 4 3/8 - 24 UNF.
25 3393130 Double End Plain Stud 4


SHIPMENT CHARACTERISTICS
Length * Width * Height 115cm*25cm*37cm
Weight 70kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
