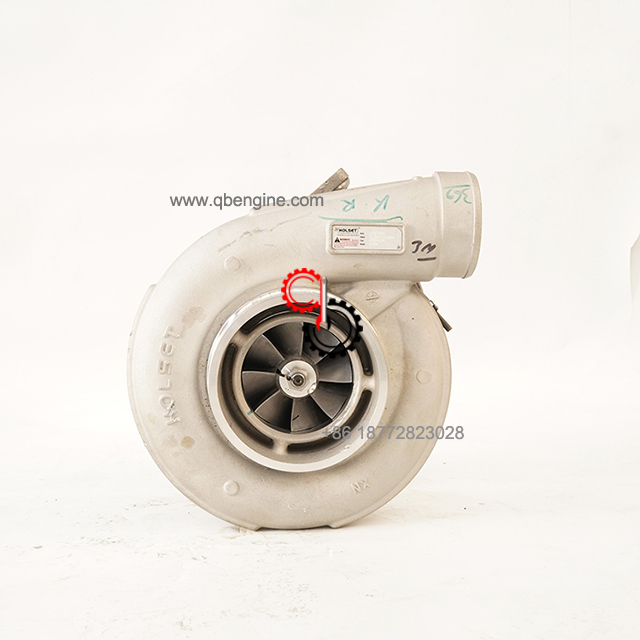

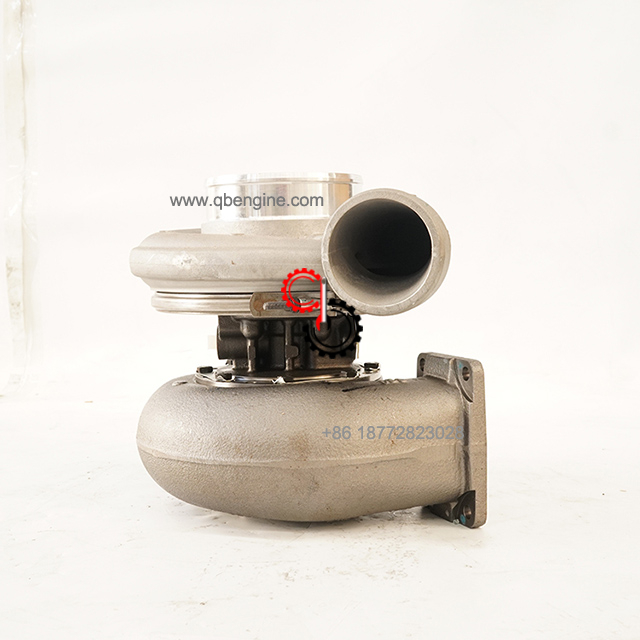

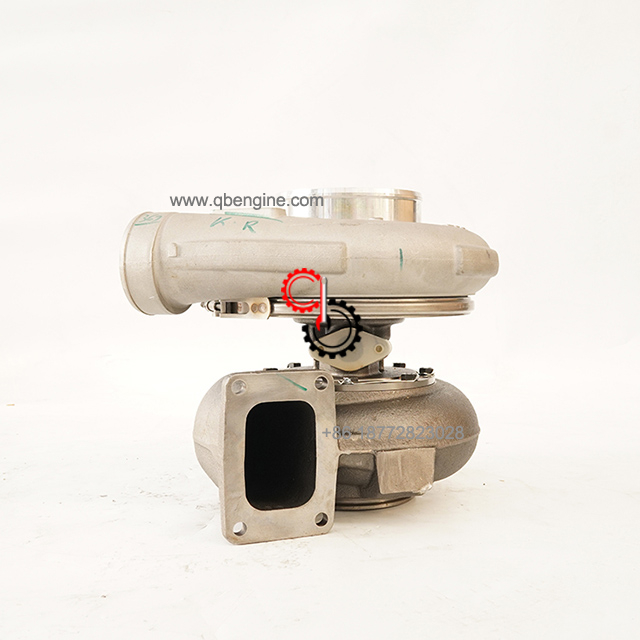

4309249 3594098 3594097 3767934 KTA380-G Turbocharger Kit Original Cummins

Name: 4309249 3594098 3594097 3767934 KTA380-G Turbocharger Kit Original Cummins
Brand: Cummins
SKU: 717801497
Rating: 5.0 (50 reviews)

Model:
4309249 3594098 3594097 3767934
Brand:
Cummins
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Supersession Part Number:	4309249 3594098 3594097 3767934
weight(kg):	35
size(cm):	39cm36cm37cm
Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Electronic Parts Catalog - Option Detail
Engines	GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

Cart	Ref No	Part Number	Part Description	Required	Remarks
		PP6188	Turbocharger		Turbocharger
		3594098	Turbocharger	1
		3527619	Dataplate	1
		3767934	Turbocharger	1
	2839631	Turbocharger Compressor Impeller	1
	3502449	Rectangular Ring Seal	1
	3504967	Plain Washer	4
	3519163	Drive Screw	2
	3519535	Lock Nut	1	M11 X 1.00.
	3519627	Turbocharger Bearing	2
	3519641	Retaining Ring	4
	3521033	Shaft Wheel Rotor	1
	3521225	Hexagon Head Set Screw	8	M8 X 1.25 X 16.
	3521442	Split Ring Seal	1
	3522597	Roll Pin	2
	3522631	V Band Clamp	1
	3522904	Lock Plate	4
	3522914	Turbine Housing	1
	3523412	Split Ring Seal	1
	3524418	Shim	1
	3524419	Oil Baffle	1
	3525073	Hexagon Head Set Screw	4	M8 X 1.25 X 25.
	3527369	Compressor Housing	1
	3529372	Regular Hexagon Nut	1	1/4 - 28 UNF
	3536588	Turbocharger Heat Shield	1
	3536914	Turbocharger Thrust Bearing	1
	3591522	Thrust Collar	1
	3594555	Turbocharger Bearing Housing	1
	3767932	Turbocharger Diffuser	1
	4036307	Oil Slinger	1
	4309249	Turbocharger Kit	A/R
	3767934	Turbocharger	1
	3037537	O-Ring Seal	2
	3171368	Turbocharger Gasket	2
	3630742	Connection Gasket	2
	3922794	O-Ring Seal	4

4309249 3594098 3594097 3767934 KTA380-G Turbocharger Kit Cummins KTA380-G parts Cummins KTA380-G Turbocharger Kit Turbocharger Kit 4309249 Cummins 3594098 engine 3594097
