Cummins / Cummins Parts / Alternator, Starter Motor, Turbocharger / 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins
4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins
4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins
4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins
4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins

loading

4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit Original Cummins

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

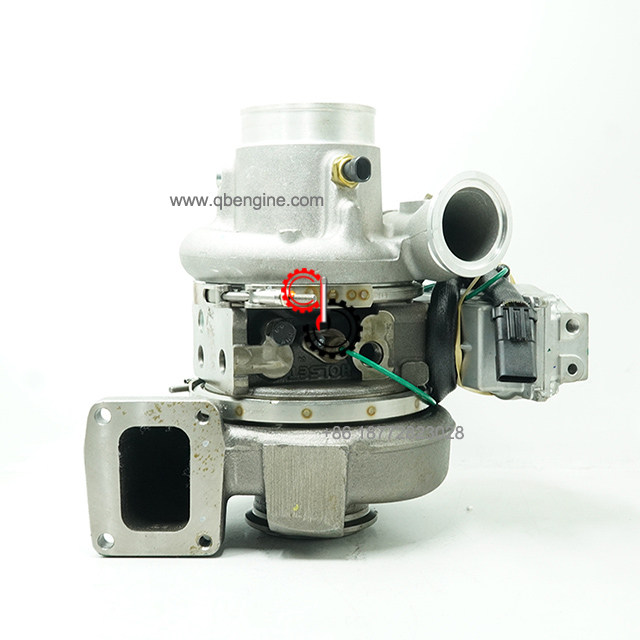

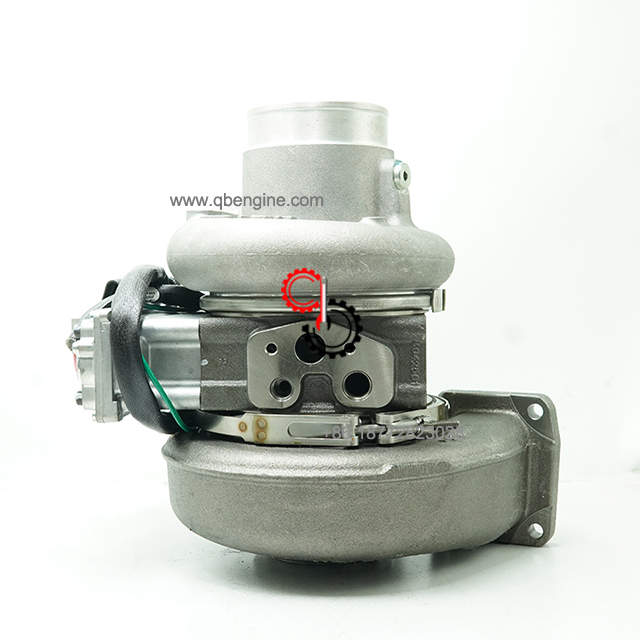

Original Cummins 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 ISM11 CM876 Holset HE400VG Turbocharger Kit

  • ISM11 CM876

  • Cummins

  • 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 4309083 2881792 4955429 5359981 5457203 3774638 3774624 4955582 4956028 Cummins Holset HE400VG Turbocharger Kit details

Electronic Parts Catalogue - Option Detail
Cummins EnginesCummins Engine Parts ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876, QSM11 CM876 M101, QSM11 CM876 M102M
CartRef NoPart NumberPart DescriptionRequiredRemarks


PP20078-12Turbocharger
Turbocharger

3797536Turbocharger1


3527619Dataplate1


3797541Turbocharger1


3527184Hexagon Flange Head Cap Screw1


3789676Turbocharger Electric Actuator1


3789677Turbocharger Electric Actuator1


4040252Turbocharger Gasket1Sold In Higher Level Assy/Kit

4040267Socket Head Cap Screw4


4307345Turbocharger Speed Sensor1Turbocharger Speed.

3797538Turbocharger1


4048242Turbocharger Compressor Impeller1


2840104Oil Seal2


3519163Drive Screw2


3521832V Band Clamp1


3528104Oil Baffle1


3529372Regular Hexagon Nut21/4 - 28 UNF

3531238Retaining Ring1


3532217Thrust Collar1


3590770Socket Head Cap Screw1


3592807Threaded Plug1


3592966Turbocharger Thrust Bearing1


3593725Hexagon Head Set Screw3


3594297Sealing Washer3


3594740Pivot Block2


3595516Turbocharger Noise Baffle1


3596402Lock Nut1


3599032Hexagon Head Set Screw1


3756754Split Ring Seal1


3758848Split Ring Seal1


3762259Retaining Ring4


3770675U-Ring Seal1


3779116Turbocharger Nozzle Ring1


3785119Turbine Housing1


3789337Turbocharger Nozzle Shroud1


4035077Hose Clamp1


4035333Split Ring Seal1


4035334Split Ring Seal1


4035378Turbocharger Bearing2


4036240Retaining Ring1


4039797Oil Slinger1


4040835Compressor Housing1


4040880Shaft And Wheel1


4041107V Band Clamp1


4041453Turbocharger Actuator Lever1


3591429Pivot Pin2


4041794Turbocharger Actuator Yoke1


3522597Roll Pin1


3593466Orifice Plug1


3594891Bushing2


3776661Bushing2


3782849Orifice Plug4


4043231Turbocharger Bearing Housing1


4044468O-Ring Seal1


4045491Oil Seal1


4047179Turbocharger Diffuser1


4088833Temperature Sensor1Coolant or Intake Manifold

4921574O-Ring Seal1


4309083Turbocharger KitA/R


202557O-Ring Seal1


3037537O-Ring Seal1


3046201O-Ring Seal1


3627695O-Ring Seal1


3678786O-Ring Seal1M18

3678912O-Ring Seal1M14

3755843Turbocharger Gasket1


3797542Incomplete Turbocharger1


3797538Turbocharger1


3899343Turbocharger Gasket1


3922794O-Ring Seal1


4934278Sealing Washer2


4934279Sealing Washer2


4934280Sealing Washer4


3782559Turbocharger Sensor KitA/R


3527184Hexagon Flange Head Cap Screw1


4307345Turbocharger Speed Sensor1Turbocharger Speed.

4307444Wire Retaining Clip2No Service Kit.

4034210Turbocharger Electric Actuator KitA/R


3789676Turbocharger Electric Actuator1


4032194Actuator Mounting Kit1


3963983Sealing Washer2M12.

4031373Grease1


4031417Wire Tie Clamp4


4032988Turbocharger Actuator Service Tool1


4032989Turbocharger Actuator Service Tool1


4040252Turbocharger Gasket1Sold In Higher Level Assy/Kit

4040267Socket Head Cap Screw4


4934278Sealing Washer2


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
