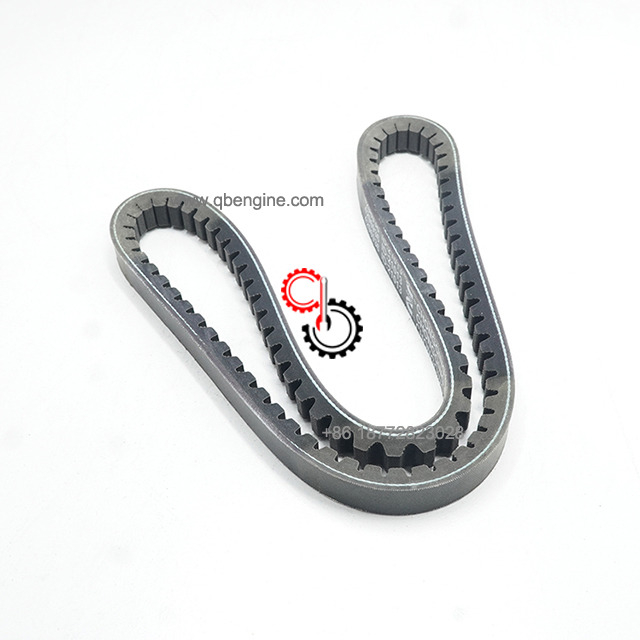

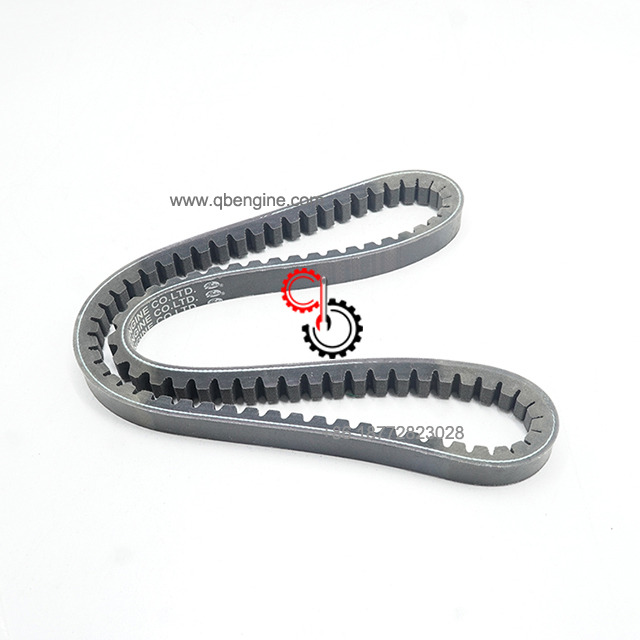

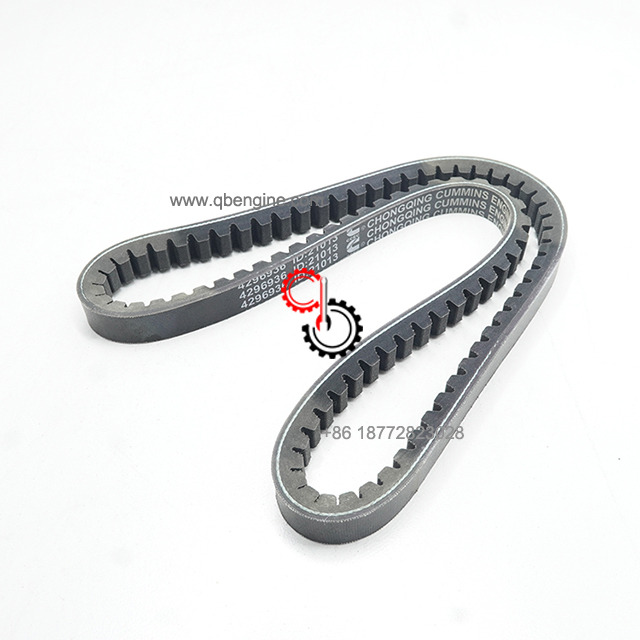

Cummins V Belt 4296936 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | G855, G855 CM558, GTA855 CM558 (CM2358) G101, N14 CELECT, N14 CELECT PLUS, N14 MECHANICAL, NH/NT 855, QSM11 CM876 M101, QSM11 CM876 M102M, QSN14 CM876 N103, QSN14 CM876 N105, QSNT14 CM876 N102 |
| Part Number | Part Description | Required | Remarks |
| FA1690 |
|
| Fan drive...(More) |
| S 176 | Hexagon Head Cap Screw | 2 | 1/2 - 13 X 5 in. |
| S 285 | Heavy Hexagon Jam Nut | 1 | 1/2 - 13 UNC. |
| S 608 | Lock Washer | 3 | 1/2 in. |
| 69952 | Hexagon Head Cap Screw | 3 | 1/2 - 20 X 2 in. |
| 117267 | Counter Weight Washer | 2 |
|
| 166777 | Hexagon Head Cap Screw | 1 | 1/2 - 13 X 2 1/4 in. |
| 208829 | Fan Bracket | 1 |
|
| 217034 | Fan Brace | 1 |
|
| 3015282 | Captive Washer Cap Screw | 2 | 7/16 - 14 X 1 1/8 in. |
| 3076316 | Captive Washer Cap Screw | 2 |
|
| 3655291 | Fan Hub | 1 |
|
| S 117 | Hexagon Head Cap Screw | 2 | 3/8 - 16 X 3/4 in. |
| S 911 B | Pipe Plug | 1 | 1/8 NPT. |
| 142176 | Lock Nut | 1 | 1 1/8 - 12 UNF. |
| 217008 | Bearing Spacer | 1 |
|
| 217011 | Bearing Spacer | 1 |
|
| 3001280 | Retaining Ring | 1 |
|
| 3005592 | Fan Spacer Gasket | 1 |
|
| 3008883 | Protective Cover | 1 |
|
| 3012467 | Plain Washer | 1 | 1 1/8 Inch. |
| 3041559 | Fan Spindle | 1 |
|
| 3062393 | Oil Seal | 1 |
|
| 3419199 | Fan Pulley | 1 |
|
| 3655115 | Roller Bearing | 2 |
|
| 4914995 | Shim | 1 |
|
| 4914998 | Shim | 1 |
|
| 4296936 | Belt, V | 2 |
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 15.2cm*8.9cm*2.9cm |
| Weight | 0.2KG |
