Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / 4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts
4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts
4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts 4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts
4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts 4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts
4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts 4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts

loading

4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core Original Cummins Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

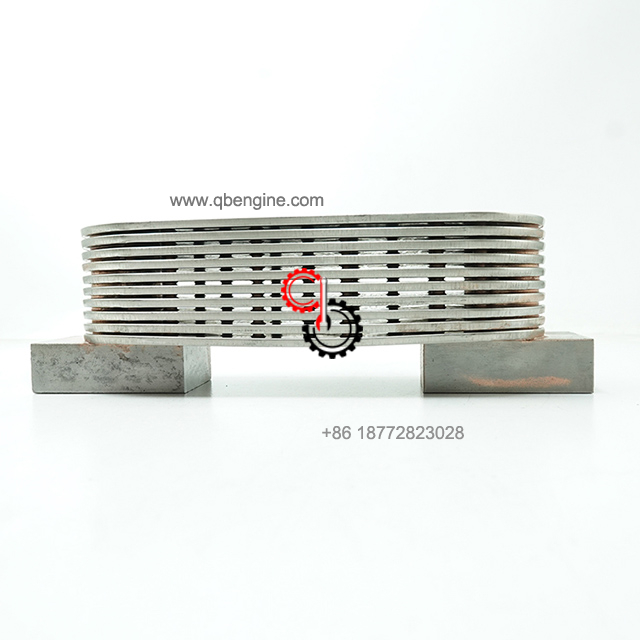

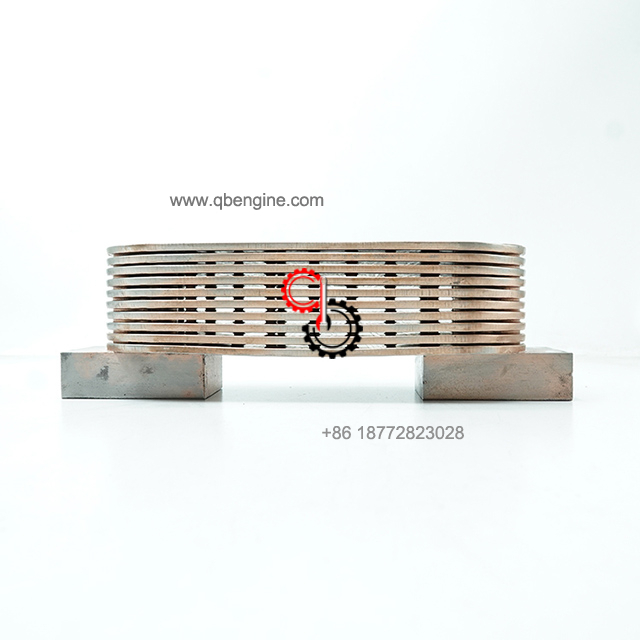

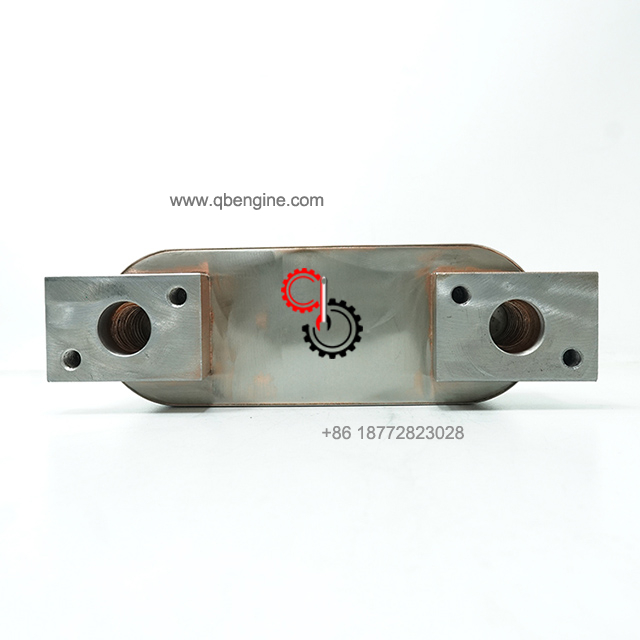

Original Cummins 4095097 206969 3002567 3023079 3331668 3804935 K19 Cooler Core

  • K19

  • Cummins

  • 4095097 206969 3002567 3023079 3331668 3804935

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 4095097 206969 3002567 3023079 3331668 3804935 Cummins Cooler Core details

Electronic Parts Catalogue - Option Detail
Cummins EnginesCummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

LC4733-01 Engine Oil Cooler

Mounting Location: Right Bank

Turbocharger Coolant Supply Provision: Yes

CartRef NoPart NumberPart DescriptionRequiredRemarks


LC4733-01Engine Oil Cooler
Engine Oil Cooler...(More)

S 102 DHexagon Head Cap Screw23/8 - 16 x 3 in.

S 103 DHexagon Head Cap Screw73/8 - 16 x 1 1/4 in.

S 112Hexagon Head Cap Screw13/8 - 16 X 1 in.

S 604Lock Washer393/8 in.

S 923 EDraincock1


S 962Pipe Plug11 NPT.

S 995Pipe Plug13/4 NPT.

103271Hexagon Head Cap Screw143/8 - 16 X 4 in.

108707Hexagon Head Cap Screw13/8 - 16 x 1 1/2 in.

118977Hexagon Head Cap Screw103/8 - 16 X 1 3/4 in.

203518Plain Washer23/8 in.

206973Oil Cooler Core Gasket4


2865108Reducing Pipe Bushing1


3065790Lubricating Oil Cooler Housing Gasket1


3065791Torque Converter Cooler Gasket1


3078053Captive Washer Cap Screw83/8 - 16 x 3 1/2 in.

3227456Oil Cooler Housing1


4020392Lubricating Oil Cooler Cover1


4095097Cooler Core2


3804935Oil Cooler KitA/R


3078053Captive Washer Cap Screw43/8 - 16 x 3 1/2 in.

4095097Cooler Core1


SHIPMENT CHARACTERISTICS

Length * Width * Height29cm*10cm*10cm
Weight3.54kg
