Cummins QSK78 Electronic Control Pressure Valve 4088180 4088181

  • QSK78

  • Cummins

  • 4088180 4088181

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK78 Electronic Control Pressure Valve 4088180 4088181 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60   CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60   CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

4088180

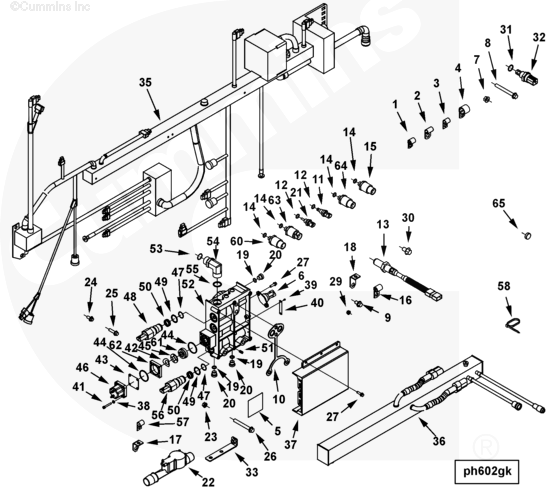

Cart Ref No Part Number Part Description Required Remarks


PH6771-01 Engine Control Module
Engine control module...(More)
1 68152 Clip 1 #4
2 68152 B Clip 1

3 68425 Clip 1

4 69465 Clip 1

5 3066855 Dataplate 1

6 3085140 Pressure Sensor 1 Ambient Air
7 3093828 Hexagon Flange Nut 1 M10 X 1.50.
8 3093936 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 90
9 3093957 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 16
10 3332183 Connection Gasket 1


3408345 Temperature Sensor 1 Coolant or Intake Manifold
11 3408346 Temperature Sensor 1

12 4010519 O-Ring Seal 1

13 3408471 Speed Sensor 1 Flywheel.

3408556 Pressure Sensor 2 Coolant or Intake Manifold
14 3330202 O-Ring Seal 1

15 3408557 Pressure Sensor 1

16 3627412 Clip 2

17 3628553 Tube Brace 1

18 3628585 Tube Brace 1


3678921 Threaded Plug 1 M14 X 1.5 X 16
19 3678912 O-Ring Seal 1 M14
20 3678922 Threaded Plug 1 M14 X 1.5 X 16

3865346 Temperature Sensor 1 Coolant Or Oil Or Fuel.
21 3096153 Temperature Sensor 1 Coolant or Oil
12 4010519 O-Ring Seal 1

22 3867561 Blowby Flow Sensor 1 Blowby flow.
23 3900589 Hexagon Flange Nut 2 M8 X 1.25
24 3900629 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 16
25 3900630 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 20
26 3900679 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 80.
27 3901865 Hexagon Flange Head Cap Screw 2 M6 X 1.00 X 20.
29 3906216 Hexagon Flange Nut 1 M6 X 1.00.
30 3913372 Hexagon Flange Head Cap Screw 1 M12 X 1.75 X 20.

4065972 Oil Level Sensor 1 Oil.
31 3089240 O-Ring Seal 1 M22
32 4065973 Fluid Level Sensor 1 Oil.
33 4066935 Wiring Brace 1

35 3635257 Electronic Control Module Wiring  Harness 1

36 4086486 Electronic Control Module Wiring  Harness 1


4088180 Electronic Control Pressure Valve


37 3867743 Electronic Control Module 1


4088180 Electronic Control Pressure Valve 1

38 S 607 Lock Washer 4 #10
39 S 2286 Drive Screw 2 3/16 in.
40 105375 Nameplate 1

41 118226 Socket Head Cap Screw 4 #10 - 24 x 1 1/4 in.
42 129768 Valve Spring 1

43 129839 Shut-Off Valve Shield 1

44 129888 Rectangular Ring Seal 2

45 196057 Valve Disc 1

46 3021420 Solenoid 1


3347907 Electronic Fuel Control Actuator 2 ECVA Fuel Rail Actuator
47 3042542 O-Ring Seal 1

48 3348442 Electronic Fuel Control Actuator 1

49 3865398 O-Ring Seal 1

50 3867393 Filter Screen 1


3330658 Control Valve Body 1

51 3329693 Threaded Insert 8

52 3330657 Control Valve Body 1


3331818 Male Union Elbow 1

53 3085709 O-Ring Seal 1

54 3331819 Male Union Elbow 1

55 3678606 O-Ring Seal 1 M27 X 2.00

3330602 Electronic Fuel Control Actuator 1

56 3331031 Electronic Fuel Control Actuator 1

64 3408563 Pressure Sensor 1 Fuel Supply

3408564 Pressure Sensor 1 Timing Rail
60 3408565 Pressure Sensor 1 Timing Rail

3678921 Threaded Plug 4 M14 X 1.5 X 16

3865346 Temperature Sensor 1 Coolant Or Oil Or Fuel.
61 4088274 Actuator Disc 1

62 4088863 Actuator Housing 1


4088734 Pressure Sensor 1 Oil.
63 4088735 Pressure Sensor 1

57 4100552 Clip 7

58 3062329 Wire Tie Clamp 4

65 4017050 Protective Cover 3


SHIPMENT CHARACTERISTICS
Length * Width * Height 33cm*33cm*13cm
Weight 5.157kg
