Genuine QSK60 Cummins Wiring Harness 4065244

  • QSK60

  • Cummins

  • 4065244

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

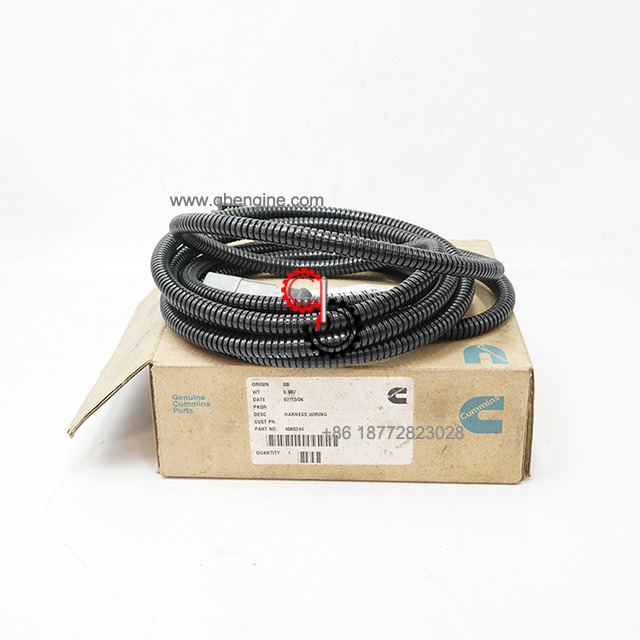

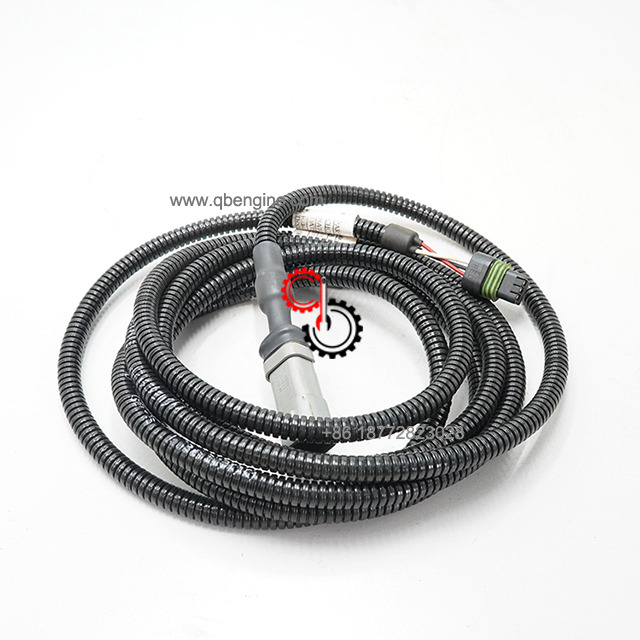

Genuine QSK60 Cummins Wiring Harness 4065244 In Stock

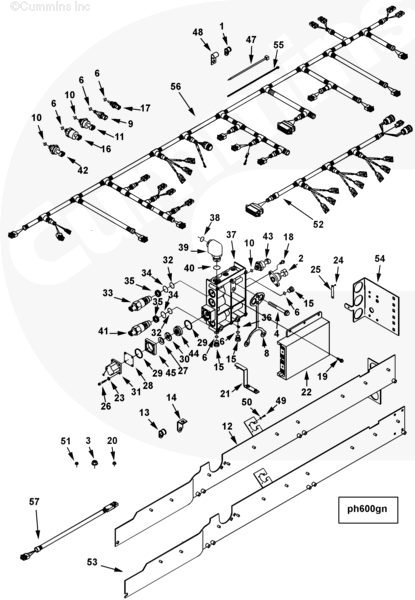

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM2350 K130, QSK50 CM850  MCRS, QSK50 DF CM850/CM2150 MCRS

4065244

Cart Ref No Part Number Part Description Required Remarks


PH6708 Engine Control Module
Module, engine control...(More)
1 108722 Clip 2

2 3085140 Pressure Sensor 1 Ambient Air
3 3093828 Hexagon Flange Nut 1 M10 X 1.50.
4 3093936 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 90

3160404 Pressure Sensor 1 Coolant or intake m
5 3160405 Pressure Sensor 1

6 3678912 O-Ring Seal 1 M14
7 3171775 Clip 2

8 3332183 Connection Gasket 1


3408345 Temperature Sensor 1 Coolant or Intake Manifold
9 3408346 Temperature Sensor 1 Air Temperature
6 3678912 O-Ring Seal 1 M14

3408347 Pressure Sensor 1 Coolant or intake m
10 3330202 O-Ring Seal 1

11 3408348 Pressure Sensor 1

12 3410522 Wiring Brace 1

13 3627412 Clip 1

14 3628585 Tube Brace 1


3678921 Threaded Plug 1 M14 X 1.5 X 16
6 3678912 O-Ring Seal 1 M14
15 3678922 Threaded Plug 1 M14 X 1.5 X 16

3865337 Pressure Sensor 1 Oil.
6 3678912 O-Ring Seal 1 M14
16 3865373 Pressure Sensor 1 Oil.

3865346 Temperature Sensor 1 Coolant Or Oil Or Fuel.
17 3096153 Temperature Sensor 1 Coolant or Oil
6 4010519 O-Ring Seal 1

18 3900626 Hexagon Flange Head Cap Screw 5 M6 x 1.00 x 12
19 3901865 Hexagon Flange Head Cap Screw 14 M6 X 1.00 X 20.
20 3906216 Hexagon Flange Nut 17 M6 X 1.00.
21 4001004 Cable Bracket 1

22 3867743 Electronic Control Module 1


3408411 Electronic Control Pressure Valve 1

23 S 607 Lock Washer 4 #10
24 S 2286 Drive Screw 2 3/16 in.
25 105375 Nameplate 1

26 118226 Socket Head Cap Screw 4 #10 - 24 x 1 1/4 in.
27 129768 Valve Spring 1

28 129839 Shut-Off Valve Shield 1

29 129888 Rectangular Ring Seal 2

30 196057 Valve Disc 1

31 3021420 Solenoid 1


3330601 Electronic Fuel Control Actuator 2

32 3042542 O-Ring Seal 2

33 3331030 Electronic Fuel Control Actuator 2

34 3865398 O-Ring Seal 2

35 3867393 Filter Screen 2


3330658 Control Valve Body 1

36 3329693 Threaded Insert 8

37 3330657 Control Valve Body 1


3331818 Male Union Elbow 1

38 3085709 O-Ring Seal 1

39 3331819 Male Union Elbow 1

40 3678606 O-Ring Seal 1 M27 X 2.00

3347906 Electronic Fuel Control Actuator 1

32 3042542 O-Ring Seal 1

41 3348441 Electronic Fuel Control Actuator 1

34 3865398 O-Ring Seal 1

35 3867393 Filter Screen 1


3408379 Pressure Sensor 1 Fuel rail.
10 3330202 O-Ring Seal 1

42 3408380 Pressure Sensor 1 Fuel rail.

3408381 Pressure Sensor 1 Timing rail.
10 3330202 O-Ring Seal 1

43 3408382 Pressure Sensor 1 Timing rail.
44 3408424 Actuator Disc 1

45 3417102 Actuator Housing 1


3678921 Threaded Plug 4 M14 X 1.5 X 16
6 3678912 O-Ring Seal 4 M14
15 3678922 Threaded Plug 4 M14 X 1.5 X 16

3865346 Temperature Sensor 1 Coolant Or Oil Or Fuel.
17 3096153 Temperature Sensor 1 Coolant or Oil
6 3678912 O-Ring Seal 1 M14
47 3089275 Wire Tie Clamp 1

48 3171394 Clip 4

49 3171451 Pan Head Cap Screw 4

50 3171470 Plain Washer 4

51 3282074 Hexagon Flange Nut 3

52 4000679 Wiring Harness 1

53 4000817 Wiring Brace 1

54 4001529 Wiring Brace 1

55 4001537 Wire Tie Clamp 1

56 4015900 Electronic Control Module Wiring  Harness 1

57 4065244 Wiring Harness 1


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
