Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / 4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19

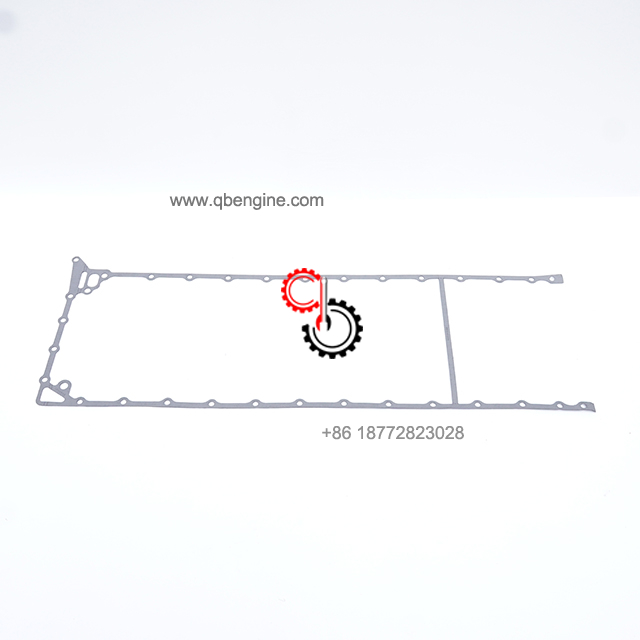

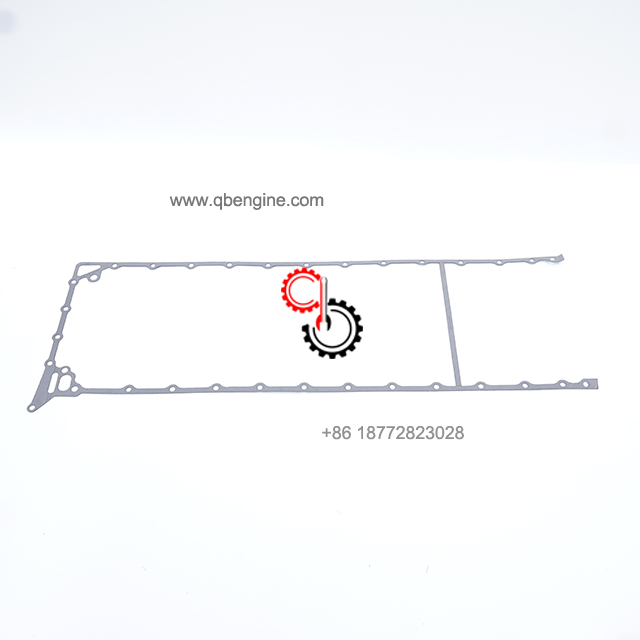

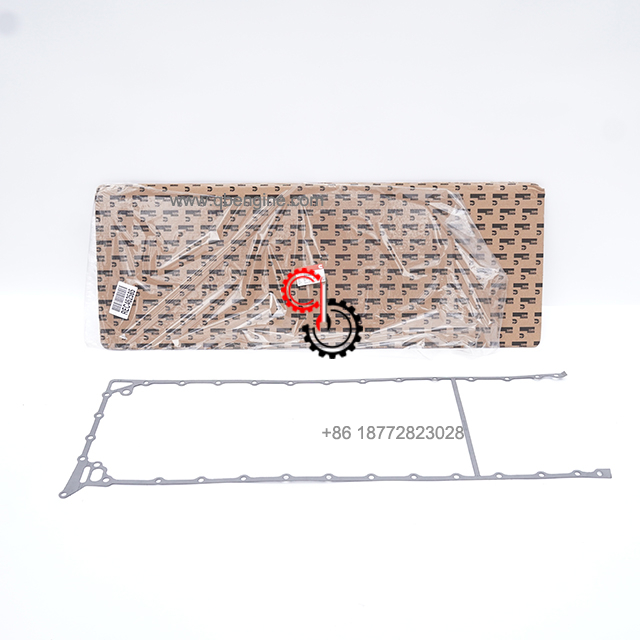

4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19
4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19 4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19
4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19 4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19
4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19 4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19

loading

4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
4000595 K19 Original Cummins Oil Pan Adapter Gasket QSK19

  • 4000595

  • Cummins

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Supersession Part Number:
4000595
3081611
4371877
weight(kg):
1.38
size(cm):
60cm*26cm*20cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

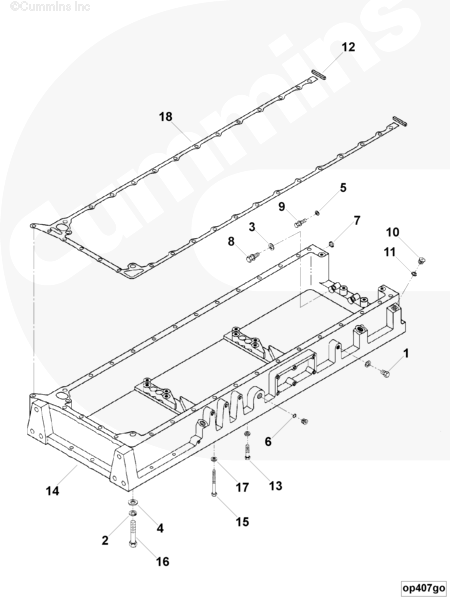

Cummins Electronic Parts Catalog - Option Detail
Engines Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

4000595

Cart Part Number Part Description Required
Remarks

OP4730-01 Oil Pan Adapter

Oil Pan Adapter...(More)
1 S 181 C Hexagon Head Cap Screw 1 1/2 - 20 X 3/4 in.
2 S 609 Lock Washer 1 9/16 in.
3 S 622 Plain Washer 2 3/8 in.
4 S 689 Plain Washer 1 1/2 in.
5 127362 Plain Washer 2 3/8 in.
6 130914 Sealing Washer 1

7 153518 Rectangular Ring Seal 4

8 3012481 Captive Washer Cap Screw 2 7/16 - 14 x 1 1/2 in.
9 3035624 Captive Washer Cap Screw 5 3/8 - 16 X 1 1/2 in.

3037536 Threaded Plug 2 9/16 - 18 UNF
10 3037537 O-Ring Seal 1

11 3040813 Threaded Plug 1
9/16 - 18 UNF
12 3069844 Rectangular Strip Seal 2

13 3070679 Hexagon Head Cap Screw 19 3/8 - 16 X 1 3/4 in
14 3085736 Oil Pan Adapter 1

15 3085751 Hexagon Head Cap Screw 11

16 3085753 Hexagon Head Cap Screw 1

17 3085886 Plain Washer 30

18 4000595 Oil Pan Adapter Gasket 1


3804727 Oil Pan Adapter Kit A/R K19 Pan Adapter Kit

3070679 Hexagon Head Cap Screw 19 3/8 - 16 X 1 3/4 in

3085751 Hexagon Head Cap Screw 11


3085752 Hexagon Head Cap Screw 2 7/16 - 14 x 4.5

3085753 Hexagon Head Cap Screw 1


3085886 Plain Washer 30


3160923 Oil Pan Adapter 1


4000595 Oil Pan Adapter Gasket 1

Additional Parts are also available. Check with Qingbang Online Service.
