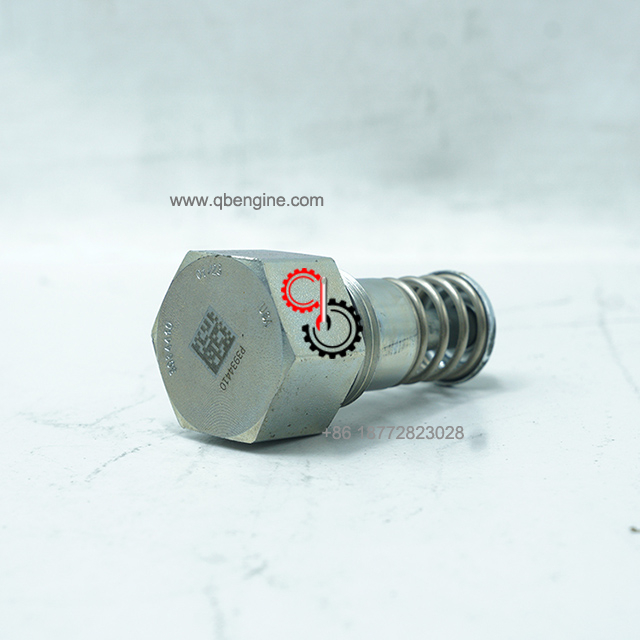

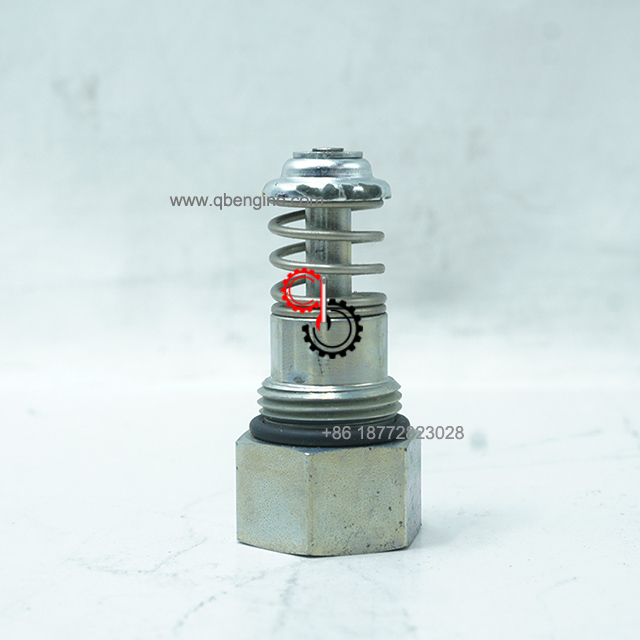

3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts
3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts 3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts
3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts 3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts
3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts 3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts

loading

3934410 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
3934410 3919015 3920326 3923477 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts

  • ISL QSL

  • Cummins

  • 3934410 3919015 3920326 3923477

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

3934410 3919015 3920326 3923477 ISL QSL Original Cummins Bypass Valve Diesel Engine Parts

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts 6C8.3, C GAS PLUS CM556, G8.3, G8.3 CM558, GTA8.3 CM558, ISC CM2150, ISC CM554, ISC CM850, ISC8.3 CM2250, ISC8.3 G CM2180 C101, ISL CM2150, ISL CM554, ISL CM850, ISL G CM2180, ISL8.9 CM2150 L110, ISL8.9 CM2880 L112, ISL9 CM2150 SN, ISL9 CM2250, ISL9 CM2350 L101, ISL9 CM2350 L111, ISLE4 CM850, L GAS PLUS CM556, L8.9, L8.9 L121, L8.9G CMOH2.0 L125B, L9 CM2350 L116B, L9 CM2350 L119B, L9 CM2350 L120C, L9 CM2350 L123B, L9.3 L105, L9.5 L117, L9N CM2380 L124B, QSC8.3 CM2250, QSC8.3 CM2880 C102, QSC8.3 CM554, QSC8.3 CM850(CM2850), QSL9 CM2250, QSL9 CM2250 L115, QSL9 CM2350 L102, QSL9 CM2350 L107, QSL9 CM2350 L118, QSL9 CM2350 L122, QSL9 CM554, QSL9 CM850(CM2850), QSL9 G CM558, QSL9 M CM2250 L106, QSL9.3 CM2880 L113

3934410

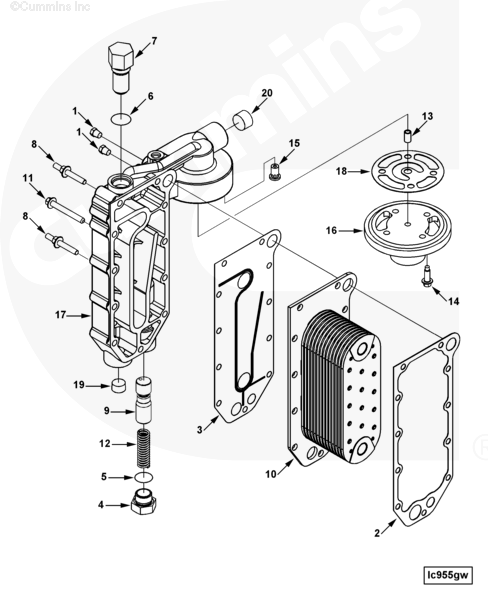

Cart Ref No Part Number Part Description Required Remarks


LC9765-10 Engine Oil Cooler
Engine Oil Cooler...(More)
1 3906619 Pipe Plug 2 1/8 NPT.
2 3918174 Oil Cooler Core Gasket 1

3 3929011 Lubricating Oil Cooler Cover Gasket 1


3931084 Threaded Plug 1

4 3930910 Threaded Plug 1

5 3930911 O-Ring Seal 1


3934410 Bypass Valve 1

6 3201562 O-Ring Seal 1

7 3934278 Bypass Valve 1

8 3944874 Studded Flange Cap Screw 3

9 3945967 Pressure Regulator Plunger 1 Use W/Dump to Sump ISL Block.
10 5284362 Cooler Core 1

11 3966976 Hexagon Flange Head Cap Screw 8 M8 x 1.25 x 65
12 3970655 Compression Spring 1


3974326 Lubricating Oil Filter Head 1

13 118227 Ring Dowel 1

14 3907860 Hexagon Flange Head Cap Screw 4 M8 x 1.25 x 25
15 3936365 Pressure Relief Valve 1

16 3966885 Lubricating Oil Filter Head 1

17 3974324 Lubricating Oil Cooler Cover 1

18 3992092 Connection Gasket 1

19 4931643 Pipe Plug 1 1/2 NPT
20 3008469 Pipe Plug 1 3/4 NPT

Additional Parts are also available. Check with Qingbang Online Service.
