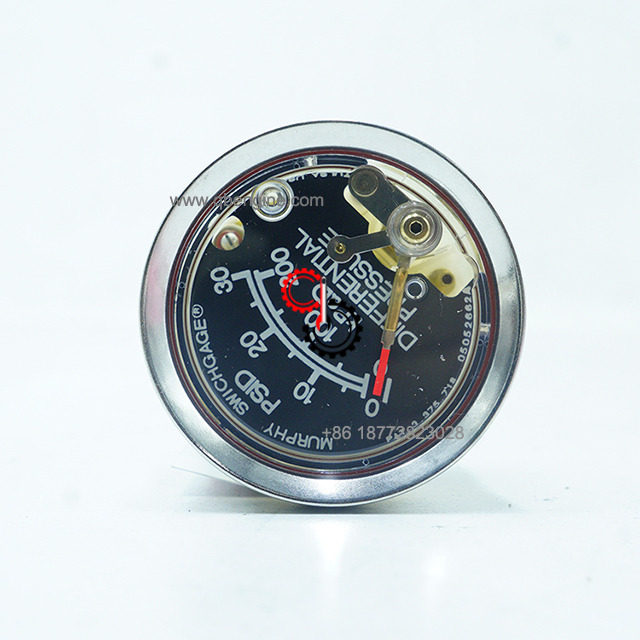

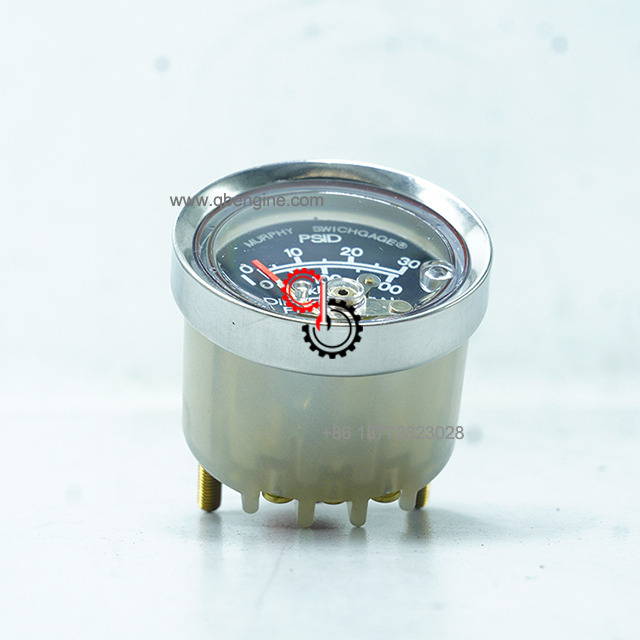

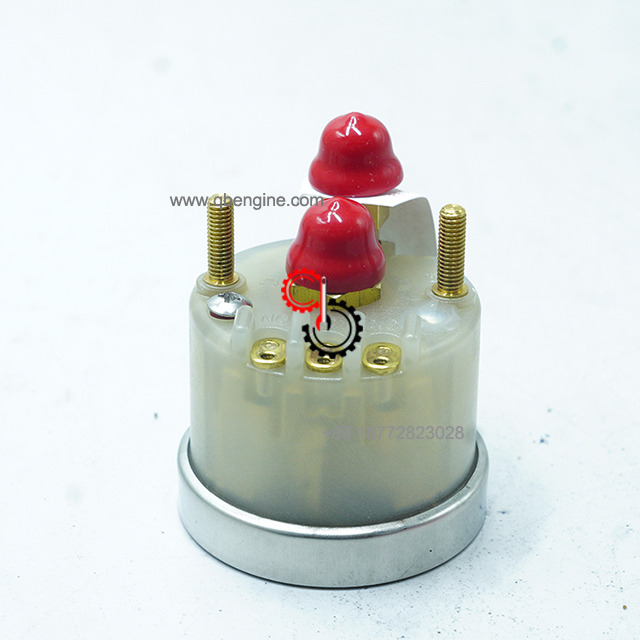

Cummins Pressure Gauge 3866089

  • original

  • Cummins

  • 3866089

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Pressure Gauge 3866089 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines GTA38, K38, KTA38GC  CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3866089

Ref No Part Number Part Description Required Remarks

LF6038-05 Lubricating Oil Filter
Lube oil filter...(More)
1 112105 Male Adapter Elbow 2

3012565 Filter Head Mounting Lubricating  Oil 1
2 127362 Plain Washer 12 3/8 in.
3 191772 Twelve Point Cap Screw 12 3/8 - 16 X 1 1/4 in.
4 3643837 Filter Head Gasket 2

3022893 Connection , Oil Transfer 1
5 S 199 B Hexagon Head Cap Screw 6 3/8 - 16 3 3/4 in.
6 S 604 Lock Washer 6 3/8 in.
7 3021132 Oil Transfer Connection 1
8 3628605 Pipe Plug 1 1/4 - 18.

3022894 Shut-Off Valve 1
9 145578 O-Ring Seal 1
10 152364 Pan Head Cap Screw 1 5/16 - 24 X 5/8 Inch.
11 3637978 Shut-Off Valve Rotor 1

3022895 Cover Plate 1
12 S 113 Hexagon Head Cap Screw 4 1/2 - 13 x 1 1/2 in.
13 S 608 Lock Washer 4 1/2 in.
14 3021133 Cover Plate 1
15 3021134 Cover Plate Gasket 1
16 3313305 Lubricating Oil Filter Element 4 No service kit.
17 3393576 Decal 4
18 3632021 Instrument Bracket 1
19 3866089 Pressure Gauge 1
20 3866090 Plain Adapter 2
21 3963452 Flexible Hose 2

4078634 Head , Lubrication Oil Filter 1
22 69558 Pin Dowel 1
23 205659 Compression Spring 1
24 3021618 Pressure Regulator Plunger 1
25 3028552 Bypass Valve Body 1

3080495 Pressure Regulator Valve 1
23 205659 Compression Spring 1

3040818 Threaded Plug 1 1 3/16 - 12 UN
26 3035228 O-Ring Seal 1
27 3040819 Threaded Plug 1
28 3627927 Pressure Regulator Plunger 1

4078640 Lube Oil Filter Head 1
29 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 x 1 1/4 in.
30 3177433 Cover Plate 1
31 3627309 Filter Head Adapter 4
32 3628604 Pipe Plug 1 1/8 - 27 X 0.3 in.
33 3629141 Lubricating Oil Filter Cover  Gasket 1
34 3630432 Lubricating Oil Filter Head 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 3cm*4.625cm*2.875cm
Weight 0.252KG


Additional parts are also available. Check with Qingbang Online Service.


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
