Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / 3804705 3096480 QSK Cummins Seal Kit Brand New Diesel Engine Parts

3804705 3096480 QSK Cummins Seal Kit Brand New Diesel Engine Parts

Name: 3804705 3096480 QSK Cummins Seal Kit Brand New Diesel Engine Parts
Brand: Cummins
Rating: 5.0 (83 reviews)

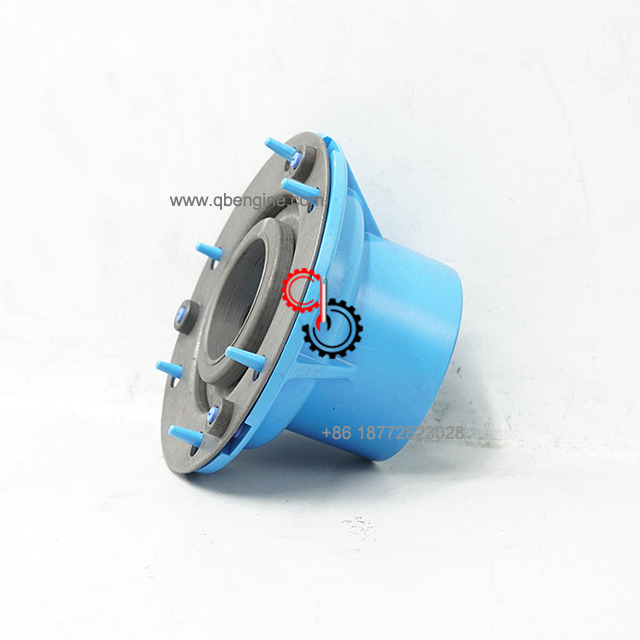

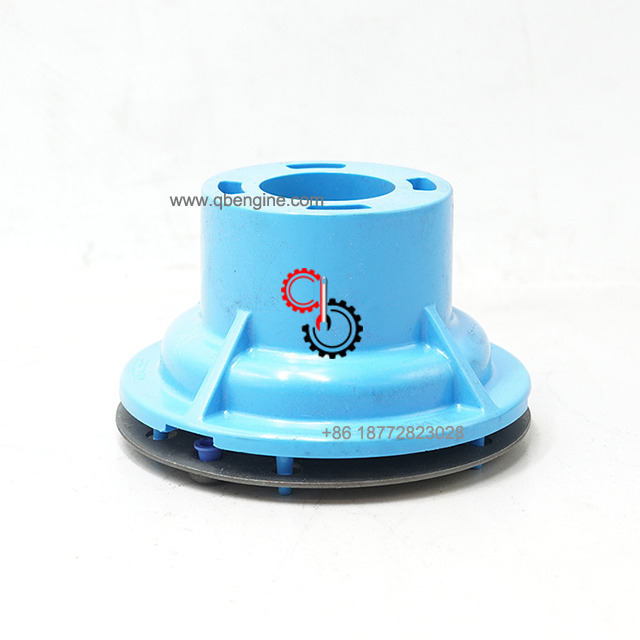

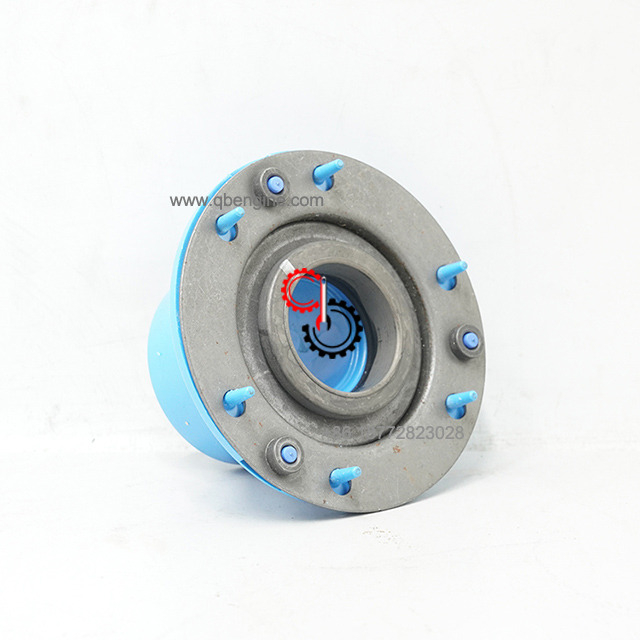

Brand New QSK Cummins Seal Kit 3804705 3096480

Model:
QSK
Brand:
Cummins
Code:
3804705 3096480
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Brand New QSK Cummins Seal Kit 3804705 3096480 In Stock

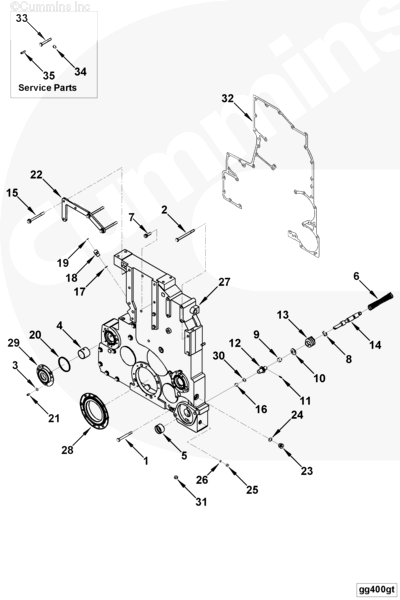

Electronic Parts Catalog - Option Detail
Cummins Engines	Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, KTAA19 K131G, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM2350 K114, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3804705

Cart	Ref No	Part Number	Part Description	Required	Remarks
		GG4718	Front Gear Cover		Front Gear Cover
1	S 169 A	Hexagon Head Cap Screw	2	3/8 - 16 X 4 1/2".
2	3085751	Hexagon Head Cap Screw	8
3	127362	Plain Washer	14	3/8 in.
4	132770	Bushing	2
5	205133	Bushing	1
6	3009620	Compression Spring	1
7	3010596	Captive Washer Cap Screw	3	3/8 - 16 X 1 1/4 in.
8	3015525	Retaining Ring	1
	3018914	Barring Shaft Guide	1
9	3018909	Bushing	1
10	3018910	Thrust Bearing	1
11	3018911	Spiral Pin	1
12	3019154	Barring Shaft Guide	1
13	3019152	Barring Drive Gear	1
14	3019153	Barring Shaft	1
15	3042890	Captive Washer Cap Screw	3	3/8 - 16 X 4 in.
16	3059831	Drive Plug	1
	3081950	Male Union	1	1 - 14 X 3/4 - 16.
17	3037537	O-Ring Seal	1
18	3085824	Male Union	1	Service as 3081950.
19	3922794	O-Ring Seal	1
20	3086120	Rectangular Ring Seal	1
21	3086121	Round Head Cap Screw	14
22	3086291	Clamping Plate	1
	3090327	Gear Cover	1
	3046202	Threaded Plug	3	3/4 - 16 UNF.
23	3040810	Threaded Plug	1
24	3046201	O-Ring Seal	1
	3066325	Threaded Plug	5	3/8 - 24 UNF.
25	3034412	O-Ring Seal	1
26	3066324	Threaded Plug	1
27	3090326	Gear Cover	1
28	3096478	Oil Seal	1	Serviced as 3804703.
29	3096480	Oil Seal	1	Serviced as 3804705.
30	3201125	O-Ring Seal	1
31	3201128	Regular Hexagon Nut	1	3/8 - 16 UNC.
32	4080829	Gear Cover Gasket	1
	3804703	Front Crankshaft Seal Kit	A/R
28	3096478	Oil Seal	1	Serviced as 3804703.
33	3090392	Hexagon Head Cap Screw	4
35	3096361	Pin Dowel	1
	3090391	Seal Installation Tool	1	Serviced as 3804703.
	3804705	Accessory Drive Seal Kit	A/R
20	3086120	Rectangular Ring Seal	1
29	3096480	Oil Seal	1	Serviced as 3804705.
33	3090392	Hexagon Head Cap Screw	3
34	3200287	Keyway Seal	1
	3090395	Seal Installation Tool	1	Serviced as 3804705.

SHIPMENT CHARACTERISTICS
Length * Width * Height	17cm17cm11cm
Weight	0.5kg

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

excavator seal kit 3804705 cummins seal kit front drive oil seal Cummins Seal Kit Drive oil seal cummins seal kit 3096480 kit seal seal kit 3096480 3804705
