Cummins / Cummins Parts / Piston, Cylinder Liner, Connecting Rod, Bearing, Bushing / 3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts
3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts
3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts 3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts
3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts 3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts
3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts 3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts

loading

3804664 4953572 Cummins QSK19 Piston Cooling Nozzle Original Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QSK19 Piston Cooling Nozzle 3804664 4953572

  • QSK19

  • Cummins

  • 3804664 4953572

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK19 Piston Cooling Nozzle 3804664 4953572 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19  CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850  MCRS, QSK19G

4953572

Cart Ref No Part Number Part Description Required Remarks

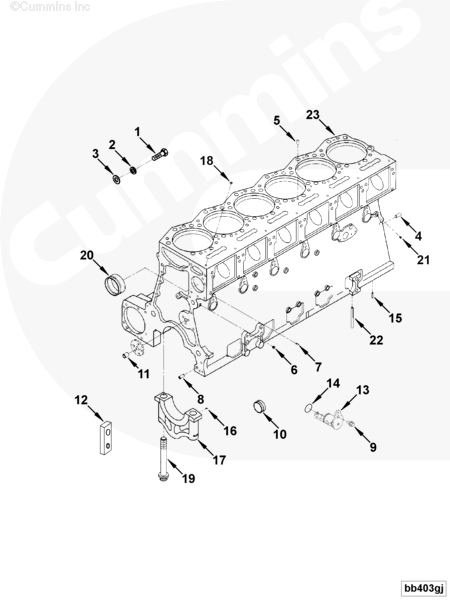

BB4712-06 Cylinder Block
Cylinder Block...(More)
1 S 103 A Hexagon Head Cap Screw 1 5/8 - 11 X 2 in.
2 S 603 Lock Washer 1 5/8 in.
3 S 658 Plain Washer 1 5/8 in.
4 60408 Pin Dowel 2

5 68445 Groove Pin 12

6 69558 Pin Dowel 6

7 70645 Pin Dowel 1

8 102957 Diamond Dowel 1

9 3067954 Captive Washer Cap Screw 6 3/8 - 16 X 3/4"
10 3081724 Split Ring Seal 6

11 3081750 Ring Dowel 12

12 3098934 Adapter Connection 2

13 4953572 Piston Cooling Nozzle 6

14 4922335 O-Ring Seal 6


4924643 Cylinder Block 1 Serviced as 3804929
15 67211 Pin Dowel 2

16 124921 Pin Dowel 2

17 205021 Main Bearing Cap 4

17 205022 Main Bearing Cap 1

17 205023 Main Bearing Cap 1

17 205075 Main Bearing Cap 1

18 3007632 Expansion Plug 7

19 3025482 Twelve Point Cap Screw 14

20 3081677 Bushing 7

21 3628605 Pipe Plug 1 1/4 - 18.
22 3811993 Lubricating Oil Transfer Tube 1

23 4924642 Cylinder Block 1


3804929 Cylinder Block A/R


SHIPMENT CHARACTERISTICS
Length * Width * Height 21cm*6.5cm*10cm
Weight 0.4kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
