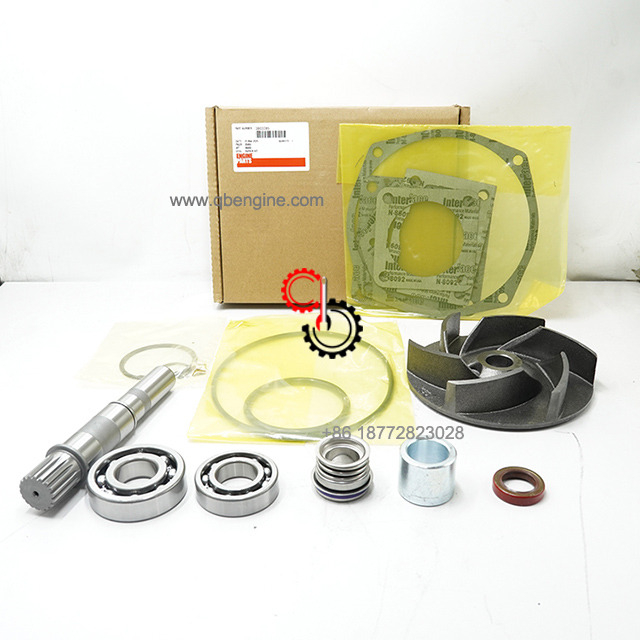

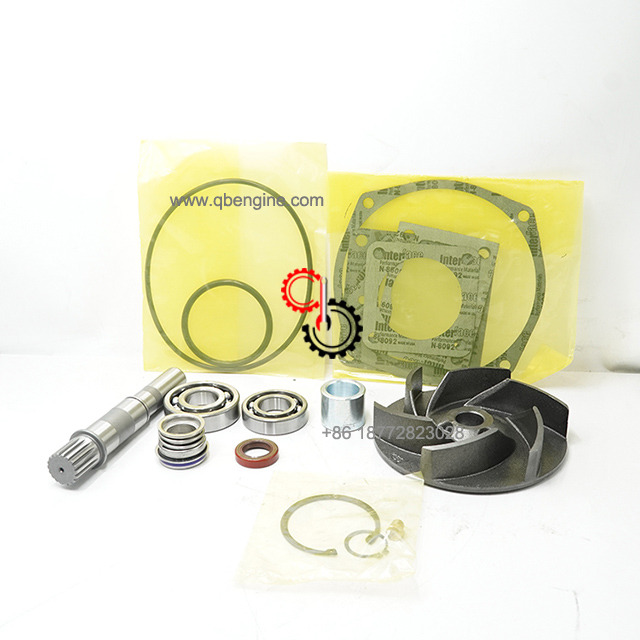

Genuine Water Pump Repair Kit 3803285 3803284

  • K38 K50

  • Cummins

  • 3803285 3803284

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Genuine Water Pump Repair Kit 3803285 3803284 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60   CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60   CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3803284

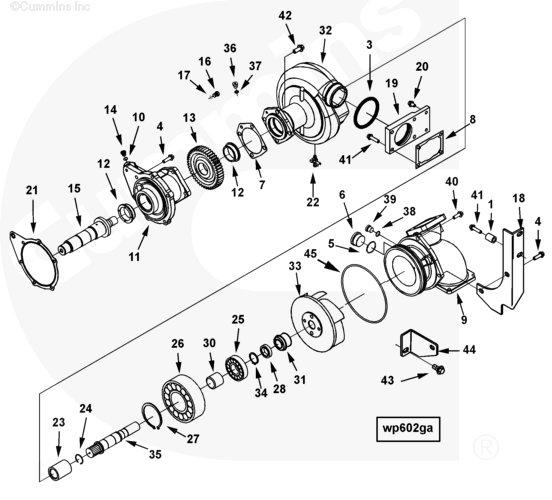

Cart Ref No Part Number Part Description Required Remarks


WP6012-18 Water Pump
Water Pump Arrangement
1 64709 Mounting Spacer 1

3 3007512 O-Ring Seal 1

4 3089016 Hexagon Flange Head Cap Screw 7 M10 X 1.50 X 35.

3089023 Threaded Plug 1 M42 X 2.00 X 19.5.
5 3089019 O-Ring Seal 1 M42.
6 3089021 Threaded Plug 1 M42 X 2.00 X 19.5.
7 3089261 Water Pump Gasket 1

8 3089262 Water Pump Gasket 1

9 3089731 Water Inlet Connection 1


3647120 Water Pump Support 1

10 3634019 Expansion Plug 1


4066278 Water Pump Support 1

11 4066279 Water Pump Support 1

12 3089409 Bushing 2

13 3646082 Accessory Drive Gear 1

14 3089412 Orifice Plug 1

15 3332037 Water Pump Shaft 1


3678923 Threaded Plug 1 M10 X 1.00 X 13.5
16 3678924 Threaded Plug 1 M10 X 1.00 X 13.5
17 3678925 O-Ring Seal 1 M10.
18 4007215 Connection Bracket 1

19 4016906 O-Ring Adapter 1

20 3903990 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 20.
21 3332299 Water Pump Support Gasket 1


3647028 Water Pump 1

22 3638582 Draincock 1

23 206195 Spline Coupling Sleeve 1

24 206196 Retaining Ring


25 S 16054 Ball Bearing 1

26 S 16069 Ball Bearing 1

27 70183 Retaining Ring 1

28 3643960 Oil Seal 1

30 3030487 Bearing Spacer 1

31 3634007 Water Pump Seal 1

32 3645598 Water Pump Body 1

33 3172019 Water Pump Impeller 1

34 3175573 Retaining Ring 1

35 3643961 Water Pump Shaft 1


3004259 Expansion Plug 1 Item Not Shown In Art.

3008466 Pipe Plug 1 Item Not Shown In Art.

3678921 Threaded Plug 1 Item Not Shown In Art.

3678912 O-Ring Seal 1 Item Not Shown In Art.

3678922 Threaded Plug 1 Item Not Shown In Art.

3678610 Threaded Plug 2 M12 x 1.50
36 3678602 Threaded Plug 1 M12 x 1.50 THD
37 3678603 O-Ring Seal 1


3678873 Threaded Plug 1 M18 X 1.5 X 19.5
38 2678786 O-Ring Seal 1 M18
39 3678791 Threaded Plug 1 M18 X 1.5 X 19.5
40 3903112 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 30.
41 3903464 Hexagon Flange Head Cap Screw 5 M10 X 1.50 X 40.
42 3910495 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 30.
43 3901249 Hexagon Flange Head Cap Screw 1 M12 X 1.75 X 25.
44 4007216 Connection Bracket 1

45 206457 O-Ring Seal 1


3650017 Water Drain Tube 1 Item Not Shown In Art.

3651195 Debris Shield 1 Item Not Shown In Art.

4376121 Water Pump Kit A/R

1 206457 O-Ring Seal 1

2 3007512 O-Ring Seal 1

6 3089261 Water Pump Gasket 1

9 3252438 Tube Connector 1


3650016 Water Drain Tube 1

20 3650017 Water Drain Tube 1

21 3651195 Debris Shield 1


4372337 Water Pump 1


3803284 Water Pump Repair Kit A/R

1 206457 O-Ring Seal 1

34 S 16054 Ball Bearing 1

35 S 16069 Ball Bearing 1

36 70183 Retaining Ring 1

42 3175573 Retaining Ring 1

43 3634007 Water Pump Seal 1

45 3643960 Oil Seal 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 23.7cm*17.7cm*20.4cm
Weight 3.8kg
