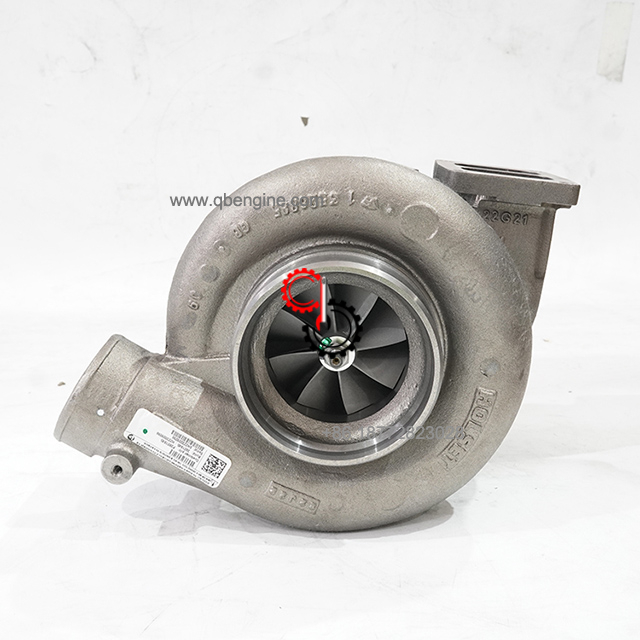

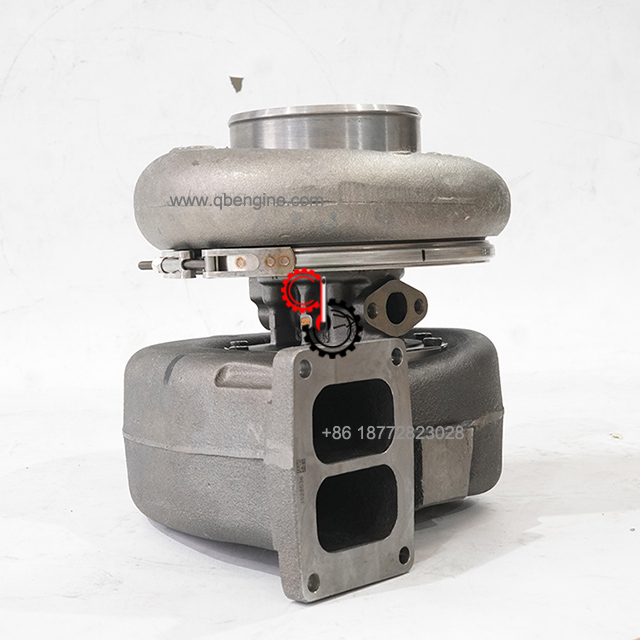

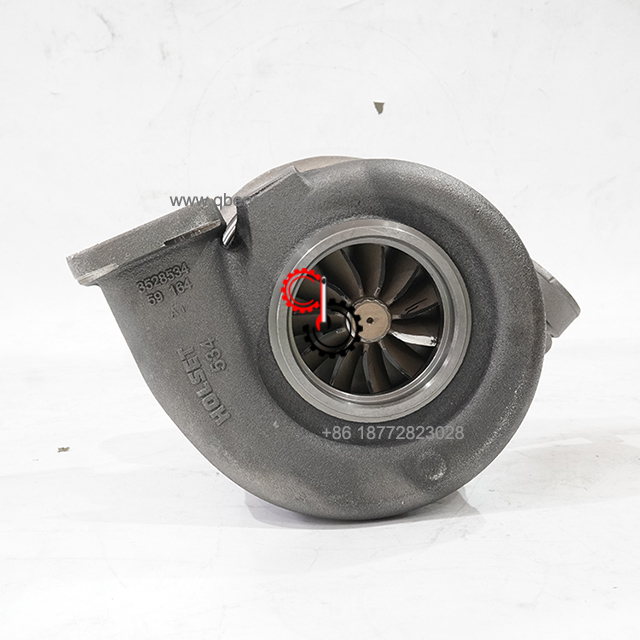

Genuine Cummins 3801845 3594102 3594101  KTTA50-C2000 K2000E  Turbocharger

  • KTTA50-C2000 K2000E

  • Cummins

  • 3801845 3594102 3594101

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Genuine Cummins 3801845 3594102 3594101  KTTA50-C2000 K2000E  Turbocharger In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

3801845

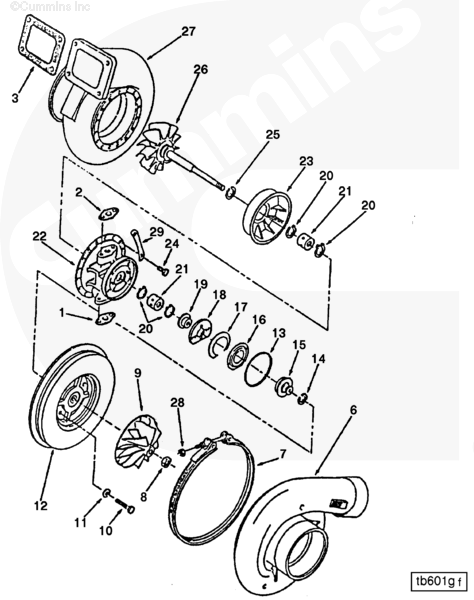

Cart Ref No Part Number Part Description Required Remarks


PP2309-03 Turbocharger


         3801845 Turbocharger Kit 2 Recon equivalent 3801845 RX
1 201048 Connection Gasket 1

2 201049 Connection Gasket 1

3 3177942 Turbocharger Gasket 1


3594101 Turbocharger 1

6 3527318 Compressor Housing 1

7 3522631 V Band Clamp 1

8 3519535 Lock Nut 1 M11 x 1.00
9 3523420 Turbocharger Compressor Impeller 1

10 3525073 Hexagon Head Set Screw 4 M8 x 1.25 x 25
11 3504967 Plain Washer 4 Holset Part Sold Only In Kits
12 3524863 Turbocharger Diffuser 1

13 3502449 Rectangular Ring Seal 1

14 3521442 Split Ring Seal 1

15 3523980 Oil Slinger 1

16 3524419 Oil Baffle 1

17 3524418 Shim 1

18 3536914 Turbocharger Thrust Bearing 1

19 3591522 Thrust Collar 1

20 3519641 Retaining Ring 4

21 3519627 Turbocharger Bearing 2

22 3594555 Turbocharger Bearing Housing 1

23 3536588 Turbocharger Heat Shield 1

24 3521225 Hexagon Head Set Screw 8 M8 X 1.25 X 16.
25 3523412 Split Ring Seal 1

26 3521034 Shaft Wheel Rotor 1

27 3528536 Turbine Housing 1

28 3503335 Regular Hexagon Nut 1

29 3522904 Lock Plate 4


SHIPMENT CHARACTERISTICS
Length * Width * Height 38cm*32cm*36cm
Weight 46kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
