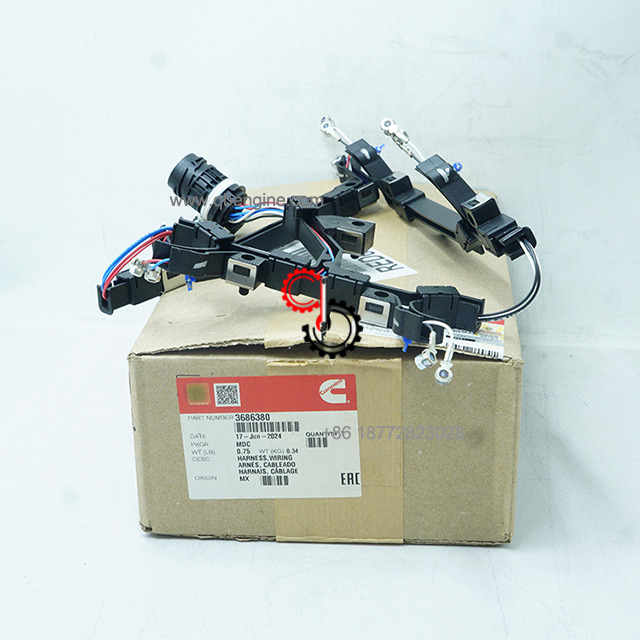

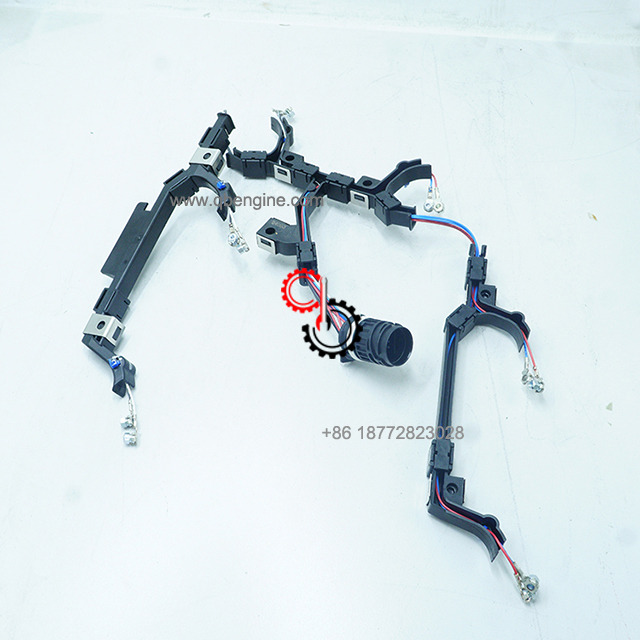

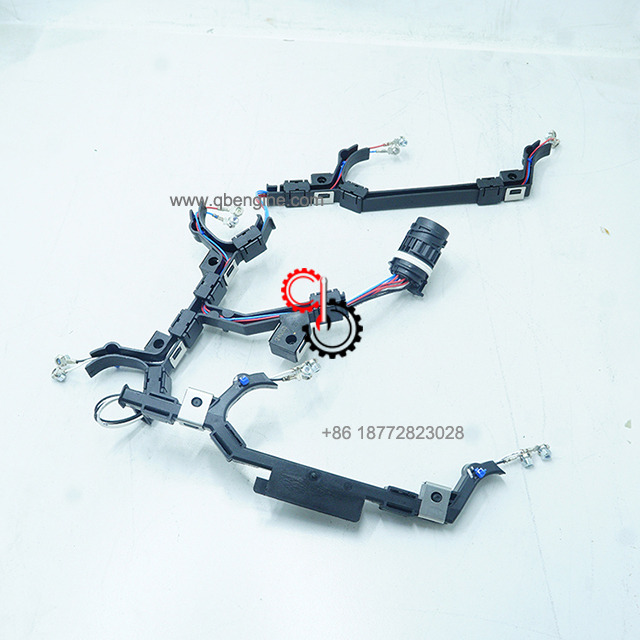

Cummins ISX QSX Wiring Harness 3686380

  • ISX QSX

  • Cummins

  • 3686380

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX Wiring Harness 3686380 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15   CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350   X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15   CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350   X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350   X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150   Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350   X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350   X125M, X15 CM2350 X132C

3686380

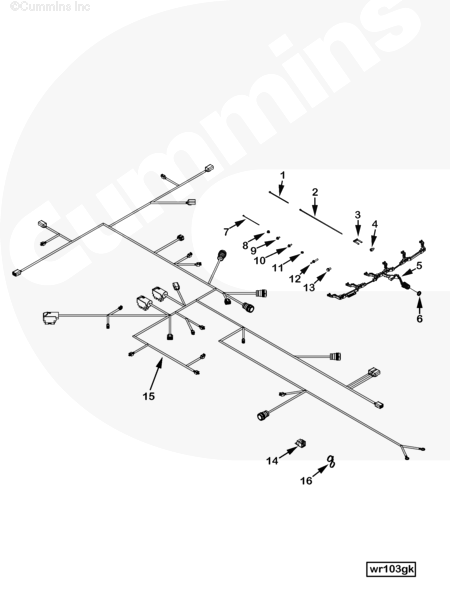

Cart Ref No Part Number Part Description Required Remarks


WR1737-01 Electronic Control Module Wiring  Harness

1 3062329 Wire Tie Clamp 8

2 3076301 Wire Tie Clamp 2

3 3685699 Clip 1

4 3685700 Threaded Spacer 1

5 3686380 Wiring Harness 1

6 3686525 Electrical Connector Seal 1

7 3687036 Wire Tie Clamp 1

8 3900589 Hexagon Flange Nut 3 M8 X 1.25
9 3900629 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 16
10 3900630 Hexagon Flange Head Cap Screw 3 M8 X 1.25 X 20
11 3910266 Spring Washer 9

12 3954857 Studded Flange Cap Screw 1

13 4298929 Captive Washer Cap Screw 5


4333188 Electronic Control Module Wiring  Harness 1

14 3658780 Relay 1

15 4333189 Electronic Control Module Wiring  Harness 1

16 4952223 Wire Tie Clamp 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 30cm*20cm*12cm
Weight 0.055kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
