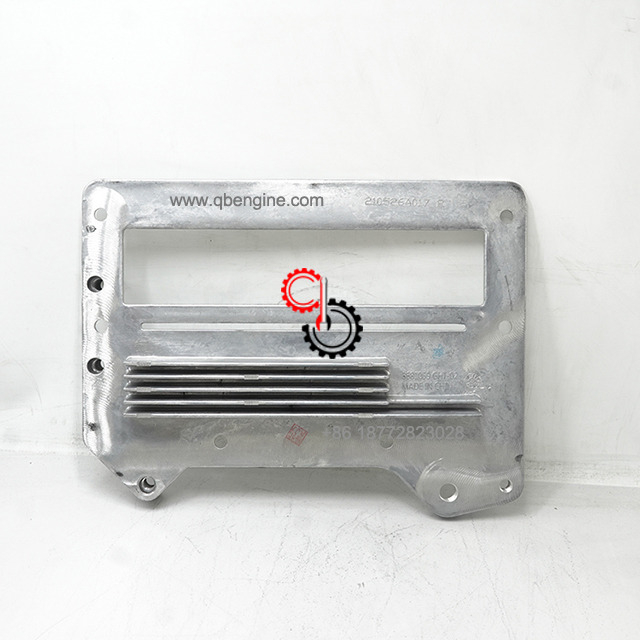

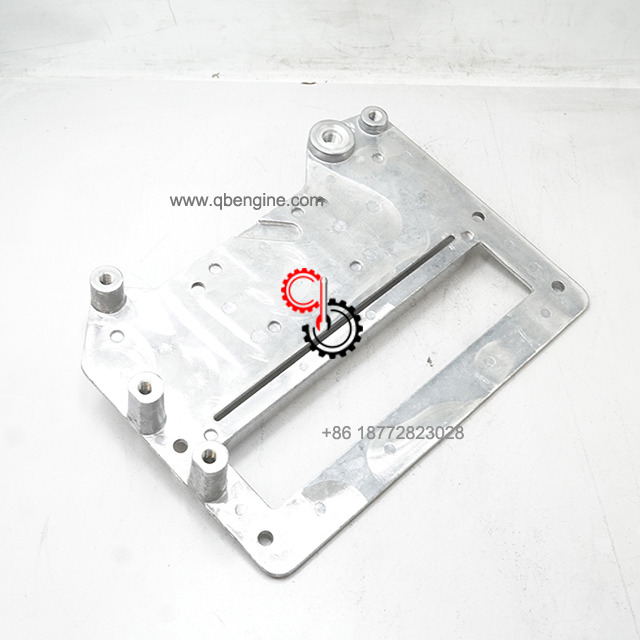

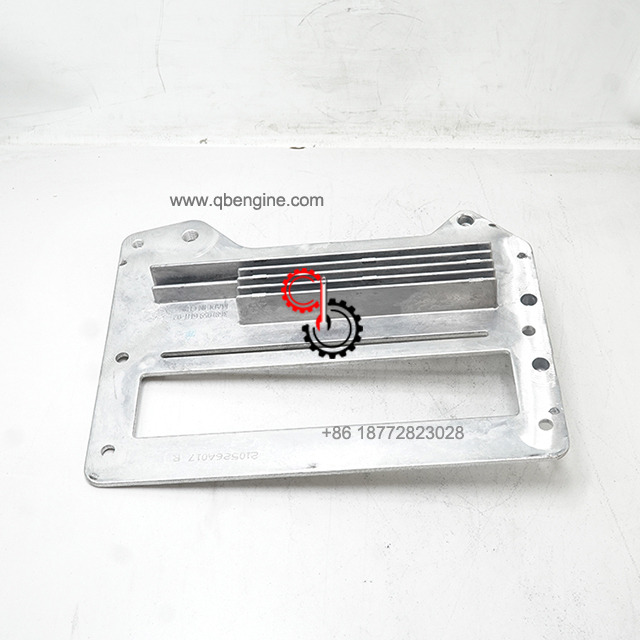

Cummins QSX15 Electronic Control Cooler Plate 3681059

  • QSX15

  • Cummins

  • 3681059

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSX15 Electronic Control Cooler Plate 3681059 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines ISX CM570, ISX   CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250   SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150   SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250   ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350   X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350   X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150   Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350   X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C


3681059

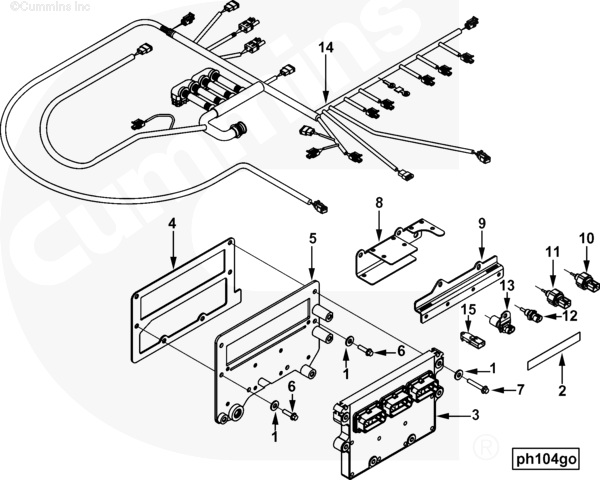

Ref No Part Number Part Description Required Remarks

PH1773-16 Electronic Control Module

1 146161 Plain Washer 4 3/8 in.
2 3161910 Dataplate 1
3 3408501 Electronic Control Module 1
4 3680284 Electronic Control Module Gasket 1
5 3681059 Cooler Plate 1
6 3900630 Hexagon Flange Head Cap Screw 4 M8 X 1.25 X 20
7 3925402 Hexagon Flange Head Cap Screw 6 M8 x 1.25 x 50
8 4026680 Wiring Brace 1
9 4059191 Customer Accessory Bracket 1
10 4921473 Pressure Temperature Sensor 1 Intake manifold.
11 4921475 Pressure Temperature Sensor 1 Oil.
12 4954905 Temperature Sensor 1 Coolant Or Fuel Or Oil.
13 4921599 Position Sensor 2 Cam or crank.
14 4952742 Wiring Harness 1
15 4076493 Pressure Sensor 1 Ambient Air.


SHIPMENT CHARACTERISTICS
Length * Width * Height 33.5cm*33.3cm*13.7cm
Weight 1.698KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
