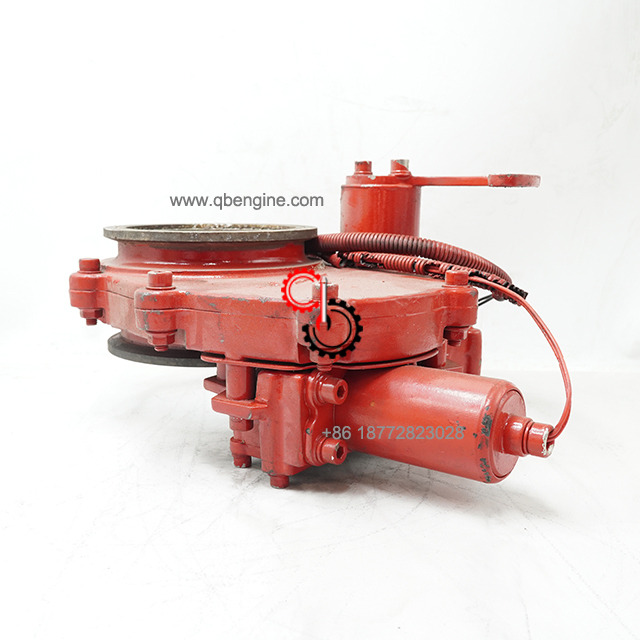

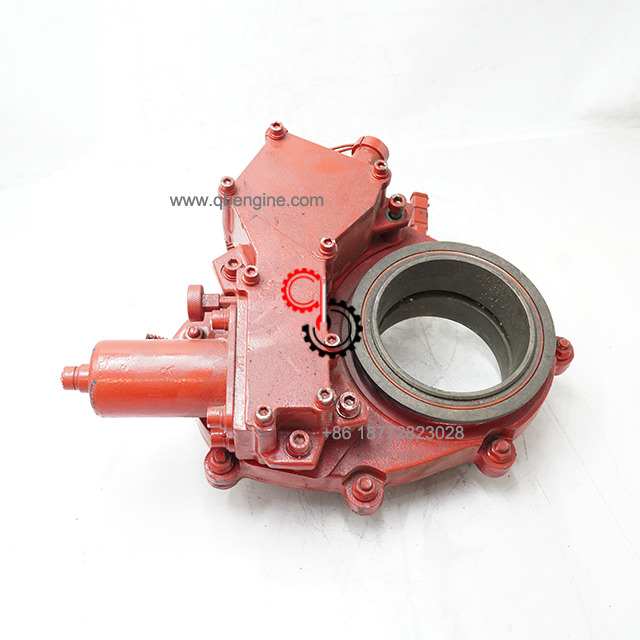

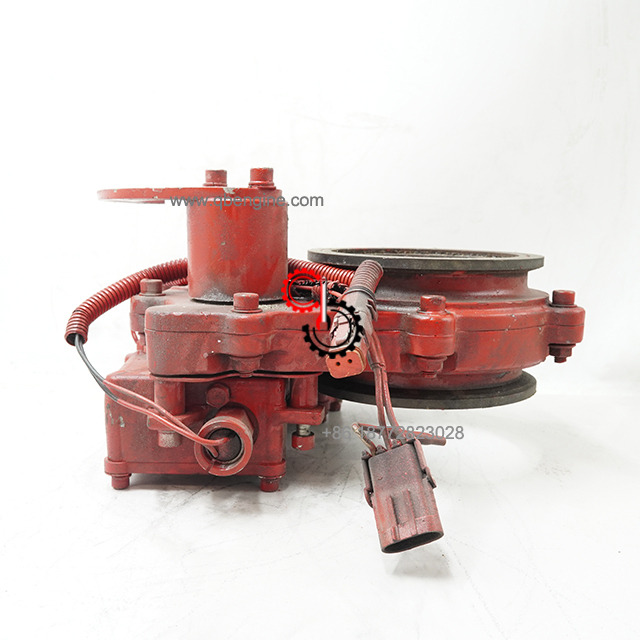

Original Cummins QSK50 QSK60 Air Fuel Throttle Valve 3651938

  • QSK50 QSK60

  • Cummins

  • 3651938

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins QSK50 QSK60 Air Fuel Throttle Valve 3651938 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

3651938

Cart Ref No Part Number Part Description Required Remarks

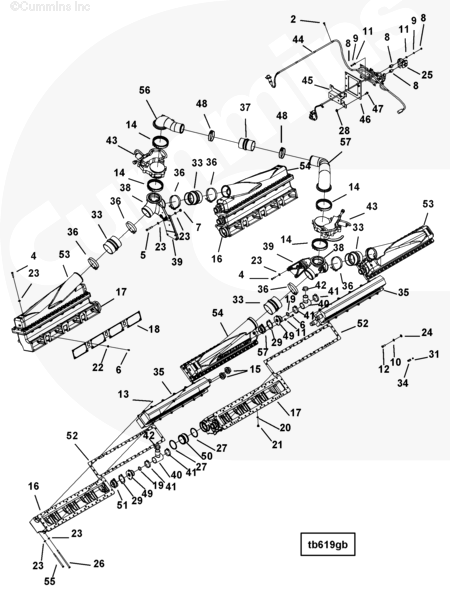

TB6918-01 Aftercooler
Aftercooler...(More)
1 S 103 D Hexagon Head Cap Screw 16 3/8 - 16 x 1 1/4 in.
2 S 107 Hexagon Head Cap Screw 12 5/16 - 18 X 3/4 in.
3 S 112 Hexagon Head Cap Screw 48 3/8 - 16 X 1 in.
4 S 120 Hexagon Head Cap Screw 162 3/8 - 16 X 1 3/4 in.
5 S 162 A Hexagon Head Cap Screw 6 7/16 - 14 X 2 3/4 in.
6 S 188 C Hexagon Head Cap Screw 8 1/4 - 20 X 1/2 in.
7 S 217 Heavy Hexagon Nut 6 7/16 - 14 UNC.
8 S 224 Heavy Hexagon Nut 4 1/4 - 20 UNC.
9 S 600 Lock Washer 4 1/4 in.
10 S 610 Lock Washer 2 7/16 in.
11 S 631 Plain Washer 4 1/4 Inch.
12 103009 Hexagon Head Cap Screw 2 7/16 - 14 X 1 1/4 in.
13 131584 Roll Pin 16

14 3633805 V Band Clamp 4

15 206808 Grommet Seal 8

16 2867086 Air Intake Manifold 2

17 2867088 Air Intake Manifold 2

18 2881604 Intake Manifold Gasket 4

19 3035026 O-Ring Seal 8


3037536 Threaded Plug 2 9/16 - 18 UNF
20 3037537 O-Ring Seal 1

21 3040813 Threaded Plug 1 9/16 - 18 UNF
22 3042327 Plain Washer 8 1/4 in.
23 3042329 Plain Washer 290 3/8 in.
24 3042330 Plain Washer 14 3/8 in.
25 3050692 Magnetic Switch 1

26 3081735 Hexagon Head Cap Screw 32

27 3082358 O-Ring Seal 4

28 3093828 Hexagon Flange Nut 8 M10 X 1.50.
29 3171287 Connection Gasket 8

30 3408250 Vibration Isolator 2

31 3628604 Pipe Plug 5 1/8 - 27 X 0.3 in.
32 3628605 Pipe Plug 4 1/4 - 18.
33 3635339 Hump Hose 4

34 3638582 Draincock 1

35 3641078 Aftercooler Core 4

36 3641131 T-Bolt Clamp 8

37 3641726 Hump Hose 2

38 3643418 Air Crossover Connection 2

39 3643420 Connection Support 2

40 3644834 Water Transfer Connection 4

41 3645972 Hose Clamp 8

42 3645975 Hose Clamp 4

43 3651938 Air Shut-Off Valve 2

44 3649113 Wiring Harness 1

45 3649350 Connection Bracket 1

46 3651212 Connection Bracket 1

47 3902460 Hexagon Flange Head Cap Screw 8 M10 X 1.50 X 25.
48 4008037 T-Bolt Clamp 4 3.69-3.94 in.
49 4017163 Connection Flange 8

50 4017508 Air Balance Tube 2

51 4066129 Seal Retainer 8

52 4080573 Aftercooler Cover Gasket 4

53 4924597 Aftercooler Cover 2

54 4924599 Aftercooler Cover 2

55 4924724 Hexagon Head Cap Screw 32

56 4970055 Air Crossover Connection 1

57 4970413 Air Crossover Connection 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 36cm*27cm*36cm
Weight

10.5kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
