Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / 3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts
3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts
3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts 3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts
3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts 3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts
3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts 3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts

loading

3643839 4007204 Original Cummins QSK78 Check Valve One Way Marine Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

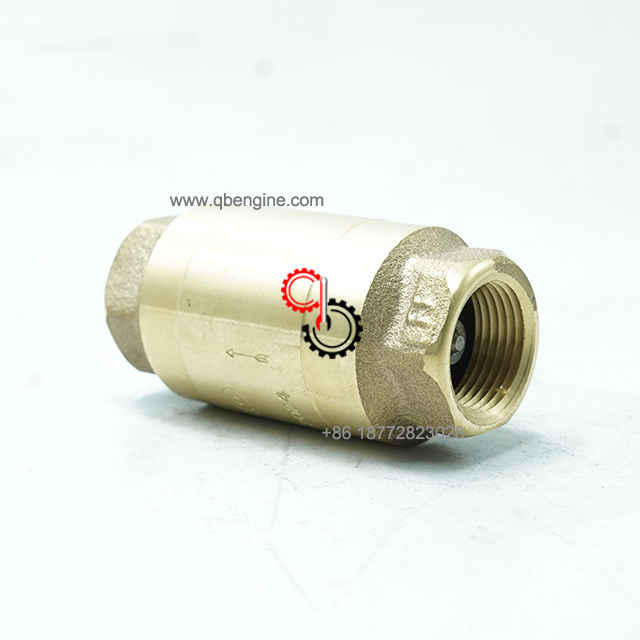

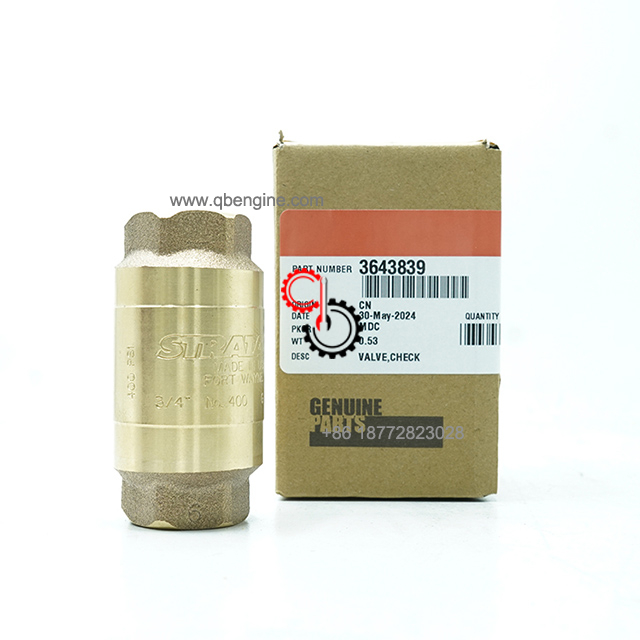

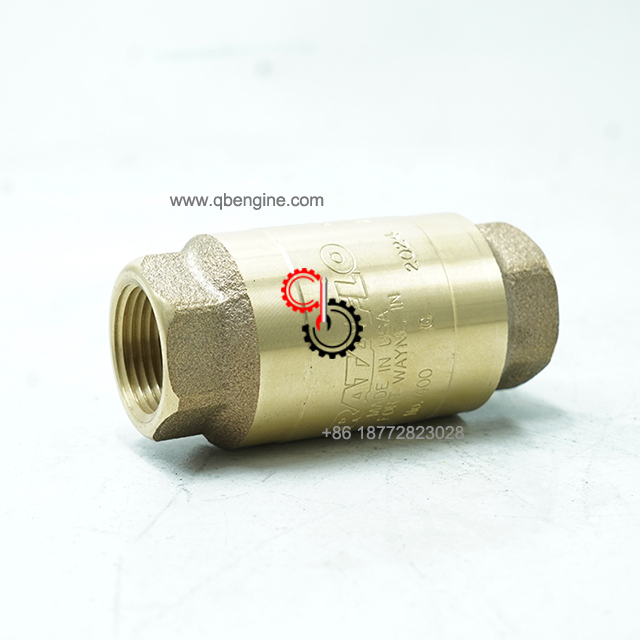

Original Cummins 3643839 4007204 QSK78 Check Valve

  • QSK78

  • Cummins

  • 3643839 4007204

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 3643839 4007204 Cummins Check Valve details

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts HSK78G CM2358 K129G, QSK78 CM2250 K104, QSK78 CM2350 K126, QSK78 CM500

PL6724-05 Engine Lubricating Primer

prelube location: RB

For customer supplied prelube wiring harness.

3643839

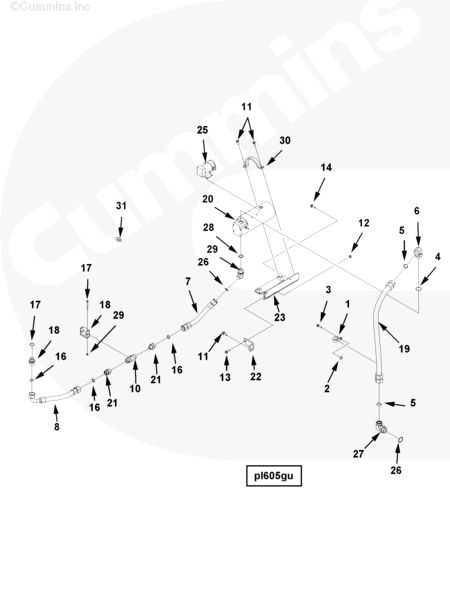

Cart Ref No Part Number Part Description Required Remarks


PL6724-05 Engine Lubricating Primer
Engine lubricating primer...(More)
1 68189 Clip 1

2 104857 Fan Spacer 1

3 3089016 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 35.

3410392 Male Union Elbow 1

4 3089019 O-Ring Seal 1 M42.
5 3332160 O-Ring Seal 1

6 3410393 Male Union Elbow 1

7 3637676 Flexible Hose 1

8 3637677 Flexible Hose 1

9 3643722 Tube Clamp 1

10 3643839 Check Valve 1

11 3902460 Hexagon Flange Head Cap Screw 6 M10 X 1.50 X 25.
12 3902662 Hexagon Flange Nut 3 M10 x 1.50
13 3903112 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 30.
14 3910495 Hexagon Flange Head Cap Screw 2 M12 X 1.75 X 30.
15 3920115 Hexagon Flange Head Cap Screw 2 M6 X 1.00 X 70

4006284 Male Union 1

16 3075658 O-Ring Seal 1

17 3678846 O-Ring Seal 1

18 4006285 Male Union 1

19 4006977 Flexible Hose 1

20 4007201 Engine Lubricating Primer 1


4007207 Male Connector 3

21 4007208 Male Union 1

22 4007270 Connection Bracket 2

23 4007550 Pump Bracket 2

24 4007601 Lock Nut 2

25 4065468 Relay Switch 1


4065714 Male Union Elbow 1

26 3063166 O-Ring Seal 1

27 4065715 Male Union Elbow 1


4065716 Male Union Elbow 1

28 3201585 O-Ring Seal 1

29 4065717 Male Union Elbow 1

30 4066180 Pump Bracket 2

31 4101287 Pressure Switch 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 12cm*6cm*6cm
Weight 0.5kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
