WR6796-01 Electronic Control Module Wiring Harness
harness Engine Family: Qsk60
Application: Industrial fuel control
system: Cummins mcrs ECM
version: CM850 fuel filter
location: Stage one
filtration: Off engine stage
two filtration: LB oil pan adapter
Fuel Supply Temperature Sensor Location: Fuel filter head
Fuel Supply Pressure Sensor Location: Fuel filter head
exhaust gas temp sensor type: Thermistor main harness
mounting provision: SAE 0 flywheel housing.
Cart

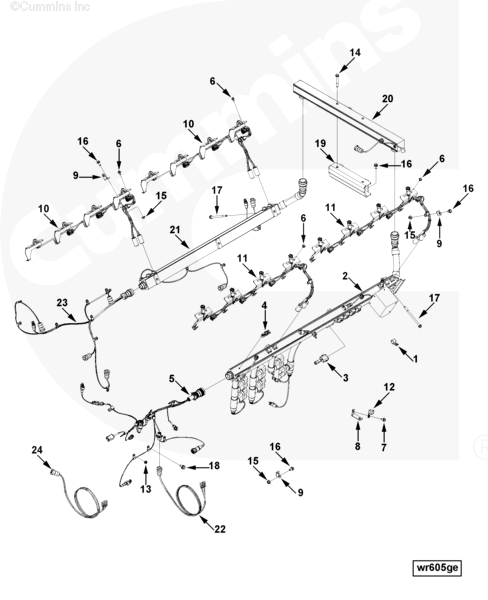

Ref No
Part Number
Part Description
Required
Remarks
WR6796-01
Electronic Control Module Wiring Harness
Electronic cnt mdl wrg...(More)
1
69911 A
Clip
1
2
2871206
Electronic Control Module Wiring Harness
1
3
3681596
Battery Module
1
4
4076493
Pressure Sensor
1
Ambient Air.
5
2871207
Electronic Control Module Wiring Harness
1
6
3093956
Hexagon Flange Head Cap Screw
32
M8 X 1.25 X 12.
7
3093957
Hexagon Flange Head Cap Screw
16
M10 X 1.50 X 16
8
3171784
Water Tube Bracket
16
9
3628553
Tube Brace
3
10
3641610
Electronic Control Module Wiring Harness
2
11
3641611
Electronic Control Module Wiring Harness
2
12
3642462
Clip
16
13
3900589
Hexagon Flange Nut
1
M8 X 1.25
14
3900679
Hexagon Flange Head Cap Screw
2
M10 X 1.50 X 80.
15
3902662
Hexagon Flange Nut
11
M10 x 1.50
16
3903990
Hexagon Flange Head Cap Screw
3
M10 X 1.50 X 20.
17
3904987
Hexagon Flange Head Cap Screw
6
M10 X 1.50 X 150.
18
3913372
Hexagon Flange Head Cap Screw
1
M12 X 1.75 X 20.
19
4067011
Wiring Retainer Bracket
1
20
4924583
Electronic Control Module Wiring Harness
1
21
4951853
Electronic Control Module Wiring Harness
1
22
4964183
Wiring Harness
1
23
4964237
Electronic Control Module Wiring Harness
1
24
4978990
Electronic Control Module Wiring Harness
1
SHIPMENT CHARACTERISTICS
Length * Width * Height
35cm*35cm*10cm
Weight
2kg
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

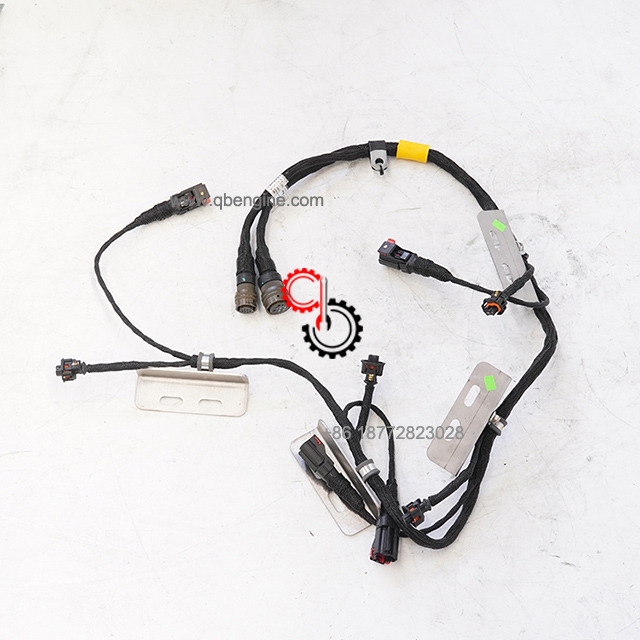

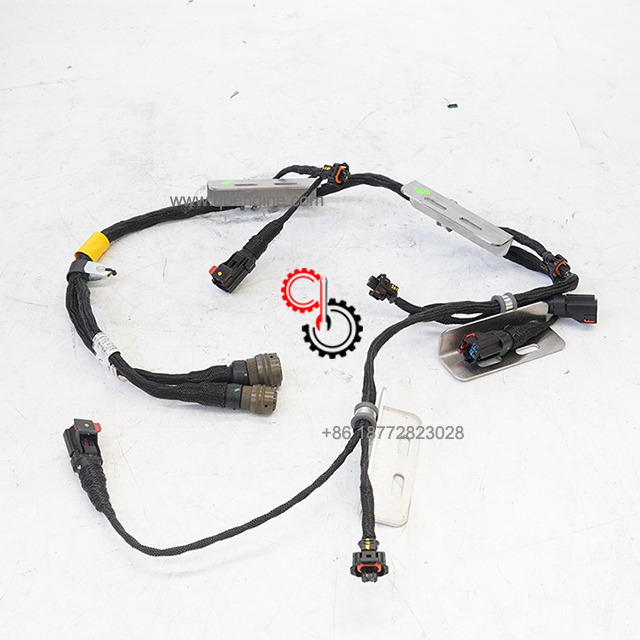

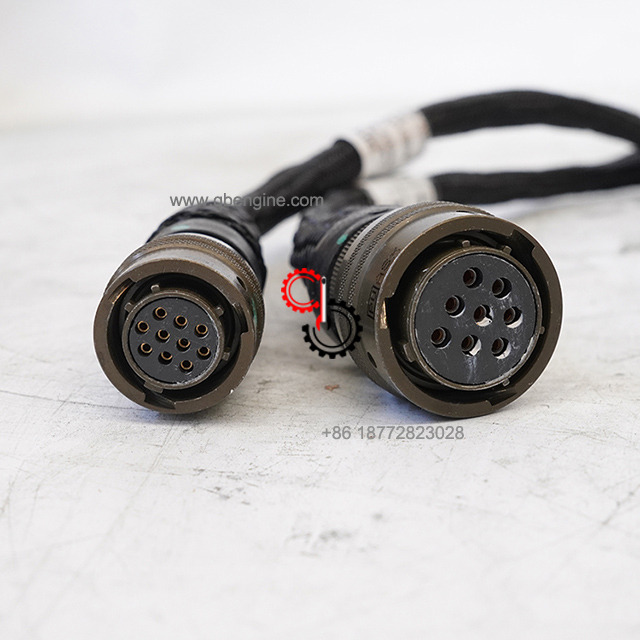

Original Cummins QSK Electronic Control Module Wiring Harness 3641611 In Stock
