3636938 Original Cummins QSK60-G Electronic Control Module Wiring Harness Diesel Engine Parts

3636938 Original Cummins QSK60-G Electronic Control Module Wiring Harness Diesel Engine Parts

Name: 3636938 Original Cummins QSK60-G Electronic Control Module Wiring Harness Diesel Engine Parts
Brand: Cummins
Rating: 5.0 (94 reviews)

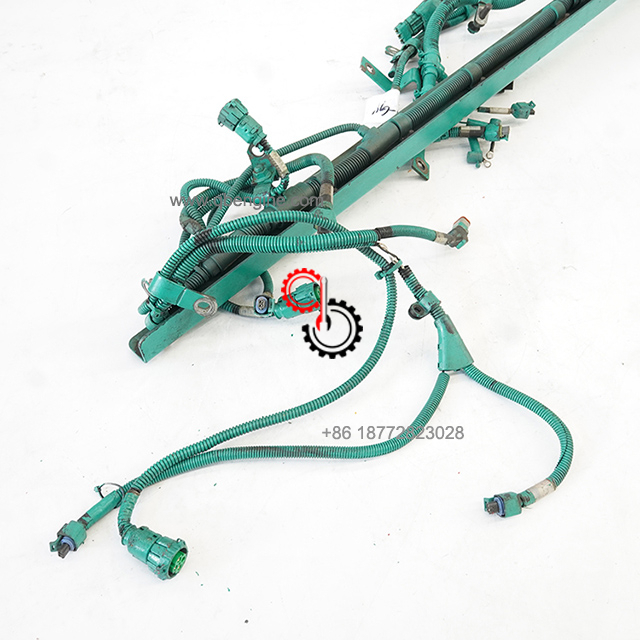

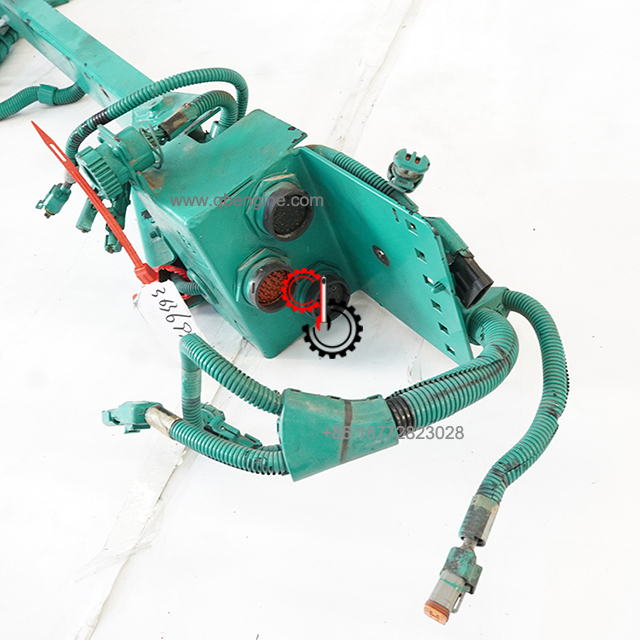

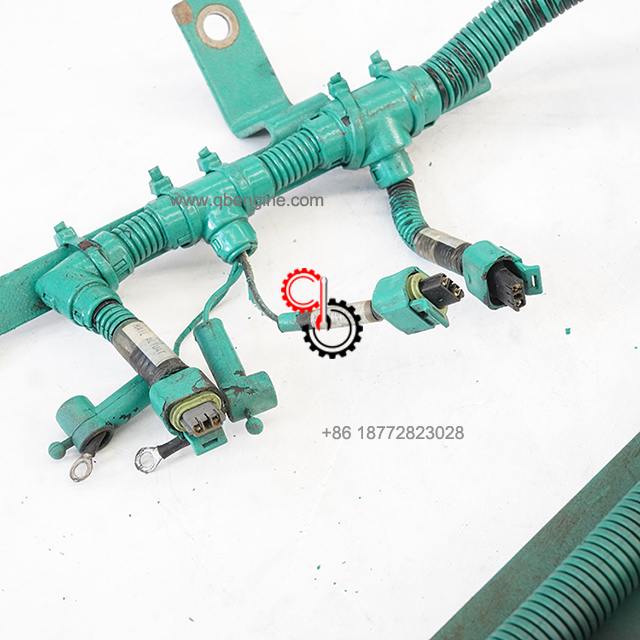

Original Cummins QSK60-G 3636938 Electronic Control Module Wiring Harness

Model:
QSK60-G
Brand:
Cummins
Code:
3636938
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Original Cummins QSK60-G 3636938 Electronic Control Module Wiring Harness In Stock

Cummins Engines

Cummins Engine Parts QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

PH6798 Engine Control Module

Engine Control Module Comment: DOH

EMC version: Dominion

Ambient Air Pressure Sensor Included: Yes

Intake Mfld Temp Sensor Manufact: Hi stat

Application: Genset

Cart	Ref No	Part Number	Part Description	Required	Remarks
		PH6798	Engine Control Module
	4088180	Electronic Control Pressure Valve	1
	S 607	Lock Washer	4	#10
	S 2286	Drive Screw	2	3/16 in.
	105375	Nameplate	1
	118226	Socket Head Cap Screw	4	#10 - 24 x 1 1/4 in.
	129768	Valve Spring	1
	129839	Shut-Off Valve Shield	1
	129888	Rectangular Ring Seal	2
	196057	Valve Disc	1
	3021420	Solenoid	1
	3330602	Electronic Fuel Control Actuator	1
	3042542	O-Ring Seal	1
	3331031	Electronic Fuel Control Actuator	1
	3865398	O-Ring Seal	1
	3867393	Filter Screen	1
	3330658	Control Valve Body	1
	3329693	Threaded Insert	8
	3330657	Control Valve Body	1
	3331818	Male Union Elbow	1
	3085709	O-Ring Seal	1
	3331819	Male Union Elbow	1
	3678606	O-Ring Seal	1	M27 X 2.00
	3347907	Electronic Fuel Control Actuator	2	ECVA Fuel Rail Actuator
	3042542	O-Ring Seal	1
	3348442	Electronic Fuel Control Actuator	1
	3865398	O-Ring Seal	1
	3867393	Filter Screen	1
	3408562	Pressure Sensor	1	Fuel Supply
	3330202	O-Ring Seal	1
	3408563	Pressure Sensor	1	Fuel Supply
	3408564	Pressure Sensor	1	Timing Rail
	3330202	O-Ring Seal	1
	3408565	Pressure Sensor	1	Timing Rail
	3678921	Threaded Plug	4	M14 X 1.5 X 16
	3678912	O-Ring Seal	1	M14
	3678922	Threaded Plug	1	M14 X 1.5 X 16
	3865346	Temperature Sensor	1	Coolant Or Oil Or Fuel.
	3096153	Temperature Sensor	1	Coolant or Oil
	4921574	O-Ring Seal	1
	4088274	Actuator Disc	1
	4088863	Actuator Housing	1
	3330202	O-Ring Seal	1
	4088735	Pressure Sensor	1
	4101320	Electronic Fuel Control Valve	1
	4017130	Bootloader Data	1
	4017131	Non-Volatile Memory Data	1
	4101321	Electronic Control Module	1
	68152	Clip	2	#4
	69911 A	Clip	1
	107460	Clip	2
	114307	Tube Brace	2
	3062329	Wire Tie Clamp	6
	3085140	Pressure Sensor	1	Ambient Air
	3093828	Hexagon Flange Nut	1	M10 X 1.50.
	3093923	Hexagon Flange Head Cap Screw	1	M8 x 1.25 x 14
	3093936	Hexagon Flange Head Cap Screw	4	M10 X 1.50 X 90
	3093956	Hexagon Flange Head Cap Screw	1	M8 X 1.25 X 12.
	3093957	Hexagon Flange Head Cap Screw	1	M10 X 1.50 X 16
	3171775	Clip	1
	3332183	Connection Gasket	1
	3408556	Pressure Sensor	2	Coolant or Intake Manifold
	3627412	Clip	2
	3628553	Tube Brace	1
	3629452	Clip	3
	3630805	Wire Tie Clamp	9
	3636938	Brace And Harness Assembly	1
	3637110	Decal	1
	3867561	Blowby Flow Sensor	1	Blowby flow.
	3900589	Hexagon Flange Nut	2	M8 X 1.25
	3900629	Hexagon Flange Head Cap Screw	1	M8 X 1.25 X 16
	3902460	Hexagon Flange Head Cap Screw	2	M10 X 1.50 X 25.
	3903990	Hexagon Flange Head Cap Screw	1	M10 X 1.50 X 20.
	3906216	Hexagon Flange Nut	3	M6 X 1.00.
	3913372	Hexagon Flange Head Cap Screw	2	M12 X 1.75 X 20.
	3913638	Hexagon Flange Head Cap Screw	2	M6 X 1.00 X 16.
	4066168	Clip	3
	4088734	Pressure Sensor	1	Oil.
	4100528	Wiring Retainer Bracket	1
	4100584	Wiring Retainer Bracket	1
	4101036	Wiring Retainer Bracket	1
	3408345	Temperature Sensor	1	Coolant or Intake Manifold
	3408346	Temperature Sensor	1
	4010519	O-Ring Seal	1
	4921574	O-Ring Seal	1
	3330202	O-Ring Seal	1
	3408557	Pressure Sensor	1
	3076174	Protective Cover	1
	3171394	Clip	1
	3171395	Clip	5
	3171451	Pan Head Cap Screw	4
	3171470	Plain Washer	4
	3617959	Lock Washer	3	1 11/16 in.
	3630805	Wire Tie Clamp	1
	3636937	Wiring Brace	1
	3636966	Protective Cover	1
	3906216	Hexagon Flange Nut	15	M6 X 1.00.
	3914407	Hexagon Flange Head Cap Screw	1	M10 x 1.50 x 100
	3916518	Hexagon Flange Head Cap Screw	4	M10 X 1.50 X 125.
	3922794	O-Ring Seal	5
	4001537	Wire Tie Clamp	1
	4001539	Clip	1
	4016570	Clip	5
	4022547	Regular Hexagon Nut	3	1 11/16-18 Thd
	4086082	Electronic Control Module Wiring Harness	1
	4097473	Mounting Spacer	1
	4097474	Mounting Spacer	4
	4100456	Clip	1
	4100618	Grommet Seal	1
	3865346	Temperature Sensor	2	Coolant Or Oil Or Fuel.
	3096153	Temperature Sensor	1	Coolant or Oil
	4010519	O-Ring Seal	1
	4921574	O-Ring Seal	1

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
