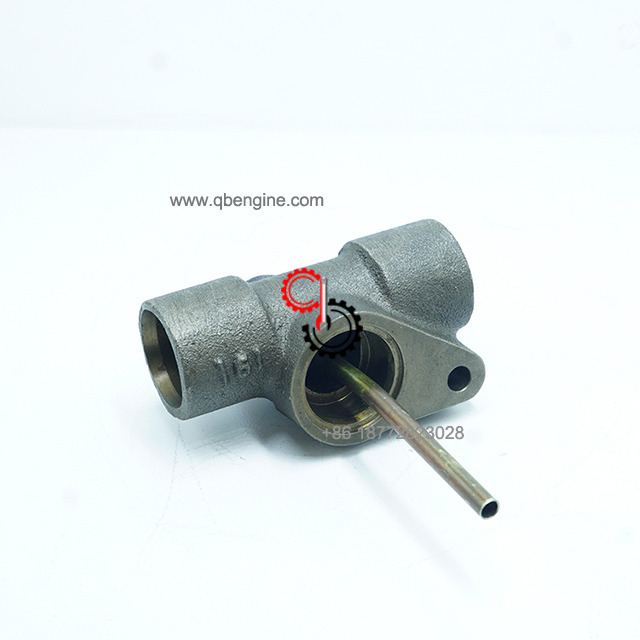

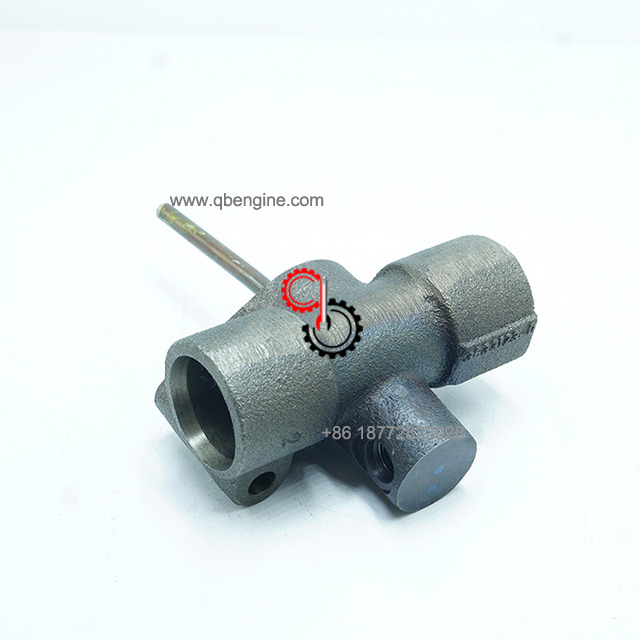

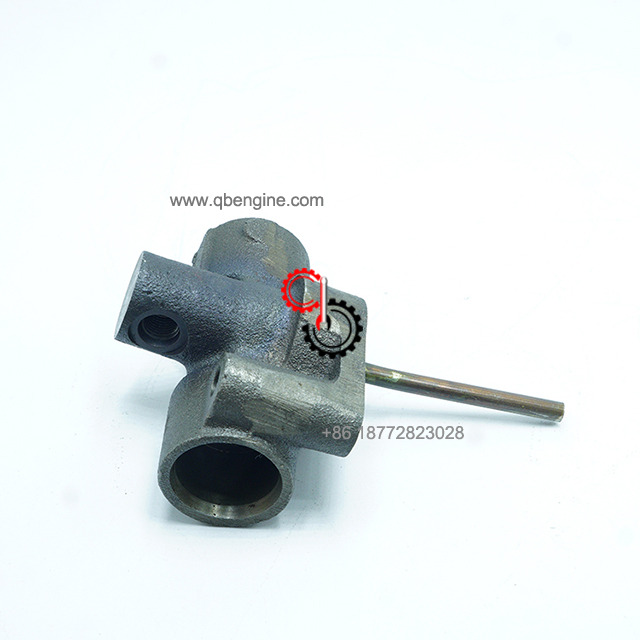

Cummins K38 K50 Water Transfer Connection 3633123 3633134 3633135 3633121 3633122 3633120 3633133 3633132

  • K38 K50

  • Cummins

  • 3633123 3633134 3633135 3633121 3633122 3633120 3633133 3633132

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Water Transfer Connection 3633123 3633134 3633135 3633121 3633122 3633120 3633133 3633132 In Stock

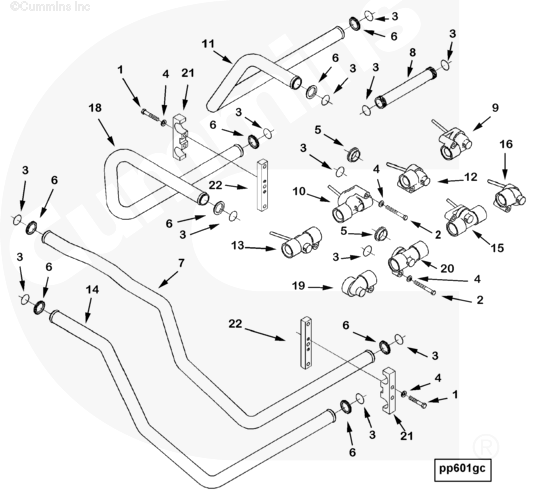

Electronic   Parts Catalog - Option Detail
Cummins   Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3633123

Ref No Part Number Part Description Required Remarks

PP43763 Aftercooler Plumbing

1 S 104 Hexagon Head Cap Screw 4 3/8 - 16 X 2 1/4 in.
2 S 102 D Hexagon Head Cap Screw 8 3/8 - 16 x 3 in.
3 68910 O-Ring Seal 24
4 3036460 Spring Washer 12
5 3058812 Dust Seal 16
6 3063294 Grommet Seal 8
7 3066355 Water Transfer Tube 1
8 3066358 Water Transfer Tube 4
9 3633134 Water Transfer Connection 1 Right bank supply
10 3633135 Water Transfer Connection 1 Right bank supply
11 3066349 Water Transfer Tube 1
12 3633121 Water Transfer Connection 1 Right bank return
13 3633122 Water Transfer Connection 1 Right bank return
14 3066352 Water Transfer Tube 1
15 3633123 Water Transfer Connection 1 Left Bank return
16 3633120 Water Transfer Connection 1 Left Bank return
18 3066346 Water Transfer Tube 1
19 3633133 Water Transfer Connection 1 Left bank supply
20 3633132 Water Transfer Connection 1 Left bank supply
21 3629820 Tube Brace 2
22 3629821 Tube Brace 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 8cm*14cm*27cm
Weight 1KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
