Cummins / Products / 3631625 Brand New Cummins K38 Engine Spare Parts Sea Water Connection 3631625
3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625
3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625 3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625
3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625 3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625
3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625 3631625 Brand New Cummins Engine Spare Parts Sea Water Connection 3631625

loading

3631625 Brand New Cummins K38 Engine Spare Parts Sea Water Connection 3631625

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

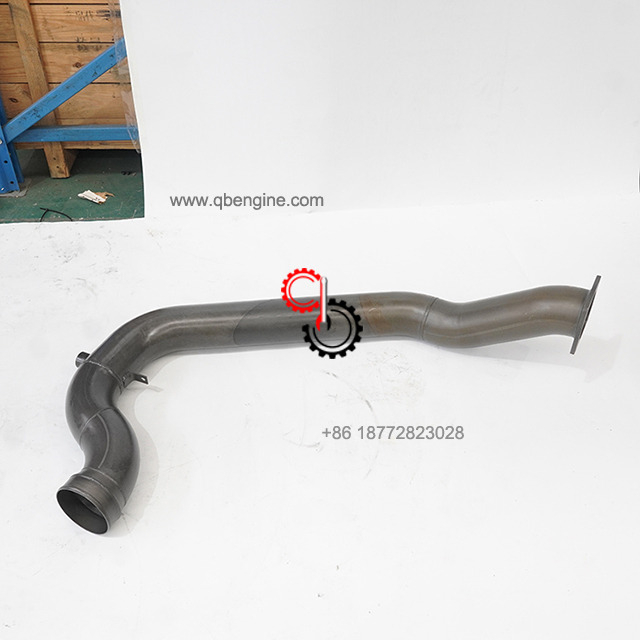

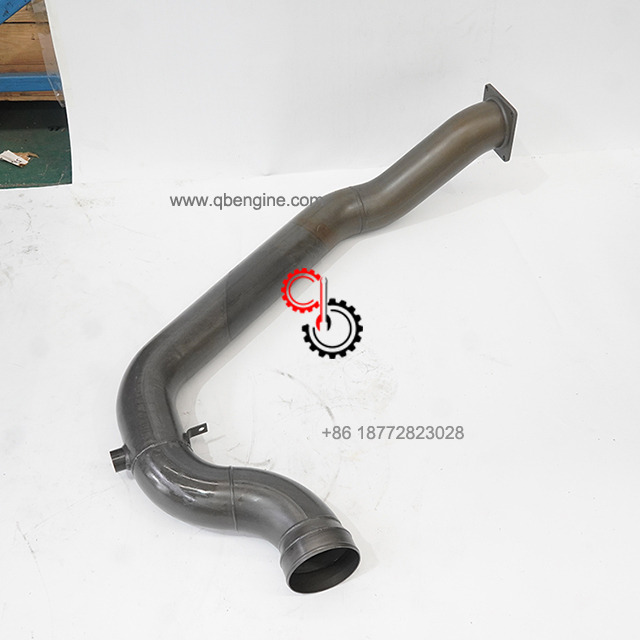

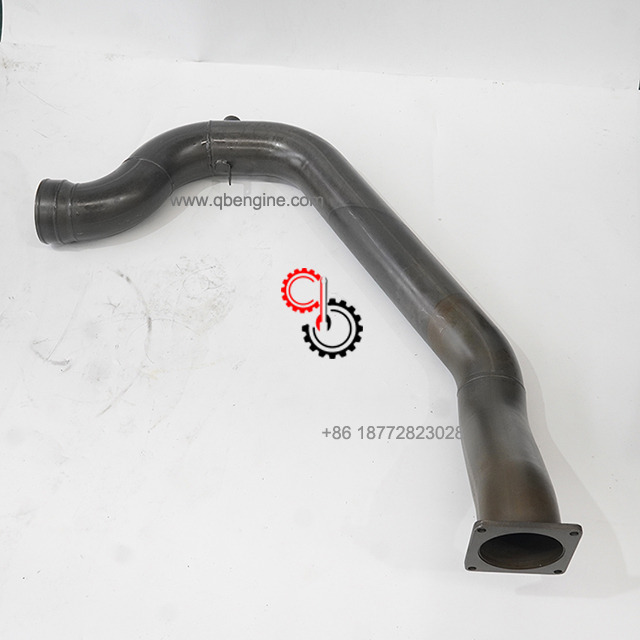

Cummins Sea Water Connection 3631625

  • K38

  • Cummins

  • 3631625

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Sea Water Connection 3631625 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines GTA38, K38, KTA38GC CM558, QSK38 CM2150 K106, QSK38 CM2150 MCRS, QSK38 CM850 MCRS

3631625

Ref No Part Number Part Description Required Remarks

CE6015 Engine Cooling System

1 AK5026S S Flexible Hose 1
2 AK5033S S Flexible Hose 1
3 AK6038S S Flexible Hose 1
4 S 103 D Hexagon Head Cap Screw 8 3/8 - 16 x 1 1/4 in.
5 S 112 Hexagon Head Cap Screw 1 3/8 - 16 X 1 in.
6 S 113 Hexagon Head Cap Screw 4 1/2 - 13 x 1 1/2 in.
7 S 155 Hexagon Head Cap Screw 8 7/16 - 14 X 1 1/2 in.
8 S 172 B Hexagon Head Cap Screw 14 3/8 - 16 X 1 1/8 in.
9 S 189 Hexagon Head Cap Screw 6 3/4 - 10 X 3 3/4 in.
10 S 604 Lock Washer 29 3/8 in.
11 S 608 Lock Washer 4 1/2 in.
12 S 609 Lock Washer 8 9/16 in.
13 S 610 Lock Washer 8 7/16 in.
14 S 611 Lock Washer 6 3/4 in.
15 S 622 Plain Washer 16 3/8 in.
16 S 1012 A Grommet Seal 2
17 S 1040 A Male Adapter Elbow 4
18 43828 F Hose Clamp 48 2 9/16 - 3 1/2 in.
19 63223 Plain Hose 2
20 63842 Plain Washer 8 3/8 in.
21 68189 Clip 1
22 103023 Hexagon Head Cap Screw 8 7/16 - 14 X 1 in.
23 108330 Plain Washer 8 3/8 in.
24 108722 Clip 2
25 125740 T-Bolt Clamp 1 4 1/2 in.
26 134613 Hexagon Head Cap Screw 4 3/8 - 16 X 1 1/8 Inch.
27 137795 Hexagon Head Cap Screw 2 3/8 - 16 x 5/8 in.
28 137973 Hexagon Head Cap Screw 8 9/16 - 12 X 1 1/2 Inch.
29 143950 Male Connector 4
30 149274 Plain Hose 1
31 149437 T-Bolt Clamp 2 5 1/2 in.
32 171868 Tube Brace 1
33 3008816 Sea Water Connection 1

3010485 Sea Water Connection 1
34 3008817 Sea Water Connection 1
35 3008821 Sea Water Connection 1
36 3008822 Sea Water Connection 1
37 3008830 Water Transfer Tube 1
38 3008831 Water Transfer Connection 1
39 3008832 Water Transfer Connection Gasket 4
40 3008833 Sea Water Connection 1
41 3008834 Water Inlet Connection 1
42 3008839 Expansion Tank Brace 4
43 3008845 Connection Gasket 1
44 3008997 Sea Water Connection 1
45 3010596 Captive Washer Cap Screw 26 3/8 - 16 x 1 1/4 in.
46 3011067 Tube Brace 1
47 3011106 Sea Water Cover Plate 1

3011108 Heat Exchanger 2
48 S 140 Hexagon Head Cap Screw 12 7/16 - 14 x 1 3/4 in.
49 S 910 B Pipe Plug 4 1/4 NPT.
50 S 961 E Pipe Plug 2 1/4 NPT.
51 68241 Zinc Electrode Plug 6
52 103009 Hexagon Head Cap Screw 12 7/16 - 14 X 1 1/4 in.
53 3011323 Heat Exchanger Housing 1
54 3011324 Heat Exchanger Cover 1
55 3011326 Cooler Core 1
56 3011329 Heat Exchanger Cover 1
57 3011337 O-Ring Seal 1
58 4009318 Heat Exchanger Gasket 1
59 4009319 Heat Exchanger Gasket 2
60 3011829 Captive Washer Cap Screw 8 3/8 - 16 x 4 7/8 in
61 3024128 Plain Hose 12
62 3034123 Male Connector 2
63 3055769 Sea Water Pump Gasket 8
64 3055770 Sea Water Pump Gasket 4
65 3175769 Plain Hose 1
66 3179035 Water Transfer Connection Gasket 1
67 3200882 Sea Water Connection 4
68 3201128 Regular Hexagon Nut 1 3/8 - 16 UNC.
69 3278046 Plain Street Pipe Elbow 1
70 3626762 Flexible Hose 1
71 3627412 Clip 2
72 3628605 Pipe Plug 1 1/4 - 18.
73 3628902 Plain Washer 41
74 3629860 Sea Water Pump Cover 2
75 3631314 T-Bolt Clamp 4
76 3631625 Sea Water Connection 1
77 3633295 Water Transfer Tube 1
78 3633296 Water Transfer Tube 1
79 3634306 Flexible Hose 1
80 3641069 Nameplate 1

4914685 Expansion Tank 1
81 3008837 Sight Gauge 1

3627413 Expansion Tank 1
82 S 505 Cotter Pin 2
83 3008835 Heat Exchanger Bracket 1
84 3008836 Expansion Tank 1
85 3021530 Clevis Pin 2
86 3088296 Filler Cap 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 106cm*44cm*16cm
Weight 11KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
