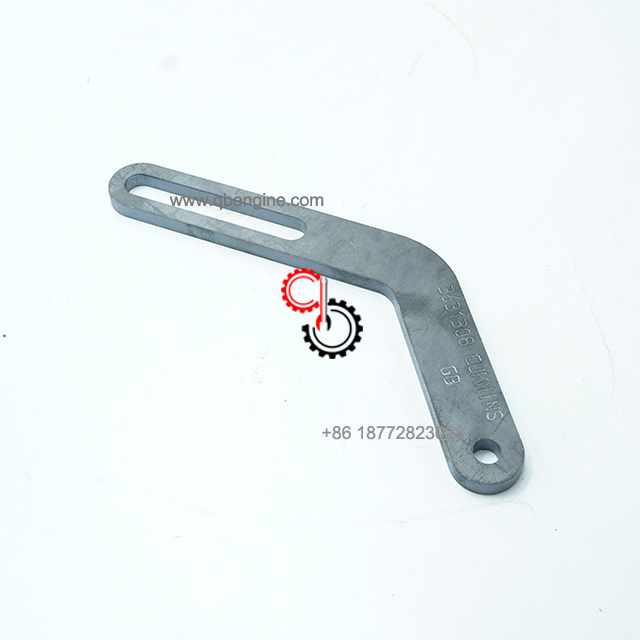

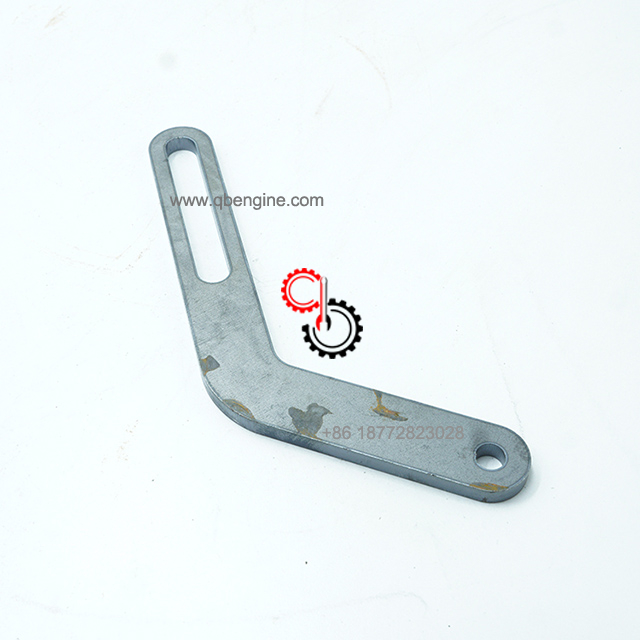

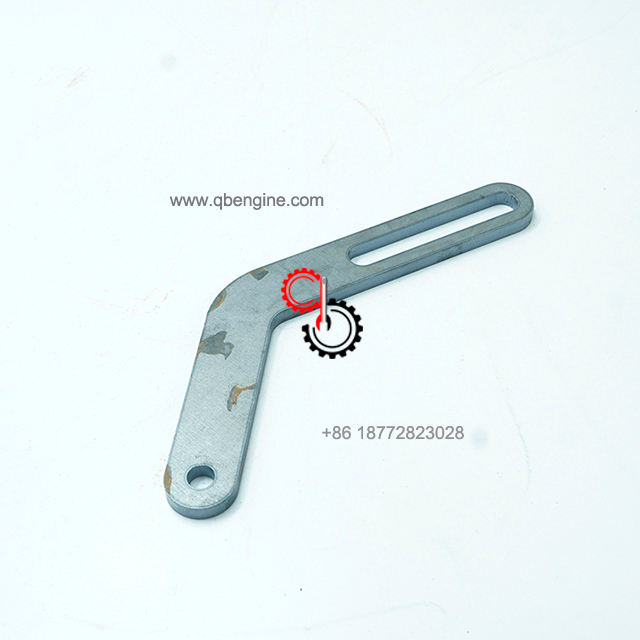

Original Cummins 3631308 Adjusting Link
EE5064-01 Alternator Mounting
Mounting and drive for Prestolite alternator.
Mounted to right bank of engine block and pan rail, below rear accessory drive pulley, driven at 2.55 times engine speed.
Includes alternator pulley and two half inch 'v' belts for d15 engines.

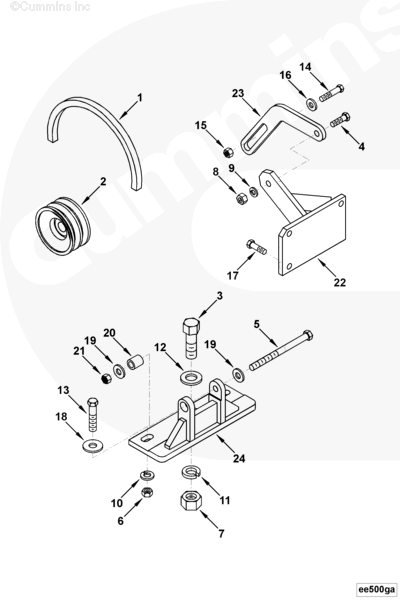

| Cart | Ref No | Part Number | Part Description | Required | Remarks |
|
| EE5064-01 | Alternator Mounting |
| Mounting and drive for...(More) |
| 1 | 3040283 | V Belt | 2 |
|
|
| 2 | 3631318 | Alternator Pulley | 1 |
|
|
| 3 | S 102 B | Hexagon Head Cap Screw | 1 | 3/4 - 10 X 2 3/4" |
|
| 4 | S 103 D | Hexagon Head Cap Screw | 1 | 3/8 - 16 x 1 1/4 in. |
|
| 5 | S 167 B | Hexagon Head Cap Screw | 1 | 7/16 - 14 X 5 1/2" |
|
| 6 | S 200 | Heavy Hexagon Nut | 2 | 1/2 - 13 UNC. |
|
| 7 | S 204 | Heavy Hexagon Nut | 1 | 3/4 - 10 UNC |
|
| 8 | S 223 | Heavy Hexagon Nut | 1 | 3/8 - 16 UNC |
|
| 9 | S 604 | Lock Washer | 1 | 3/8 in. |
|
| 10 | S 608 | Lock Washer | 2 | 1/2 in. |
|
| 11 | S 611 | Lock Washer | 1 | 3/4 in. |
|
| 12 | S 640 | Plain Washer | 1 | 3/4 in. |
|
| 13 | 106289 | Hexagon Head Cap Screw | 2 | 1/2 - 13 X 2 1/4 in |
|
| 14 | 106549 | Hexagon Head Cap Screw | 1 | 3/8 - 24 x 1 3/4 in. |
|
| 15 | 107534 | Lock Nut | 1 |
|
|
| 16 | 108330 | Plain Washer | 1 | 3/8 in. |
|
| 17 | 136574 | Hexagon Head Cap Screw | 1 | 3/8 - 16 X 1 1/4" |
|
| 18 | 146163 | Plain Washer | 2 | 1/2 in. |
|
| 19 | 203760 | Plain Washer | 2 | 7/16 in. |
|
| 20 | 207509 | Sleeve | 1 |
|
|
| 21 | 555273 | Lock Nut | 1 |
|
|
| 22 | 3631305 | Adjusting Link Bracket | 1 |
|
|
| 23 | 3631308 | Adjusting Link | 1 |
|
|
| 24 | 3631309 | Alternator Bracket | 1 |
|
|
SHIPMENT CHARACTERISTICS |
| Length * Width * Height | 24cm*1cm*3cm |
| Weight | 0.406kg |
