Cummins / Cummins Parts / Fuel Pump, Injector, Manifold, Injection Pump, Pressure Sensor / 3627392 Cummins KTA38-M Air Intake Manifold High Quality Industrial Engine Parts 3627393

3627392 Cummins KTA38-M Air Intake Manifold High Quality Industrial Engine Parts 3627393

3627392 Cummins KTA38-M Air Intake Manifold High Quality Industrial Engine Parts 3627393

Name: 3627392 Cummins KTA38-M Air Intake Manifold High Quality Industrial Engine Parts 3627393
Brand: Cummins
Rating: 5.0 (27 reviews)

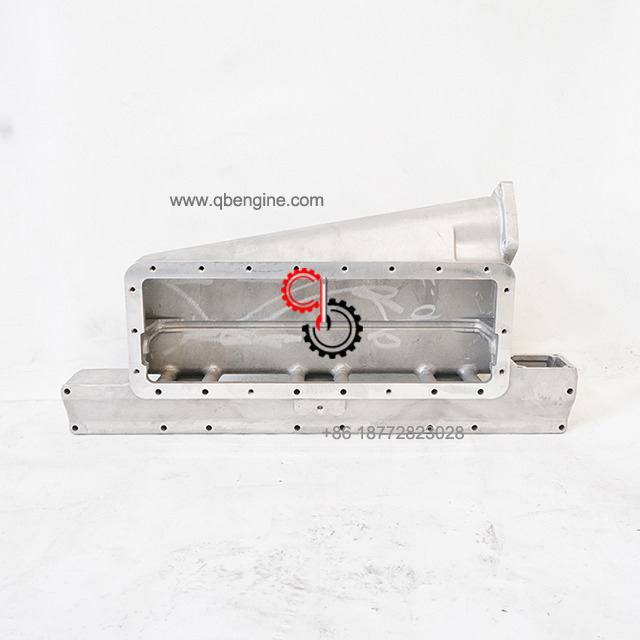

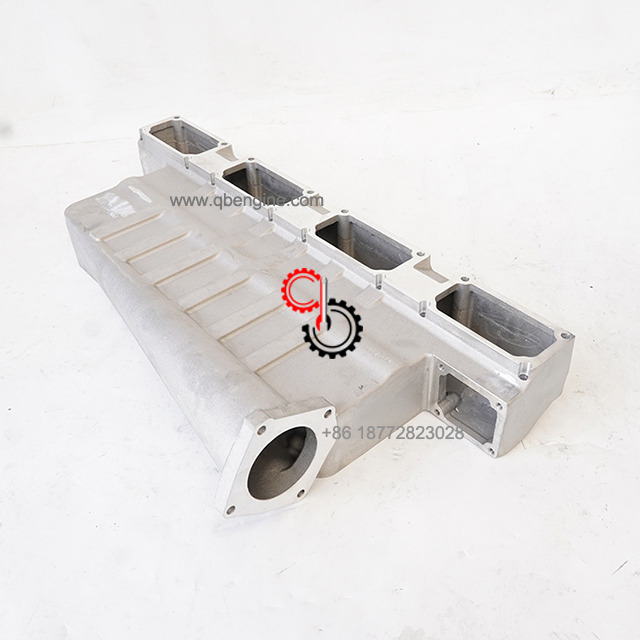

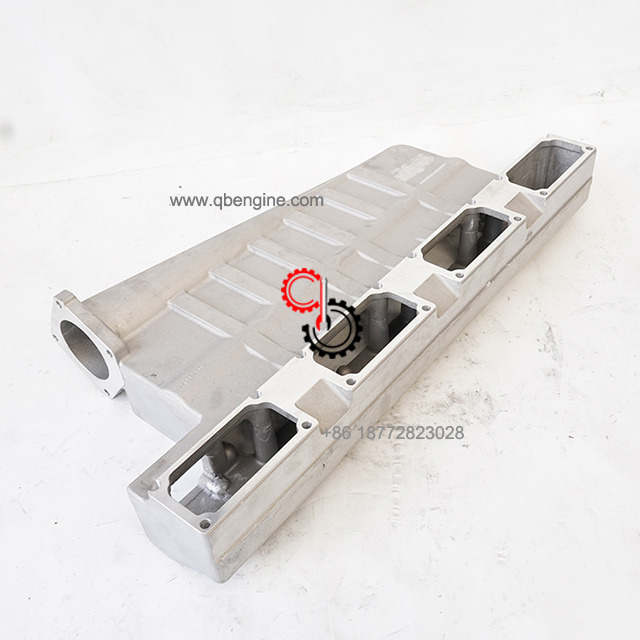

Cummins KTA38-M Air Intake Manifold 3627392 3627393

Model:
KTA38-M
Brand:
Cummins
Code:
3627392 3627393
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins KTA38-M Air Intake Manifold 3627392 3627393 In Stock

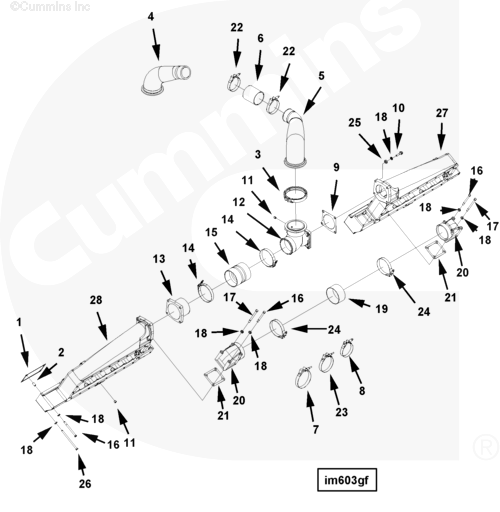

Electronic Parts Catalog - Option Detail
Cummins Engines	Cummins Engine Parts G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

3627392

Cart	Ref No	Part Number	Part Description	Required	Remarks
		IM6059	Air Intake Manifold		Intake manifold...(More)
		3630794	Air Manifold Mounting	1
1	206277	Intake Manifold Gasket	16
2	3014304	Rectangular Ring Seal	32
	3630799	Air Crossover Assembly	1
3	186917	V Band Clamp	2
4	3058809	Air Crossover Connection	1
5	3179585	Air Crossover Connection	1
6	3630125	Plain Hose	2
7	3633805	V Band Clamp	2
8	3641133	T-Bolt Clamp	4
	3643393	Air Manifold	1
	3177573	Air Connection	1
9	3047665	Connection Gasket	4
10	3065723	Captive Washer Cap Screw	16	3/8 - 16 X 1 3/4 in.
11	3628605	Pipe Plug	2	1/4 - 18.
12	3630017	Air Crossover Connection	2
13	3630249	Air Transfer Connection	2
14	3633975	T-Bolt Clamp	4	4 3/4 in.
15	3634116	Hump Hose	2
	3177574	Air Connection	1
16	S 106 C	Hexagon Head Cap Screw	8	3/8 - 16 X 4 3/4 in.
17	S 166 B	Hexagon Head Cap Screw	8	3/8 - 16 X 5 3/4 Inch.
18	3036460	Spring Washer	16
19	3049565	Plain Hose	2
20	3058814	Air Intake Connection	4
21	3179028	Connection Gasket	4
22	3633974	T-Bolt Clamp	4	3.69-3.94 in.
23	3633995	T-Bolt Clamp	4
24	3641132	T-Bolt Clamp	4
8	3641133	T-Bolt Clamp	4
	3177576	Air Manifold	1
16	S 106 C	Hexagon Head Cap Screw	16	3/8 - 16 X 4 3/4 in.
25	62279	Mounting Spacer	4
26	69028	Hexagon Head Cap Screw	16
18	3036460	Spring Washer	32
27	3627392	Air Intake Manifold	2
11	3628605	Pipe Plug	2	1/4 - 18.
	3643394	Air Manifold	1
16	S 106 C	Hexagon Head Cap Screw	16	3/8 - 16 X 4 3/4 in.
25	62279	Mounting Spacer	4
26	69028	Hexagon Head Cap Screw	14
18	3036460	Spring Washer	32
28	3627393	Air Intake Manifold	2
11	3628605	Pipe Plug	2	1/4 - 18.

SHIPMENT CHARACTERISTICS
Length * Width * Height	94cm49cm18cm
Weight	24.04kg

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

3627393 3627392 KTA38-M air intake manifold air intake manifold pipe intake manifold cummins air intake manifold k series intake manifold engine intake manifold engine air intake manifold cummins engine intake manifold
