Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / 3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383
3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383
3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383 3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383
3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383 3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383
3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383 3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383

loading

3627383 Cummins QSK38 QSK50 Engine Spare Parts Fan Support 3627383

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

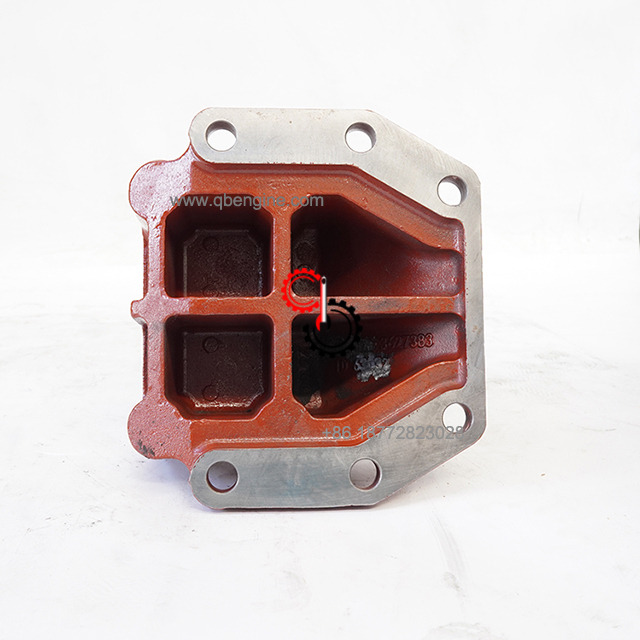

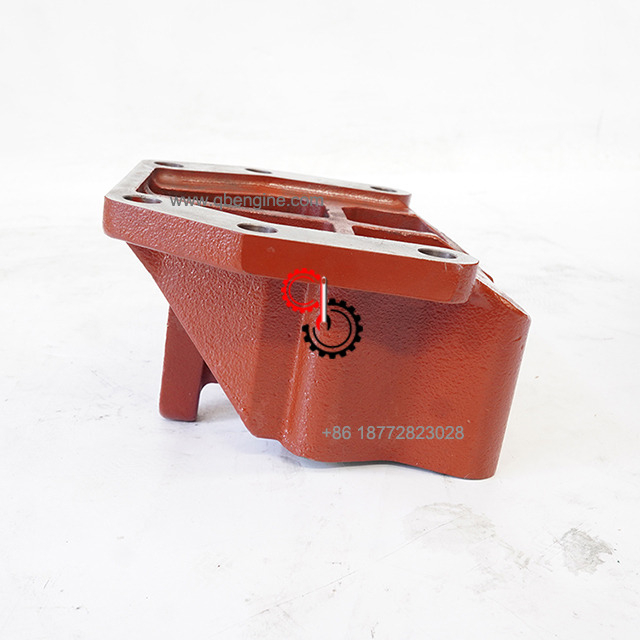

Cummins QSK38 QSK50 Fan Support 3627383

  • QSK38 QSK50

  • CUMMINS

  • 3627383

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK38 QSK50 Fan Support 3627383 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

3627383

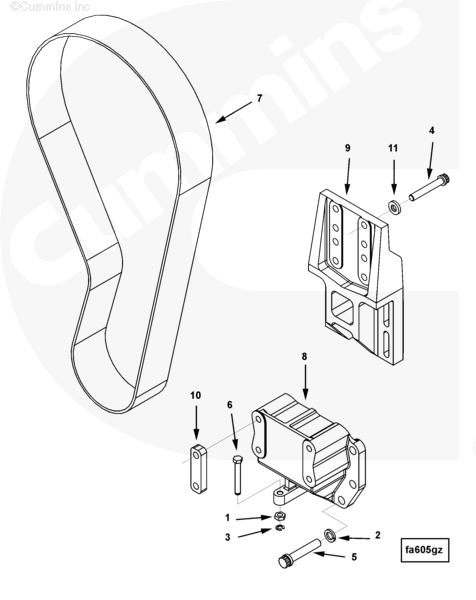

Ref No Part Number Part Description Required Remarks

FA6187-01 Fan Drive
Drive,Fan...(More)
1 S 285 Heavy Hexagon Jam Nut 1 1/2 - 13 UNC.
2 S 611 Lock Washer 6 3/4 in.
3 69204 C Retaining Ring 1
4 205681 Twelve Point Cap Screw 4 5/8 - 11 X 4 in.
5 206511 Twelve Point Cap Screw 6 3/4 - 10 X 4 in.
6 3179639 Hexagon Head Cap Screw 1 1/2 - 13 X 3 3/4 in.
7 3179675 V Ribbed Belt 1
8 3627383 Fan Support 1
9 3627385 Fan Support 1
10 3627453 Clamping Plate 2
11 3628745 Plain Washer 4


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.


Previous:
Next:
3627383 fan support supporting fan engine fan support engine support fan excavator fan support auto fan support QSK50 fan support QSK38 fan support cummins fan support
