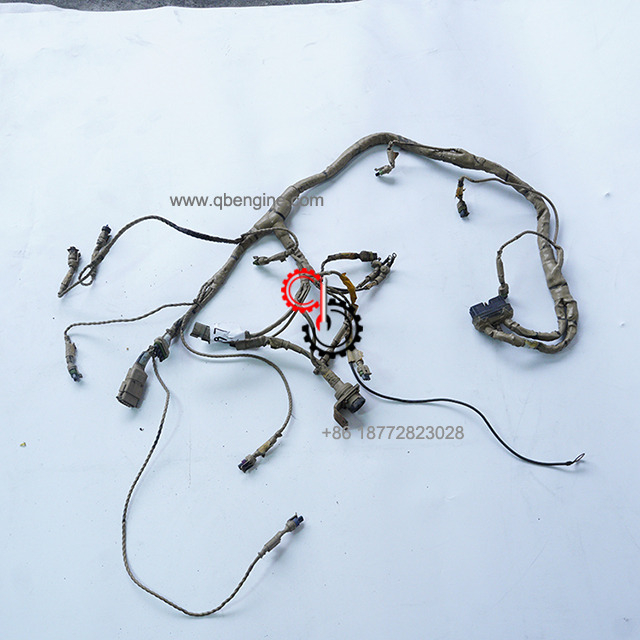

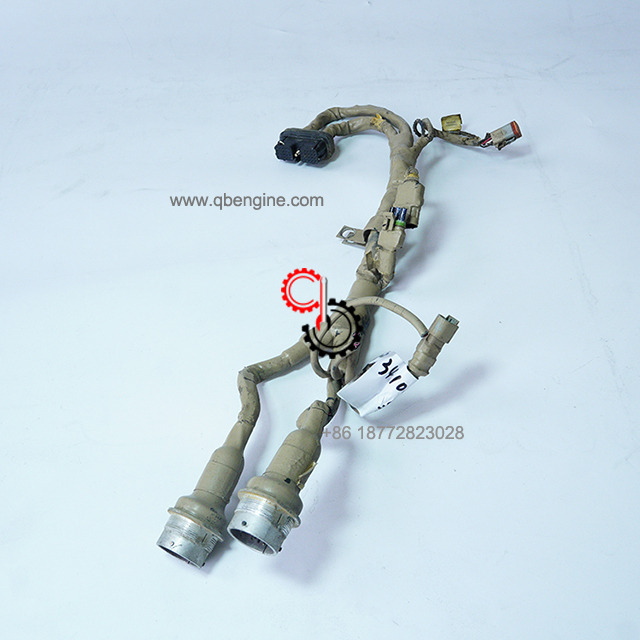

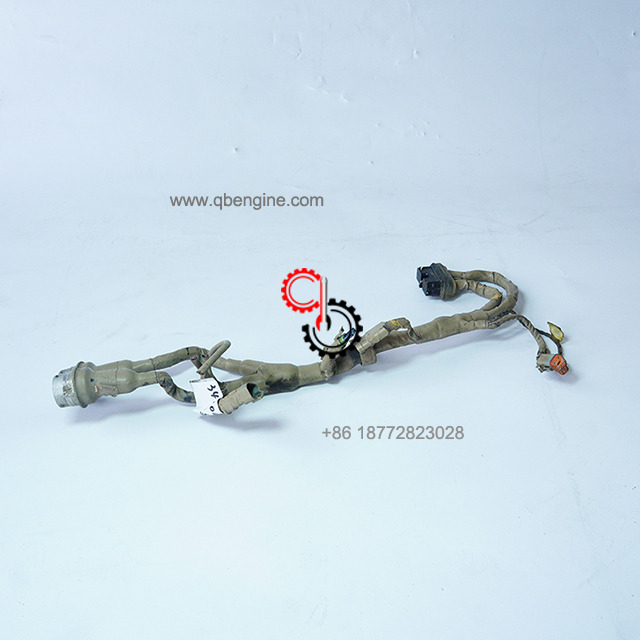

Cummins QSK19 ECM Wiring Harness 3410098 3410097 5483720 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |

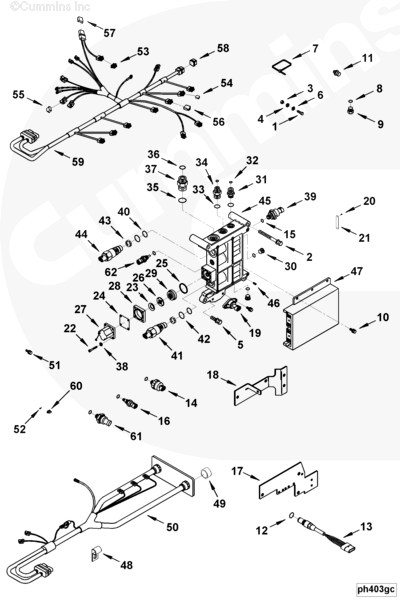

| Ref No | Part Number | Part Description | Required | Remarks |
| PH4736-18 | Engine Control Module |
| Engine Control Module...(More) |
| 1 | S 114 | Hexagon Head Cap Screw | 4 | 1/4 - 20 X 3/4 in. |
| 2 | 3042890 | Captive Washer Cap Screw | 2 | 3/8 - 16 x 4 in. |
| 3 | S 224 | Heavy Hexagon Nut | 2 | 1/4 - 20 UNC. |
| 4 | S 600 | Lock Washer | 2 | 1/4 in. |
| 5 | 3035624 | Captive Washer Cap Screw | 2 | 3/8 - 16 X 1 1/2 in. |
| 6 | 127018 | Plain Washer | 4 | 1/4 in. |
| 7 | 3018920 | Wire Tie Clamp | 41 |
|
| 3040995 | Threaded Plug | 1 | 9/16 - 18 UNF |
| 8 | 3037537 | O-Ring Seal | 1 |
|
| 9 | 3040809 | Threaded Plug | 1 |
|
| 10 | 3066310 | Captive Washer Cap Screw | 2 | 1/4 - 20 X 3/4" |
| 11 | 3071225 | Captive Washer Cap Screw | 1 | 3/8 - 16 x 3/4 in. |
| 3408503 | Position Sensor | 1 | Cam or Crank |
| 12 | 3046201 | O-Ring Seal | 1 |
|
| 13 | 3408502 | Position Sensor | 1 | Cam or Crank |
| 3408517 | Pressure Sensor | 1 | Oil |
| 14 | 3408518 | Pressure Sensor | 1 |
|
| 15 | 3330159 | O-Ring Seal | 1 |
|
| 3085185 | Temperature Sensor | 1 | Intake Manifold |
| 16 | 3085198 | Temperature Sensor | 1 | Intake Manifold |
| 17 | 3331760 | Wiring Retainer Bracket | 1 |
|
| 18 | 4009598 | Wiring Retainer Bracket | 1 |
|
| 19 | 4902720 | Pressure Sensor | 1 | Ambient Air |
| 4002041 | Electronic Fuel Control Valve | 1 |
|
| 3417079 | Electronic Control Pressure Valve | 1 |
|
| 20 | S 2286 | Drive Screw | 2 | 3/16 in. |
| 21 | 105375 | Nameplate | 1 |
|
| 22 | 118226 | Socket Head Cap Screw | 4 | #10 - 24 x 1 1/4 in. |
| 23 | 129768 | Valve Spring | 1 |
|
| 24 | 129839 | Shut-Off Valve Shield | 1 |
|
| 25 | 129888 | Rectangular Ring Seal | 2 |
|
| 26 | 196057 | Valve Disc | 1 |
|
| 27 | 3021420 | Solenoid | 1 |
|
| 28 | 4088863 | Actuator Housing | 1 |
|
| 29 | 4088274 | Actuator Disc | 1 |
|
| 3037536 | Threaded Plug | 3 | 9/16 - 18 UNF |
| 30 | 3040813 | Threaded Plug | 1 | 9/16 - 18 UNF |
| 3081952 | Male Union | 1 |
|
| 31 | 3085825 | Male Union | 1 |
|
| 32 | 3922794 | O-Ring Seal | 1 |
|
| 3081953 | Male Union | 1 |
|
| 32 | 3922794 | O-Ring Seal | 1 |
|
| 33 | 3040817 | O-Ring Seal | 1 |
|
| 34 | 3085826 | Male Union | 1 |
|
| 3081956 | Male Union | 1 |
|
| 35 | 3046943 | O-Ring Seal | 1 |
|
| 36 | 3076102 | O-Ring Seal | 1 |
|
| 37 | 3085829 | Male Union | 1 |
|
| 38 | S 607 | Lock Washer | 4 | #10 |
| 3408519 | Pressure Sensor | 2 | Fuel |
| 39 | 3408520 | Pressure Sensor | 1 |
|
| 3330600 | Electronic Fuel Control Actuator | 1 |
|
| 40 | 3042542 | O-Ring Seal | 1 |
|
| 41 | 3331029 | Electronic Fuel Control Actuator | 1 |
|
| 42 | 3865398 | O-Ring Seal | 1 |
|
| 43 | 3867393 | Filter Screen | 1 |
|
| 3330601 | Electronic Fuel Control Actuator | 1 |
|
| 40 | 3042542 | O-Ring Seal | 1 |
|
| 42 | 3865398 | O-Ring Seal | 1 |
|
| 43 | 3867393 | Filter Screen | 1 |
|
| 44 | 3331030 | Electronic Fuel Control Actuator | 1 |
|
| 3867715 | Control Valve Body | 1 |
|
| 45 | 3867714 | Control Valve Body | 1 |
|
| 46 | 113759 | Threaded Insert | 6 |
|
| 47 | 4921411 | Electronic Control Module | 1 |
|
| 3410098 | Electronic Control Module Wiring Harness | 1 |
|
| 48 | 108478 | Clip | 1 |
|
| 49 | 3654215 | Protective Cover | 2 |
|
| 50 | 3658892 | Electronic Control Module Wiring Harness | 1 |
|
| 51 | 3613253 | Cavity Plug | 3 |
|
| 52 | 3616472 | Connector Wiring Retainer | 1 |
|
| 53 | 3620152 | Electrical Connector | 1 |
|
| 3410097 | Electronic Control Module Wiring Harness | 1 |
|
| 51 | 3613253 | Cavity Plug | 15 |
|
| 52 | 3616472 | Connector Wiring Retainer | 1 |
|
| 53 | 3620152 | Electrical Connector | 1 |
|
| 54 | 3347638 | Protective Cover | 1 |
|
| 55 | 3613536 | Protective Cover | 1 |
|
| 56 | 3613537 | Protective Cover | 1 |
|
| 57 | 3076174 | Protective Cover | 1 |
|
| 58 | 3621305 | Electrical Connector | 1 |
|
| 59 | 3658891 | Electronic Control Module Wiring Harness | 1 |
|
| 60 | 3621306 | Connector Wiring Retainer | 1 |
|
| 3408515 | Pressure Sensor | 1 | Intake Manifold |
| 61 | 3408516 | Pressure Sensor | 1 |
|
| 3865312 | Temperature Sensor | 1 | Coolant Or Oil *. |
| 62 | 3865323 | Temperature Sensor | 1 | Coolant Or Oil *. |
