Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / 3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts
3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts
3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts 3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts
3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts 3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts
3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts 3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts

loading

3408421X Original Cummins ISM QSM11 Diesel Fuel Pump Solenoid Valve Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

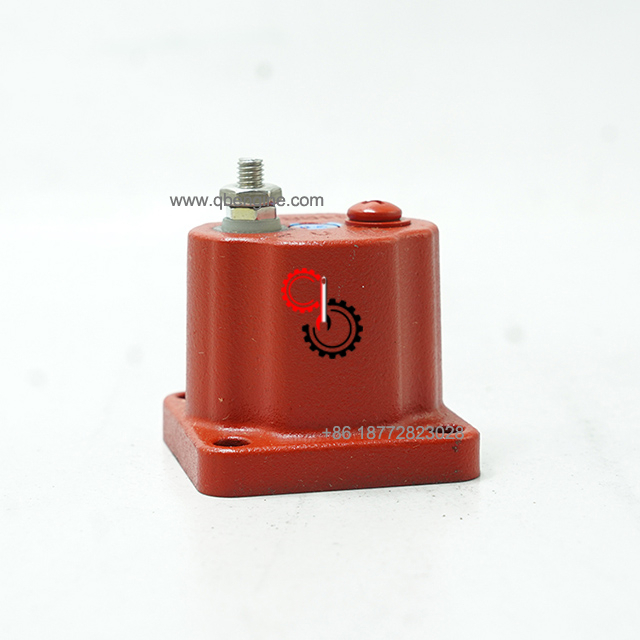

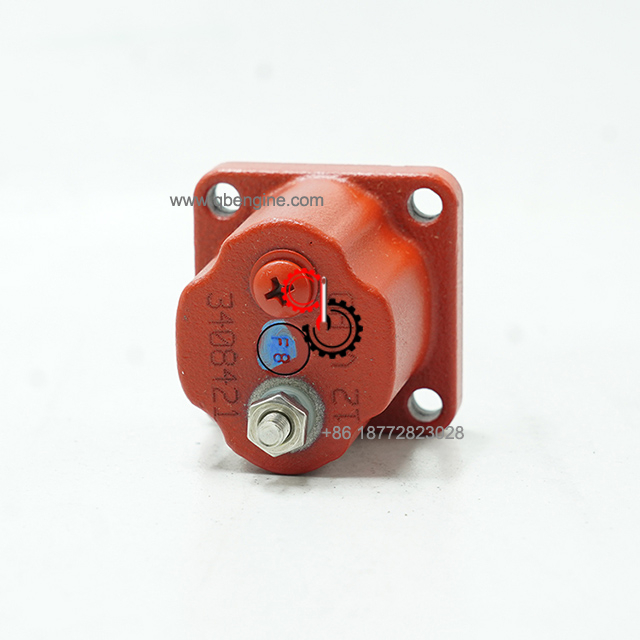

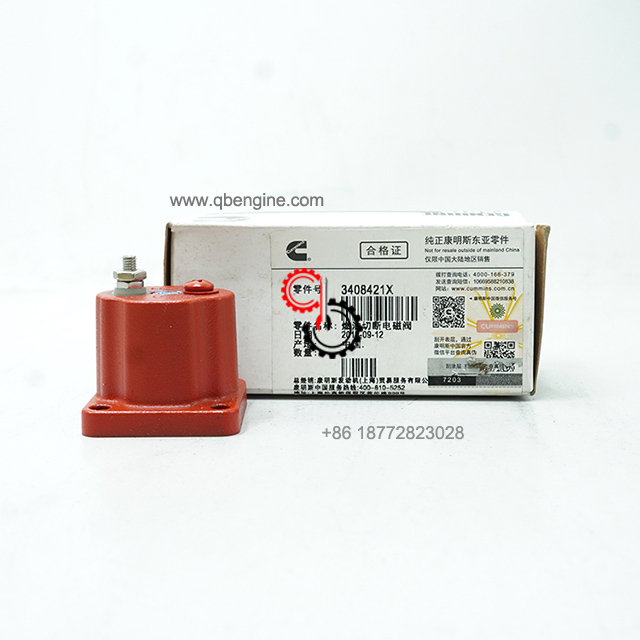

Original Cummins 3408421X ISM QSM11 Fuel Pump Solenoid

  • ISM QSM11

  • Cummins

  • 3408421X

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins 3408421X ISM QSM11 Fuel Pump Solenoid

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

FV2014-02 Fuel Shut-Off Valve

Fuel Pump Type: PTG

Volts: 12

Terminal Provision: Single/Internal Ground

Rapid Restart Included: Yes

Valve Operation Method: Electrical


3408421X

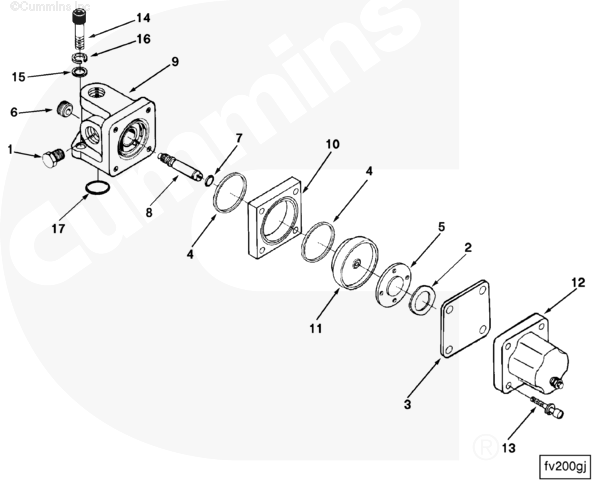

Cart Ref No Part Number Part Description Required Remarks


FV2014-02 Fuel Shut-Off Valve


3023514 Shut-Off Valve 1

1 3025458 Pipe Plug 1 1/8 NPT.
2 129768 Valve Spring 1

3 129839 Shut-Off Valve Shield 1

4 129888 Rectangular Ring Seal 1

5 196057 Valve Disc 1


129886 Fuel Shut-Off Valve Body 1

6 129838 Knob 1

7 3279794 O-Ring Seal 1

8 3000266 Shut-Off Valve Shaft 1

9 129826 Shut-Off Valve Body 1

10 3034451 Actuator Housing 1

11 3034452 Actuator Disc 1

12 3408421 Solenoid 1 Serviced As 4024808.
13 3065944 Captive Washer Cap Screw 4 #10 - 24 X 1 Inch.
14 S 189 C Socket Head Cap Screw 2 1/4 - 20 X 1 3/4 Inch.
15 67684 Plain Washer 2 1/4 Inch.
16 181466 Lock Washer 2 1/4 in.
17 154087 Rectangular Ring Seal 1


4024808 Fuel Solenoid Kit 1


129888 Rectangular Ring Seal 2


3408421 Solenoid 1 Serviced As 4024808.


SHIPMENT CHARACTERISTICS
Length * Width * Height 13cm*6cm*6cm
Weight 0.5kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
