3376015 Cylinder Liner Removal Tool Original Cummins Diesel Engine Parts

Name: 3376015 Cylinder Liner Removal Tool Original Cummins Diesel Engine Parts
Brand: Cummins
Rating: 5.0 (56 reviews)

Original Cummins 3376015 Cylinder Liner Removal Tool

Model:
Original
Brand:
Cummins
Code:
3376015
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

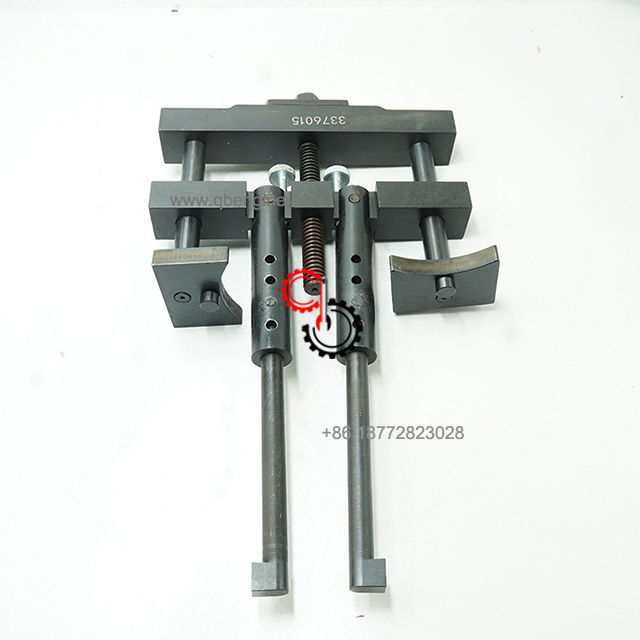

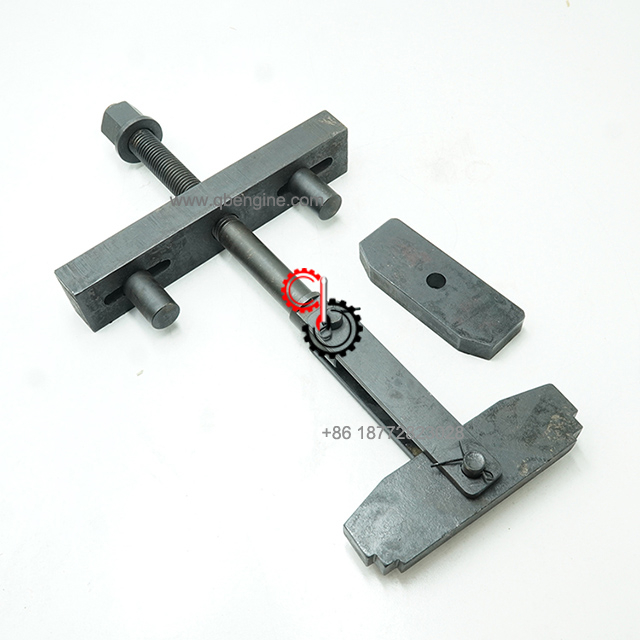

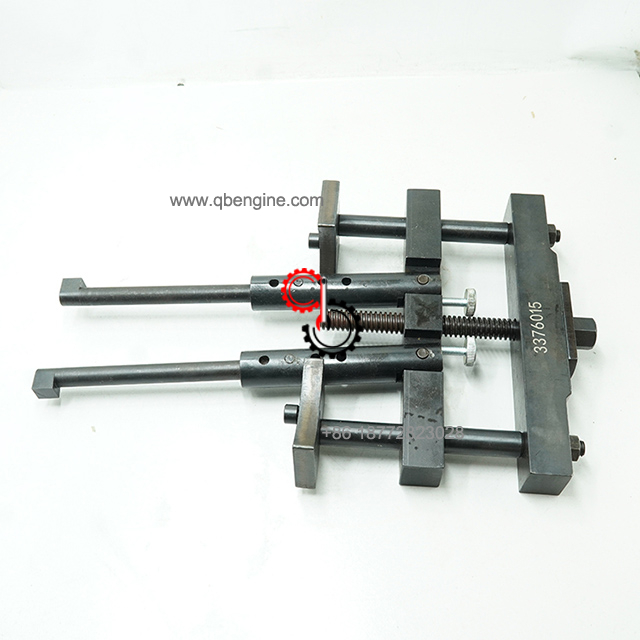

Original Cummins 3376015 Cylinder Liner Removal Tool

Tool 3376015
Liner Puller (Universal)

3376015

Engine Family: All Except B Series and L10/M11
This puller is designed to pull all “wet” liners from 4 inches to 6 ¼ inches bore. This puller is for all Cummins plus Caterpillar engines. The puller can be adapted to Detroit Diesel engines by adding 3376029 Liner Puller Kit.

Note : Use 3823784 Puller Ring when pulling liners when a counterbore repair sleeve has been installed. The ring will hold the repair sleeve in place. Order this item separately.

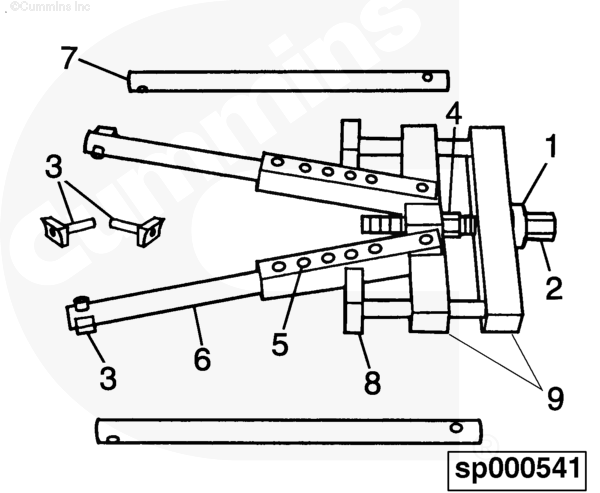

Ref. No.	Part No.	Description
1	3376016	Thrust Bearing Assembly
2	3376017	Special Lifting Bolt
3	**3376018	Arm Extension Foot
4	3376019	Puller Bushing
5	3376020	Holding Pin
6	3376752	Short Arm Extension (9 ½ in.)
7	*3376753	Long Arm Extension (14 ½ in.)
8	3824406	Liner Hold Down Foot (Includes arm, foot, pin)
9	3824407	Top Plate & Lifting Bar Ass'y
	* Optional
	** Contains 1 Foot & 1 capscrew when ordered by itself.

SHIPMENT CHARACTERISTICS
Length * Width * Height	54cm29cm22.5cm
Weight	9.864kg
