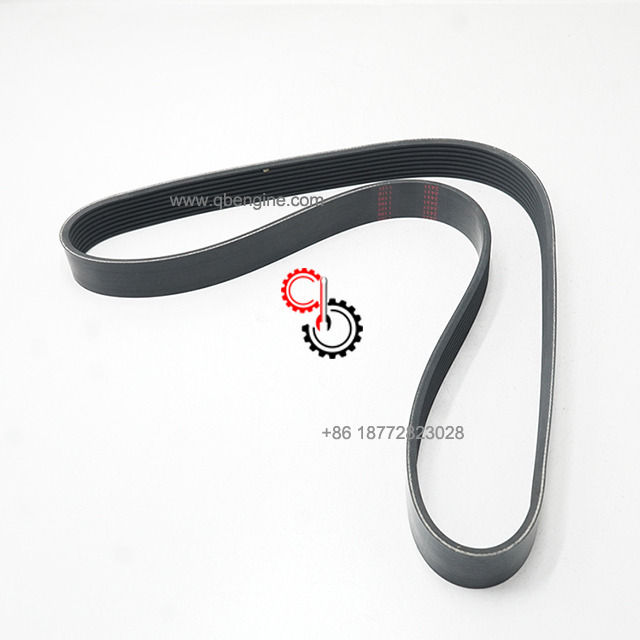

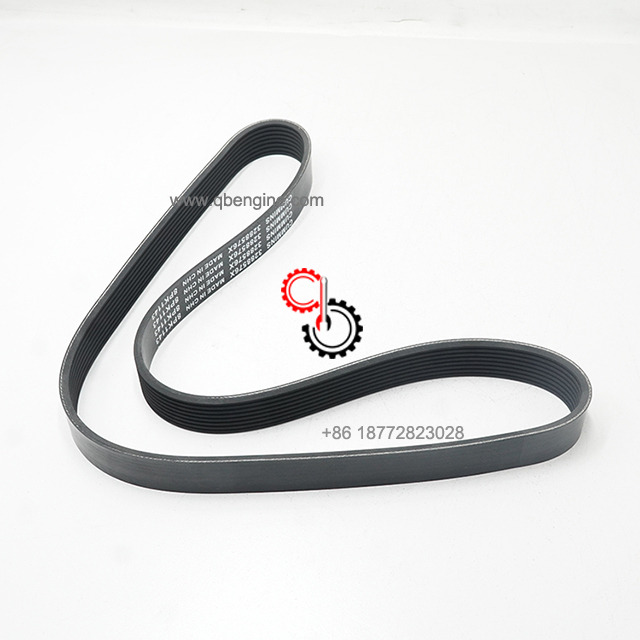

Cummins V Ribbed Belt 3288576

  • Original

  • Cummins

  • 3288576

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins V Ribbed Belt 3288576 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

3288576

Ref No Part Number Part Description Required Remarks

FA2312 Fan Drive
Fan Drive
1 107695 Roll Pin 1
2 3009330 Plain Washer 2 M10.
3 3034319 Regular Hexagon Nut 1 M20 X 1.50.
4 3034320 Plain Washer 1 7/8 Inch.
5 3034836 Hexagon Head Cap Screw 4 M10 X 1.50 X 30.
6 3046206 Fan Pulley 1

3062602 Pulley , Idler Top Level Assembly 1
7 3060884 Idler Pulley Cover 1
8 3062601 O-Ring Seal 1

3892768 Idler Pulley 1
9 3003163 Plain Washer 1 M10.5.
10 3027680 Oil Seal 1
11 3027681 Roller Bearing 1
12 3060883 Idler Pulley 1
13 3335044 Hexagon Head Cap Screw 1 M10 X 1.50 X 25.
14 3819920 Idler Shaft 1

3065358 Fan Hub 1
15 3027675 Oil Seal 1
16 3027676 Fan Hub Shaft 1
17 3027677 Flange 1
18 3027686 Plain Washer 1 M10.
19 3037597 Fan Hub 1
20 3063844 Fan Hub Cover 1
13 3335044 Hexagon Head Cap Screw 1 M10 X 1.50 X 25.
21 3896996 Roller Bearing 1
22 3081348 Hexagon Head Cap Screw 3 M10 x 1.50 x 90.
23 3165622 Fan Support 1
24 3253778 Hexagon Head Cap Screw 1 M10 X 1.50 X 145.
25 3288576 V Ribbed Belt 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 30cm*9cm*3cm
Weight 0.19KG
