Original Cummins L10 M11 3162895 3824106 3824835 Camshaft Gear Remover

  • L10 M11

  • Cummins

  • 3162895 3824106 3824835

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 3162895 3824106 3824835 Cummins Camshaft Gear Remover details

Tool  3162895

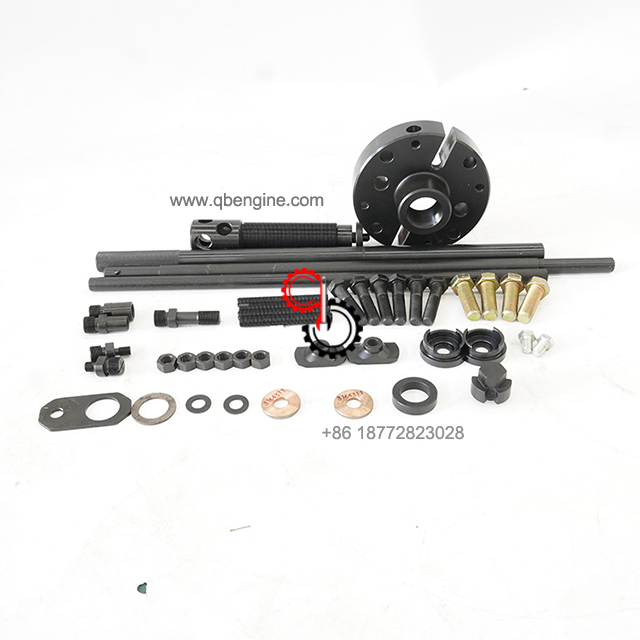

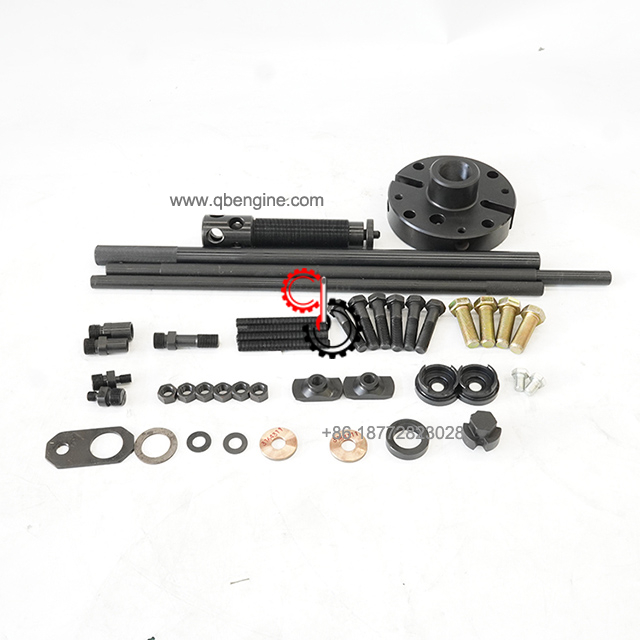

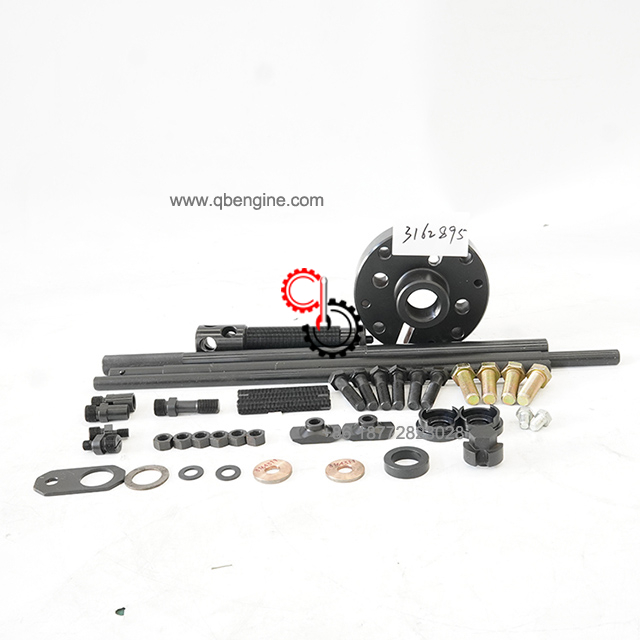

Camshaft Gear Remover Kit

3162895

Engine Family: L10, M11, ISM, QSM, K19, K38, K50, QSK 19/45/60 and QSK78
This is a heavy duty mechanical puller to pull the camshaft “in chassis” without disturbing the overhead assemblies. This puller is designed to fit a wide range of engines and NOT to be used with impact wrenches. Sufficient leverage is obtained with the long extension bar and torque reaction bar provided. A hook eye is provided so that the tool and gear (when removed) can be suspended from a chain hoist, to avoid strain on the operator.
Note : The jaw remover is also suitable for the old version of cam gears used on L-10/M-11 engines and can be used with obsolete pullers 3824900 & 3376400.

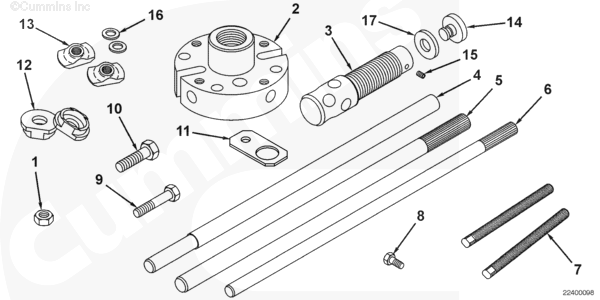

Ref. No. Part No. Description
1 3164357 Regular hex nut, 9/16-18 UNF (6 required)
2 3162997 Remover plate
3 3162998 Remover screw
4 3164310 Handle
5 3164308 Handle
6 3164309 Handle
7 3164362 Stud, 9/16-18 UNF (4 required)
8 3164358 Hex head capscrew, 1/2-13 UNC X 0.75 (2 required)
9 3164359 Hex head capscrew, M16 X 2-70-mm (6 required)
10 3164360 Hex head capscrew, 3/4-16 UNF X 2-1/4 (4 required)
11 3164314 Plate
12 3163742 Retainer
13 3163550 Remover jaw
14 3164313 Remover jaw adapter
15 3164312 Socket setscrew
16 S-689 Plain washer
17 3164311 Thrust washer (2 required)


SHIPMENT CHARACTERISTICS
Length * Width * Height 39.2cm*6.1cm*17.1cm
Weight 17.1kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
