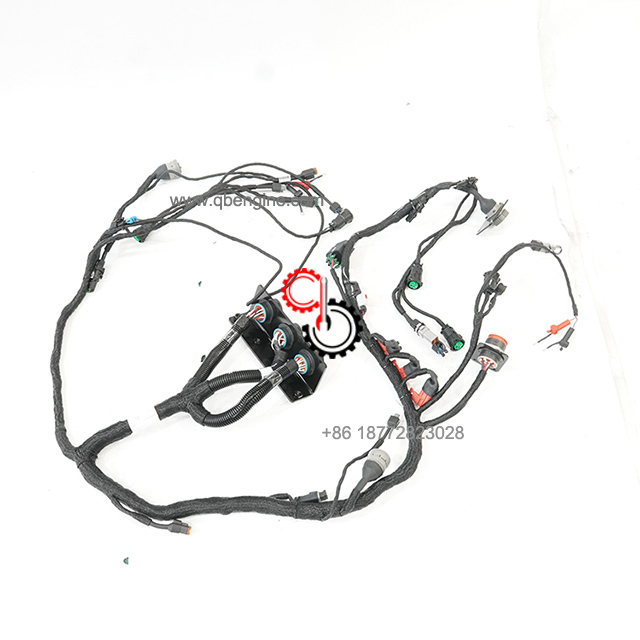

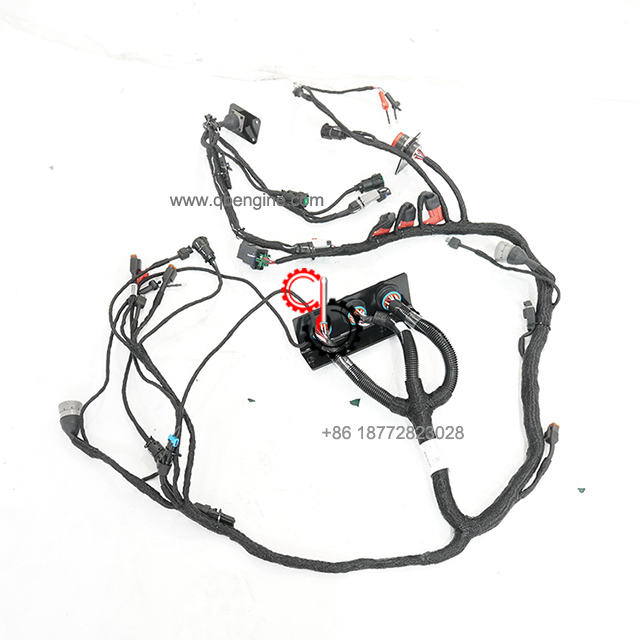

Original Cummins 3093696 QST30-G3 QST30-G4 QST30-G5 Wiring Harness

  • QST30-G3 QST30-G4 QST30-G5

  • Cummins

  • 3093696

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Original Cummins 3093696 QST30-G3 QST30-G4 QST30-G5 Wiring Harness

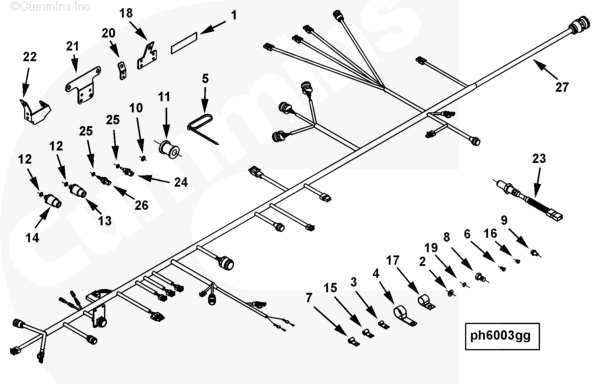

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts QST30 CM2350 T101, QST30 CM552, QST30 CM850

PH5732-01 Engine Control Module

Customer supplied ambient air pressure sensor included: Yes

Intake manifold temp sensor manufact: High-stat

Note: For Cummins Power Generation Only.

3093696

Cart Ref No Part Number Part Description Required Remarks


PH5732-01 Engine Control Module
Engine control module...(More)
1 3609867 Dataplate 1

2 S 622 Plain Washer 4 3/8 in.
3 68152A Clip 1

4 3016478 Clip 1

5 3076301 Wire Tie Clamp 24

6 3092246 Round Head Cap Screw 4

7 3092388 Clip 1

8 3093751 Hexagon Head Cap Screw 1 M12 x 1.75 x 20.
9 3093930 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 16.
10 3094024 Plain Washer 4

11 3094088 Wear Pad 2


3408556 Pressure Sensor 4 Coolant or Intake Manifold
12 3330202 O-Ring Seal 1

13 3408557 Pressure Sensor 1


3408560 Pressure Sensor 3 Oil.
12 3330202 O-Ring Seal 1

14 3408561 Pressure Sensor 1

15 3600861 Clip 3

16 3609872 Wire Tie Clamp Retainer 26

17 3821556 Clip 3


4068210 Brackets , Aftercooler ( Right ) 1

18 3092432 Wiring Retainer Bracket 2

19 3093799 Plain Washer 20 11mm
20 4068655 Wiring Retainer Bracket 2


4068211 Brackets , Aftercooler ( Left ) 1

21 3092245 Wiring Retainer Bracket 1

22 3092430 Wiring Retainer Bracket 1

23 3408472 Speed Sensor 1 Flywheel.

3865346 Temperature Sensor 3 Coolant Or Oil Or Fuel.
24 3096153 Temperature Sensor 1 Coolant or Oil
25 4921574 O-Ring Seal 1


4088832 Temperature Sensor 2 Coolant or Intake Manifold
26 4088833 Temperature Sensor 1 Coolant or Intake Manifold
27 3093696 Wiring Harness 1

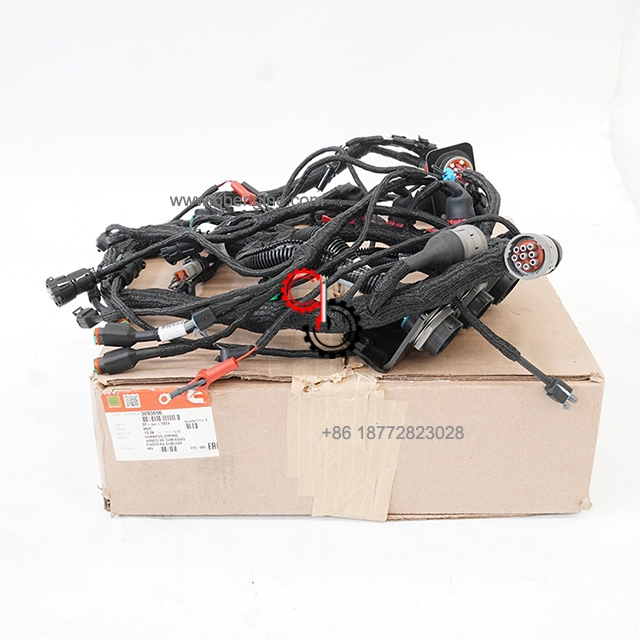

SHIPMENT CHARACTERISTICS
Length * Width * Height 45cm*45cm*12cm
Weight 5.933kg


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
