Cummins QST30 Wiring Harnesses 3093060


  • QST30

  • Cummins

  • 3093060

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QST30 Wiring Harnesses 3093060 In Stock

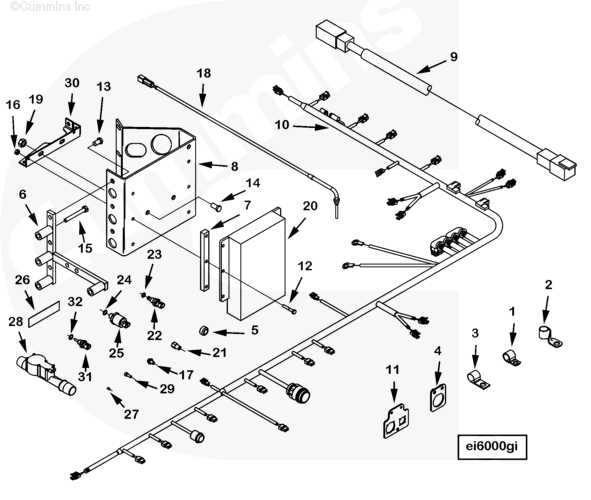

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  QST30 CM2350 T101, QST30 CM552, QST30 CM850

3093060

Cart Ref No Part Number Part Description Required Remarks


EI5707 Electronic Engine Monitor

1 69465 Clip 2

2 152767 Clip 1

3 204263 Clip 2

4 3092052 Wiring Retainer Bracket 1

5 3092080 Boss 1

6 3092793 Retaining Brace Bracket 1

7 3092794 Mounting Spacer 2

8 3092796 Electronic Control Module Bracket 1

9 3093060 Wiring Harness 1

10 3093097 Electronic Control Module Wiring  Harness 1

11 3093351 Wiring Retainer Bracket 1

12 3093735 Hexagon Head Cap Screw 6 M06 x 1.00 x 35.
13 3093741 Hexagon Head Cap Screw 5 M10 x 1.50 x 16.
14 3093742 Hexagon Head Cap Screw 4 M10 x 1.50 x 20.
15 3093749 Hexagon Head Cap Screw 4 M10 x 1.50 x 80.
16 3093946 Regular Hexagon Nut 6 M6 x 1.00
17 3093956 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 12.
18 3094868 Temperature Sensor 12 Exhaust gas.
19 3094937 Regular Hexagon Nut 4 M10 x 1.50
20 3098771 Electronic Control Module 1

21 3329545 Female Connector 12


3408345 Temperature Sensor 1 Coolant or Intake Manifold
22 3408346 Temperature Sensor 1

23 4921574 O-Ring Seal 1


3408587 Pressure Sensor 1 Oil.
24 3330202 O-Ring Seal 1

25 3408588 Pressure Sensor 1

26 3609867 Dataplate 1

27 3658456 Socket Head Cap Screw 4

28 3867561 Blowby Flow Sensor 1 Blowby flow.
29 3906391 Socket Head Cap Screw 2 M6 X 1.00 X 16.
30 4295596 Module Bracket 1

31 4954905 Temperature Sensor 1 Coolant Or Fuel Or Oil.
32 4010519 O-Ring Seal 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 12.7cm*3cm*13cm
Weight 0.04
