3081869 Genuine Cummins QSK19 Air Crossover Connection Industrial Diesel Engine Parts

3081869 Genuine Cummins QSK19 Air Crossover Connection Industrial Diesel Engine Parts

Name: 3081869 Genuine Cummins QSK19 Air Crossover Connection Industrial Diesel Engine Parts
Brand: Cummins
Rating: 5.0 (24 reviews)

Genuine Cummins QSK19 Air Crossover Connection 3081869

Model:
QSK19
Brand:
Cummins
Code:
3081869
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

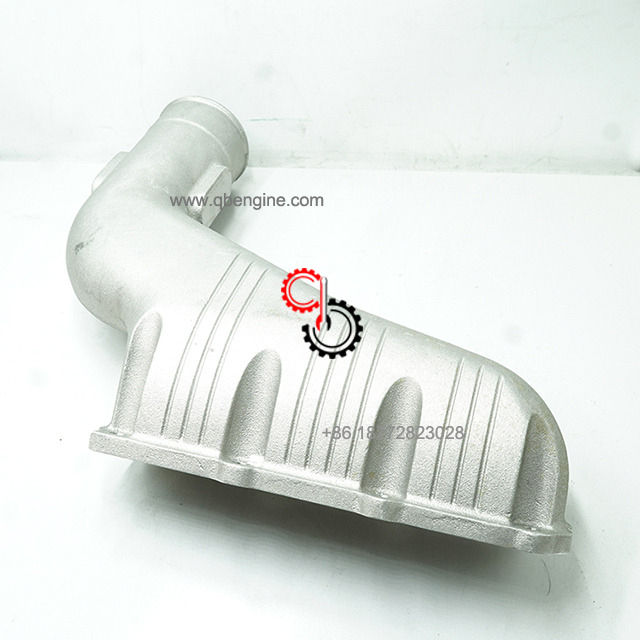

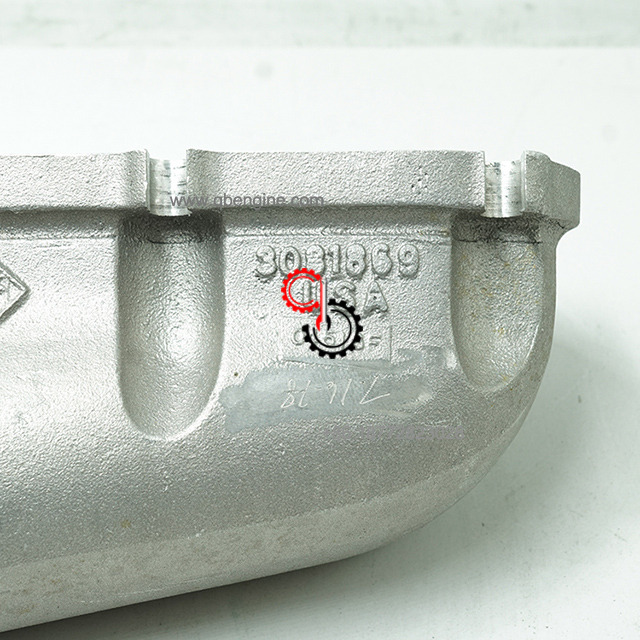

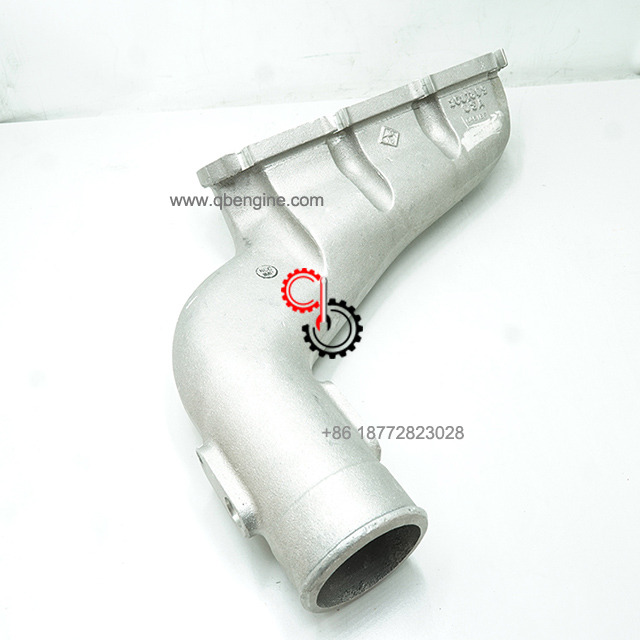

Genuine Cummins QSK19 Air Crossover Connection 3081869 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

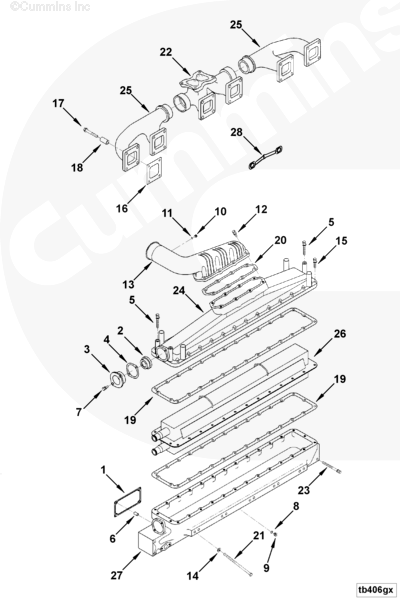

TB4055-07 Turbocharger Arrangement

Turbo Mounting Location: High

Direction of Exhaust: Rear Out

Compressor Housing Rotatable: Yes

Water Cooled Turbine Casing: No

Water Cooled Bearing Housing: Yes

Water Cooled Exhaust Manifold: No

Aspiration: Turbocharged Aftercooled

Crossover Location: Over #2 Valve Cover

3081869

Cart	Ref No	Part Number	Part Description	Required	Remarks
		TB4055-07	Turbocharger Arrangement		Turbocharger Arrangement...(More)
1	3637396	Intake Manifold Gasket	6
2	206808	Grommet Seal	2
3	3001301	Seal Retainer	2
4	3001305	Connection Gasket	2
5	3011829	Captive Washer Cap Screw	3	3/8 - 16 x 4 7/8 in
6	3014304	Rectangular Ring Seal	12
7	3014766	Captive Washer Cap Screw	4	3/8 - 16 x 1 3/64 in.
	3037536	Threaded Plug	1	9/16 - 18 UNF
8	3037537	O-Ring Seal	1
9	3040813	Threaded Plug	1	9/16 - 18 UNF
	3811979		1
	3040814	Threaded Plug	1	7/16 - 20 UNF
10	3036665	Threaded Plug	1	7/16 - 20 UNF
11	3036666	O-Ring Seal	1
12	3040838	Captive Washer Cap Screw	8	3/8 - 16 x 1 1/4 in.
13	3081869	Air Crossover Connection	1
14	3042329	Plain Washer	10	3/8 in.
15	3060567	Captive Washer Cap Screw	26	3/8 - 16 x 2 3/4 in.
16	3043097	Exhaust Manifold Gasket	6
17	3046283	Hexagon Flange Head Cap Screw	24	7/16 - 14 x 3 in.
18	3046286	Mounting Spacer	20
19	3079883	Aftercooler Housing Gasket	2
20	3090299	Aftercooler Cover Gasket	1
21	3408212	Hexagon Head Cap Screw	10
22	4098955	Exhaust Manifold	1
23	3040839	Captive Washer Cap Screw	14	3/8 - 16 x 4 3/4 in.
24	3096367	Aftercooler Cover	1
25	4098953	Exhaust Manifold	2
26	4910356	Aftercooler Core	1
27	4308235	Aftercooler Housing	1
28	4910302	Lock Plate	12

SHIPMENT CHARACTERISTICS
Length * Width * Height	59cm34cm20cm
Weight	4.5KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

3081869 engine air crossover connection QSK19 3081869 Intake pipe air intake pipe Inlet pipe intake pipe cummins QSK19 Intake pipe Intake pipe 3081869 cummins intake pipe

Our rich experience in Cummins engines and spare parts makes us a reliable supplier at home and abroad.
