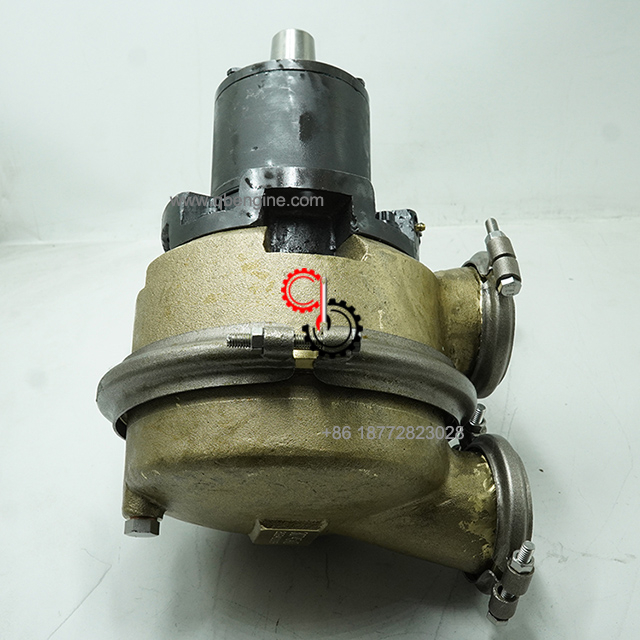

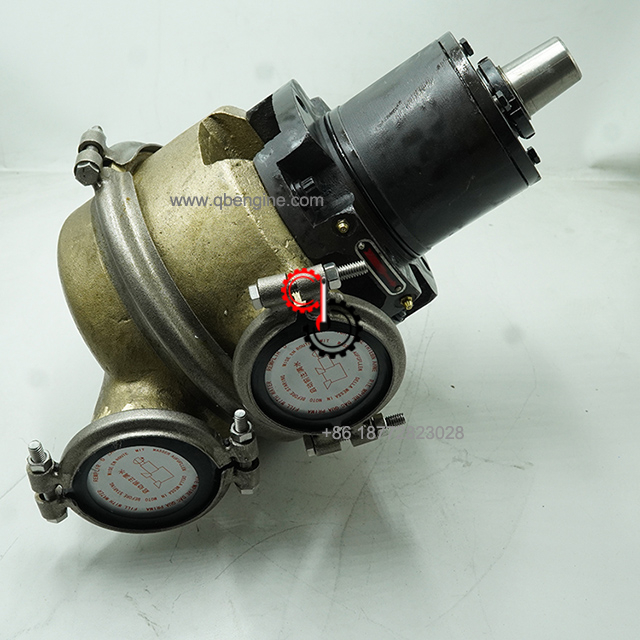

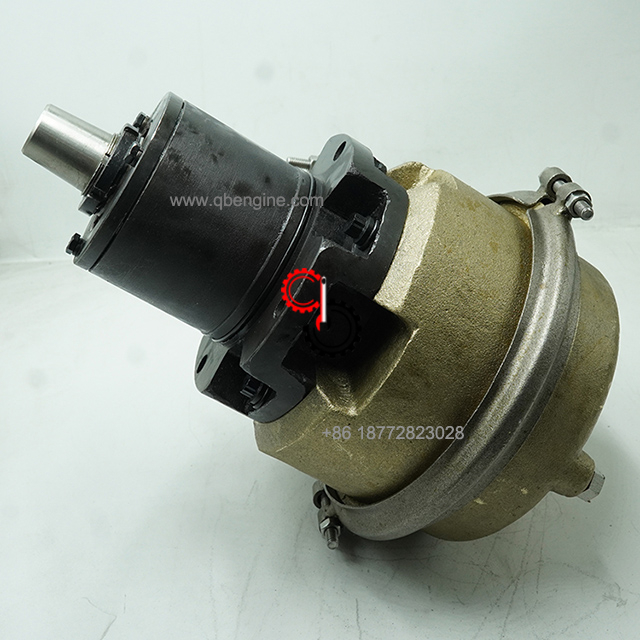

Genuine Cummins 3074540 3049158 KT19-M Sea Water Pump

  • KT19-M

  • Cummins

  • 3074540 3049158

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Supersessions Part Number 3074540 3049158 Cummins Sea Water Pump details

Electronic Parts Catalogue - Option Detail
Cummins Engines Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

SW4006 Water Pump

Gilmec heavy duty raw water pump model 250/700.

Driven at engine speed, cap 125 USGPW.

Grease lubricated brgs.

This option used with customer supplied remote header tank & heat exchanger.

3074540

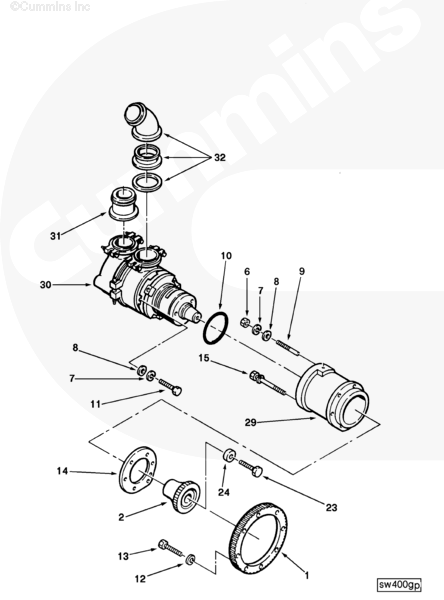

Cart Ref No Part Number Part Description Required Remarks


SW4006 Water Pump
Gilmec heavy duty raw water...(More)
1 3008840 Accessory Drive Gear


2 3008841 Sea Water Pump Gear 1

6 S 231 Regular Hexagon Nut 1 7/16 - 20 UNF.
7 S 610 Lock Washer 4 7/16 in.
8 S 622 Plain Washer 4 3/8 in.
9 9740 Stud 1

10 145592 O-Ring Seal 1

11 185804 Hexagon Head Cap Screw 3 7/16 - 14 X 1 3/8 in.
12 S 605 Lock Washer 8 5/16 in.
13 212535 Twelve Point Cap Screw 8 5/16 - 18 X 1"
14 3008869 Sea Water Pump Gasket 1

15 3010596 Captive Washer Cap Screw 6 3/8 - 16 x 1 1/4 in.
23 177020 Hexagon Head Cap Screw 1 3/8 - 16 X 2 1/2"
24 3010708 Plain Washer 1

29 3034483 Sea Water Pump Support 1

30 3074540 Sea Water Pump 1 Recon equivalent 3074540 RX
31 3050954 Sea Water Connection 1

32 3200884 Sea Water Connection 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 42cm*28cm*28cm
Weight 30.391kg
