Dipstick Location: Front Oil Pan Adapter Boss Fuel Pump Side
Dipstick Pull Location
From Engine CL (mm): 395(15.55 in)
From CCL (mm): 168.7(6.64 in)
FFOB (mm): -996.9 (39.25 in)
Power Angle (Deg): 0
Power Tilt (Deg): 0
Compatible Sump
Locations/Profiles: Shallow Center, Shallow Rear
High Oil Pan Capacity (ltr): 38 (10 gal)
Low Oil Pan Capacity (ltr): 32.3 (8.5 gal)
Calibrated for Rear Gear
Drive: No
Dip Tube Length (mm): 363.2 (14.3 in)
tube length (mm): 363.2 (14.3in).
Cart

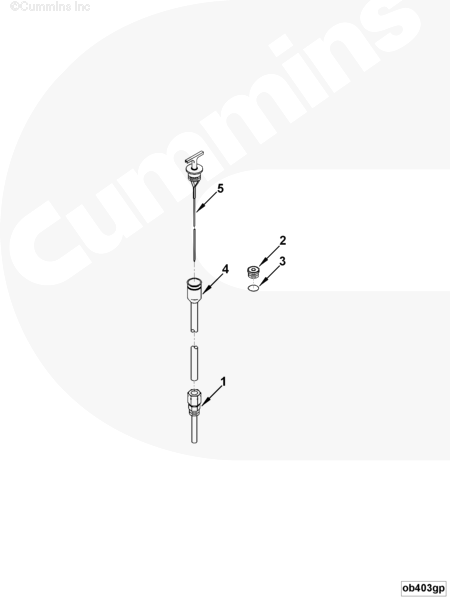

Ref No
Part Number
Part Description
Required
Remarks
LG4840-01
Oil Level Gauge
Oil Level Gauge...(More)
1
3000508
Oil Gauge Tube
1
3046202
Threaded Plug
2
3/4 - 16 UNF.
2
3040810
Threaded Plug
1
3
3046201
O-Ring Seal
1
4
3064810
Oil Gauge Tube
1
5
3077112
Dipstick
1
SHIPMENT CHARACTERISTICS
Length * Width * Height
3cm*3cm*2cm
Weight
0.1KG
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.

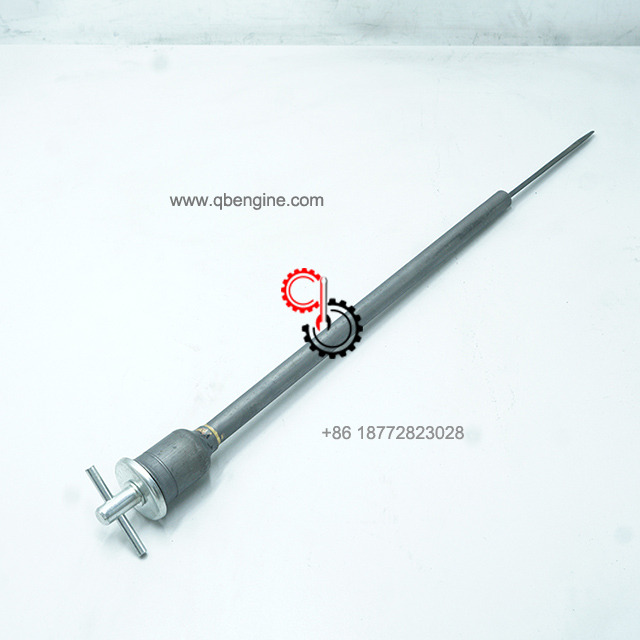

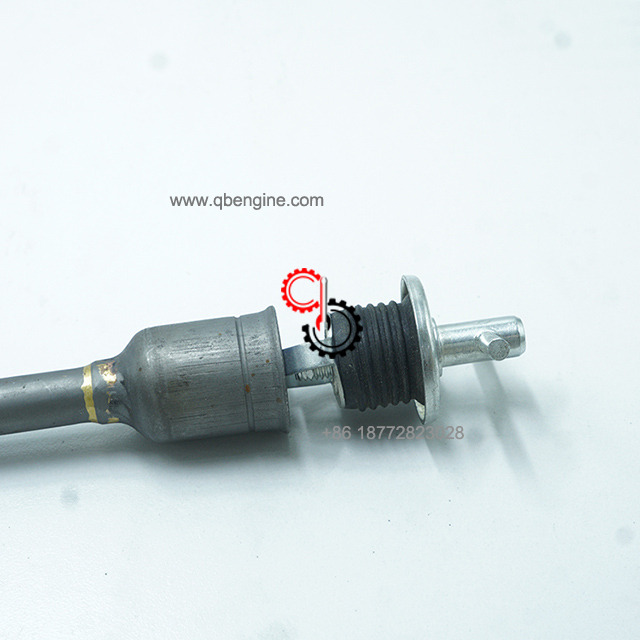

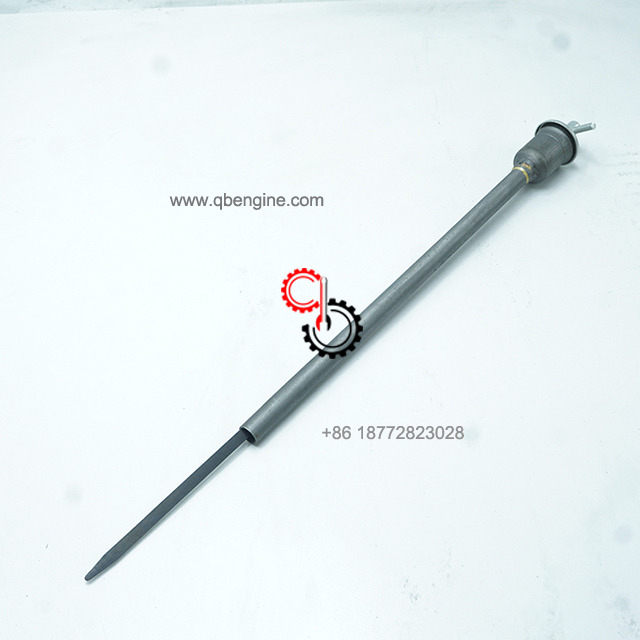

Genuine Cummins K19 Oil Gauge Tube 3064810 3077112 In Stock
