K19 K38 K50
Cummins
3053478 3049437 AR-12258 3013300
1-7 days
Genuine Original package or Ne
6 Months
Availability: | |
---|---|
Quantity: | |
PDF Export | |

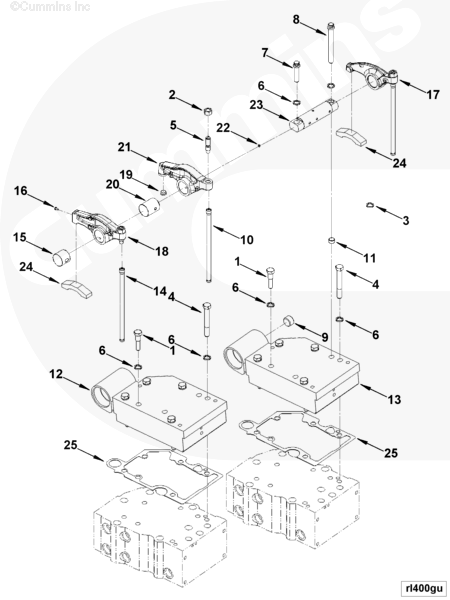

Electronic Parts Catalogue - Option Detail | ||||
Cummins Engines | Cummins Engine Parts K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |
Cart | Ref No | Part Number | Part Description | Required | Remarks |
RL4716 | Rocker Lever | Rocker Lever | |||
1 | S 125 | Hexagon Head Cap Screw | 6 | 1/2 - 13 x 2 in. | |
2 | S 212 | Regular Hexagon Nut | 18 | 1/2 - 20 UNF. | |
3 | 70704 | Plain Washer | 6 | 1/4 in. | |
4 | 108602 | Hexagon Head Cap Screw | 30 | 1/2 - 13 X 3 3/4 in. | |
5 | 168306 | Slotted Set Screw | 18 | ||
6 | 205128 | Plain Washer | 48 | 1/2 in. | |
7 | 205393 | Twelve Point Cap Screw | 6 | 1/2 - 13 X 2 in. | |
8 | 205394 | Twelve Point Cap Screw | 6 | 1/2 - 13 X 4 1/2 in. | |
9 | 3008469 | Pipe Plug | 1 | 3/4 NPT | |
10 | 3017961 | Push Rod | 6 | ||
3039097 | Rocker Lever Housing Assembly | 5 | |||
11 | 205129 | Ring Dowel | 1 | ||
12 | 3177713 | Rocker Lever Housing | 1 | ||
3039100 | Rocker Lever Housing | 1 | Purchase Lower Level Parts | ||
11 | 205129 | Ring Dowel | 1 | ||
13 | 3202198 | Rocker Lever Housing | 1 | ||
14 | 3057139 | Push Rod | 12 | ||
3065810 | Rocker Levers | 6 | Purchase Lower Level Parts | ||
3053476 | Rocker Lever | 1 | |||
15 | 207344 | Bushing | 1 | ||
16 | 208084 | Rivet | 1 | ||
17 | 3049438 | Rocker Lever | 1 | Purchase 3053476 | |
3053477 | Rocker Lever | 1 | |||
18 | 3049432 | Rocker Lever | 1 | Purchase 3053477 | |

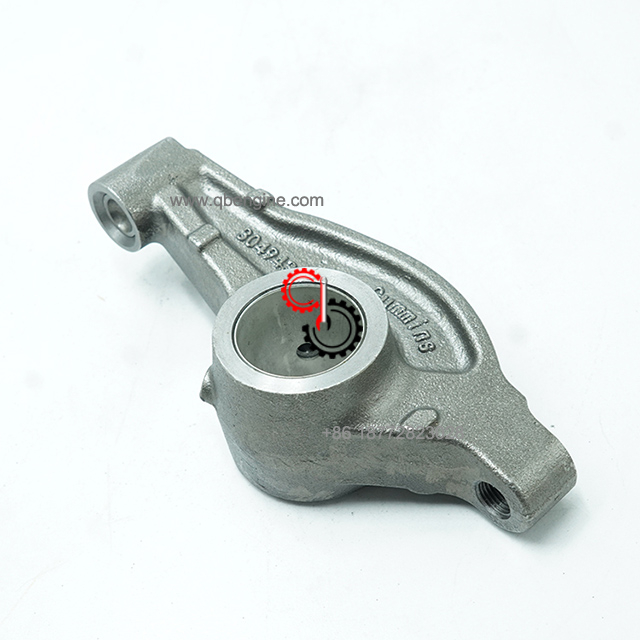

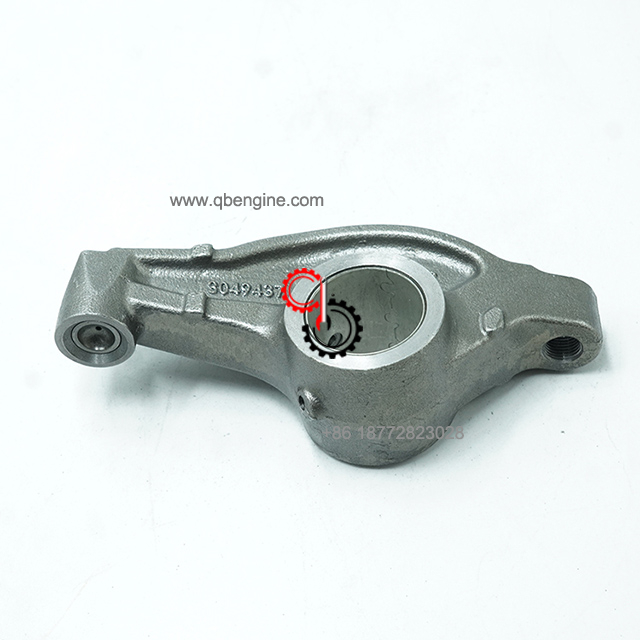

3053478 | Rocker Lever | 1 | |||
19 | 194037 | Rocker Lever Socket | 1 | ||
20 | 207226 | Bushing | 1 | ||

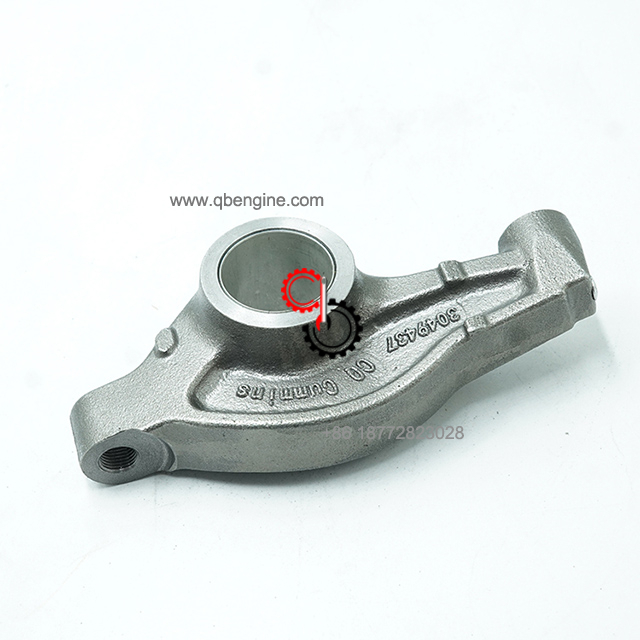

21 | 3049437 | Rocker Lever | 1 | Purchase 3053478 | |
3176773 | Rocker Lever Shaft | 1 | |||
22 | 203933 | Expansion Plug | 1 | ||
23 | 3176875 | Rocker Lever Shaft | 1 | Purchase 3176773 | |
24 | 3086362 | Valve Crosshead | 12 | ||
25 | 3630839 | Rocker Lever Housing Gasket | 6 |
SHIPMENT CHARACTERISTICS | |
Length * Width * Height | 10cm*6cm*20cm |
Weight | 1.179kg |
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
